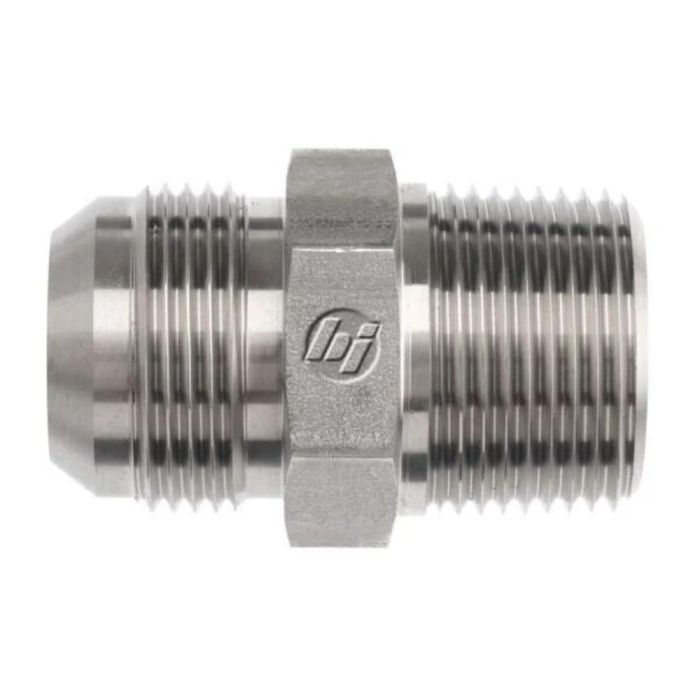

ADAPTOR MJ-MP 5/16 X 1/8
05MJ-02MP STRAIGHT
THREAD B1 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 1/2-20
THREAD B1 DRILL IN 0.234
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE MALE NPTF
THREAD B2 SIZE 1/8-27
THREAD B2 DRILL IN 0.188
THREAD B2 SPECIFICATION SAE J476
BODY HEX IN 0.562
OVERALL LENGTH L IN 1.220
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT LBS 0.0413
MAXIMUM DYNAMIC PRESSURE PSI
THREAD B1 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 1/2-20
THREAD B1 DRILL IN 0.234
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE MALE NPTF
THREAD B2 SIZE 1/8-27
THREAD B2 DRILL IN 0.188
THREAD B2 SPECIFICATION SAE J476
BODY HEX IN 0.562
OVERALL LENGTH L IN 1.220
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT LBS 0.0413
MAXIMUM DYNAMIC PRESSURE PSI
In stock
Only 290 left
SKU
BREN-24040502
| SKU | BREN-24040502 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | BRENNAN |
