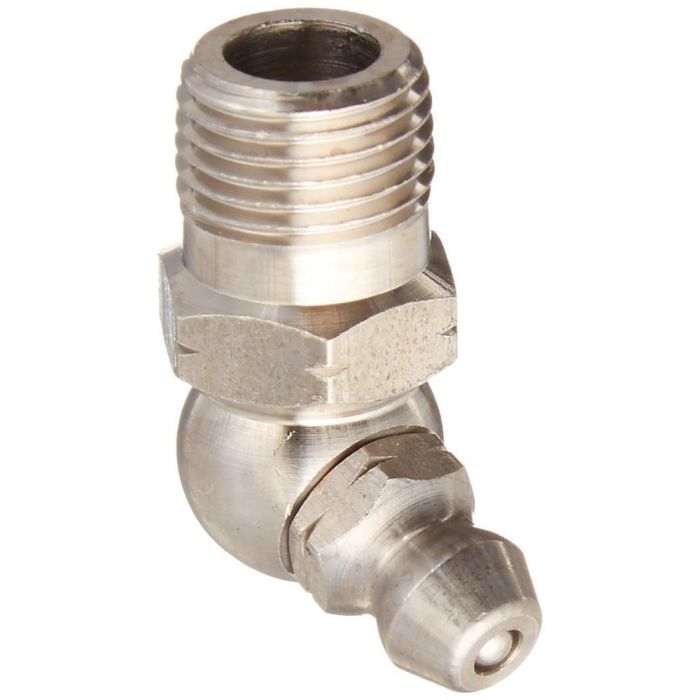

ALEMITE 1922-S NON-CORROSIVE FITTING, 67 1/2 DEGREE ANGLE, STAINLESS STEEL, 1/8" PTF, 61/64" OAL, 11/32" SHANK LENGTH, 7/16" HEX, 1/8" PTF
PRODUCT FEATURES
Stainless steel for durability and resistance to corrosion, including harsh chemical environments and marine applications
Temperature range of subzero to 600 degrees F/315 degrees C
Angle of 67.5 degrees for easier access to fitting
7/16" hex size
Overall length of 61/64"
Stainless steel for durability and resistance to corrosion, including harsh chemical environments and marine applications
Temperature range of subzero to 600 degrees F/315 degrees C
Angle of 67.5 degrees for easier access to fitting
7/16" hex size
Overall length of 61/64"
In stock
Only 1 left
SKU
ALM-1922-5
TTD71.35
PRODUCT DESCRIPTION
This Alemite 1922-S non-corrosive, stainless steel fitting has a 67-1/2 degree angle, an overall length of 61/64", a shank length of 11/32" with a hex size of 7/16" hex and a 1/8" PTF SAE Spl SP short end. The stainless steel construction makes it durable and resistant to corrosion in harsh chemical environments and marine applications. This fitting has an operating temperature range from subzero to 600 degrees F/315 degrees C, and its 1/8" PTF (Pipe Thread Fuel) SAE Spl short threading is for use with industrial machines and heavy equipment. It also has a check ball to keep dirt out. This grease fitting holds in lubrication in the assembly being lubricated and is used for applications such as lubricating motor vehicles, construction and industrial equipment, and aeronautics.
TECHNICAL SPECIFICATIONS
Brand: Alemite®
Hex Size: 7/16
Material: Stainless Steel
Overall Length: 61/64
Shank Length: 11/32
Thread Size: 1/8 in PTF
Type: 67.5 deg
This Alemite 1922-S non-corrosive, stainless steel fitting has a 67-1/2 degree angle, an overall length of 61/64", a shank length of 11/32" with a hex size of 7/16" hex and a 1/8" PTF SAE Spl SP short end. The stainless steel construction makes it durable and resistant to corrosion in harsh chemical environments and marine applications. This fitting has an operating temperature range from subzero to 600 degrees F/315 degrees C, and its 1/8" PTF (Pipe Thread Fuel) SAE Spl short threading is for use with industrial machines and heavy equipment. It also has a check ball to keep dirt out. This grease fitting holds in lubrication in the assembly being lubricated and is used for applications such as lubricating motor vehicles, construction and industrial equipment, and aeronautics.
TECHNICAL SPECIFICATIONS
Brand: Alemite®
Hex Size: 7/16
Material: Stainless Steel
Overall Length: 61/64
Shank Length: 11/32
Thread Size: 1/8 in PTF
Type: 67.5 deg
| SKU | ALM-1922-5 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | ALEMITE |
