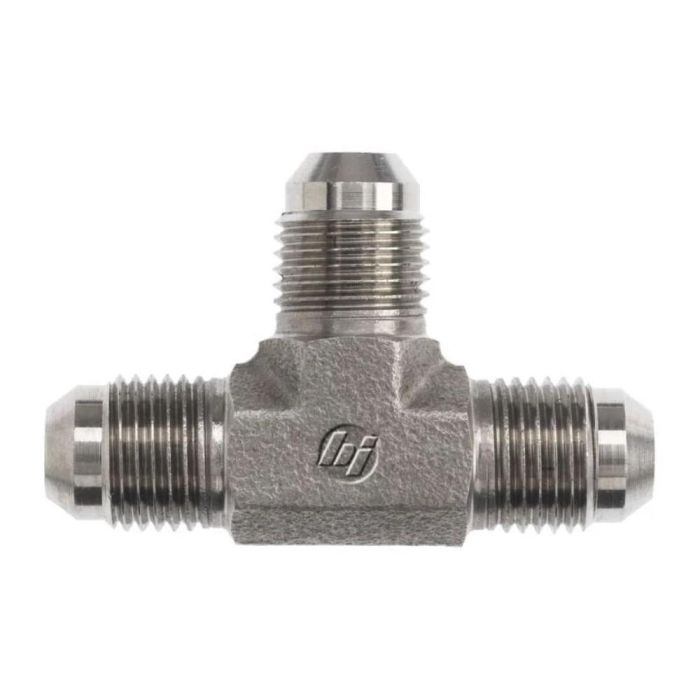

TEE 1/4" MALE JIC X 1/4" MALE JIC X 1/4" MALE JIC
THREAD B1 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 7/16-20
THREAD B1 DRILL IN 0.172
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE 7/16-20
THREAD B2 DRILL IN 0.172
THREAD B2 SPECIFICATION SAE J514
THREAD 3 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE 7/16-20
THREAD 3 DRILL IN 0.172
THREAD 3 SPECIFICATION SAE J514
BODY HEX IN 0.438
OVERALL LENGTH L IN 1.780
OVERALL LENGTH L2 IN 0.890
CENTERLINE LENGTH M IN 0.890
CENTERLINE LENGTH M2 IN 0.890
SHAPE TEE
BODY MATERIAL STEEL
RAW MATERIAL TYPE STEEL FORGING
PLATING CR3
WEIGHT LBS 0.07
MAXIMUM DYNAMIC PRESSURE PSI 7,500
THREAD B1 SIZE 7/16-20
THREAD B1 DRILL IN 0.172
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE 7/16-20
THREAD B2 DRILL IN 0.172
THREAD B2 SPECIFICATION SAE J514
THREAD 3 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE 7/16-20
THREAD 3 DRILL IN 0.172
THREAD 3 SPECIFICATION SAE J514
BODY HEX IN 0.438
OVERALL LENGTH L IN 1.780
OVERALL LENGTH L2 IN 0.890
CENTERLINE LENGTH M IN 0.890
CENTERLINE LENGTH M2 IN 0.890
SHAPE TEE
BODY MATERIAL STEEL
RAW MATERIAL TYPE STEEL FORGING
PLATING CR3
WEIGHT LBS 0.07
MAXIMUM DYNAMIC PRESSURE PSI 7,500
In stock
Only 56 left
SKU
BREN-260304044
| SKU | BREN-260304044 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | BRENNAN |
