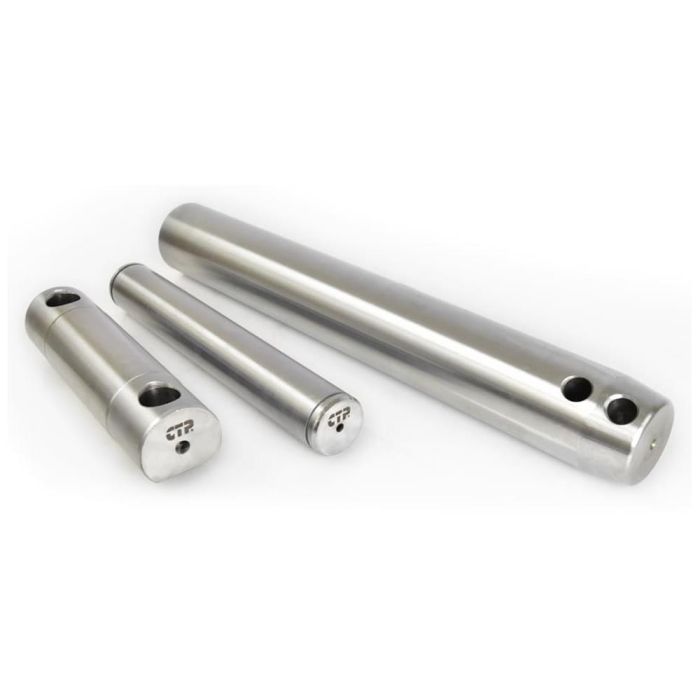

CHROME BUCKET LINK PIN 79.85MM DIA X 543MM LENGTH
Information:
EFFECTIVE LENGTH 543 mm
HEAD OD 0 mm
OVERALL LENGTH 593 mm
PIN OD 79.85 mm
TRANSV HOLES Y
DETENT BALL N
END TYPE A CHAMFER
END TYPE B LEAD TAPER
GROOVE N
HAND RING N
HEAD THICKNESS 0
KEEPER SLOT N
LUBE OUTLETS N
COATING/PLATING 1E0586
THREAD SIZE MAX M30X3.5
EFFECTIVE LENGTH 543 mm
HEAD OD 0 mm
OVERALL LENGTH 593 mm
PIN OD 79.85 mm
TRANSV HOLES Y
DETENT BALL N
END TYPE A CHAMFER
END TYPE B LEAD TAPER
GROOVE N
HAND RING N
HEAD THICKNESS 0
KEEPER SLOT N
LUBE OUTLETS N
COATING/PLATING 1E0586
THREAD SIZE MAX M30X3.5
In stock
Only 12 left
SKU
CTP-7Y2357
TTD2,290.49
The internal hardness of the new CTP Pins is thicker to ensure better resistance and longer life. They are manufactured with alloy steel, and are put through an induction hardness procedure that makes the pin more resistant to extreme wear and prevents corrosion. Our pins feature:
Induction harden zone HRC 56 min to depth 1mm
Minimum core hardness HRC 22 to 25
0.02 to 0.03mm layer of chrome coating on all surfaces of the pin
Material 42CrMo and 35CrMo
Induction harden zone HRC 56 min to depth 1mm
Minimum core hardness HRC 22 to 25
0.02 to 0.03mm layer of chrome coating on all surfaces of the pin
Material 42CrMo and 35CrMo
| SKU | CTP-7Y2357 |
|---|---|
| Weight | 49.000000 |
| Manufacturer | COSTEX TRACTOR PARTS |
