ROD 5/32"E8018-B6(502-16)
PRODUCT FEATURES:

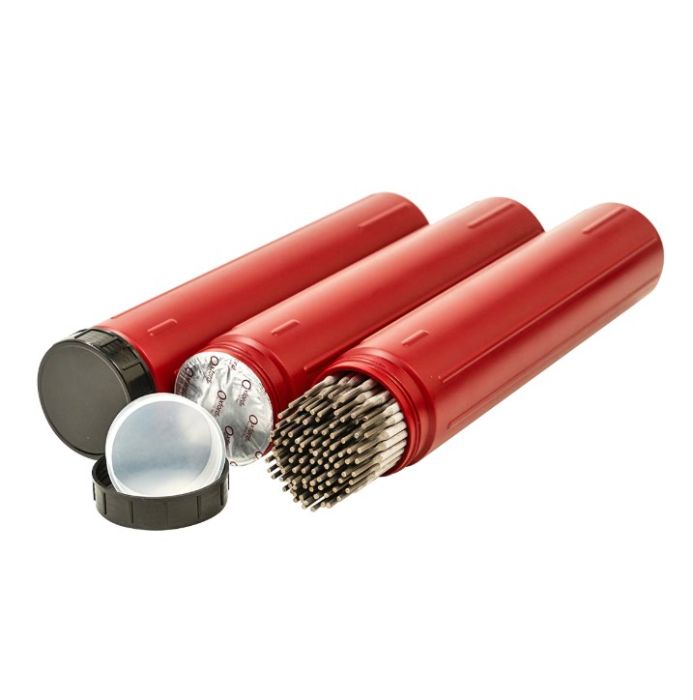

Oxford Alloys 8018-B6 coated stick welding electrode
Shielded Metal Arc Welding (SMAW) process.
Low-hydrogen basic coating promotes a stable arc, low spatter, and good slag removal.
Hermetically sealed tubes preserve coating dryness for consistent performance.
Suitable for all welding positions (flat, horizontal, vertical, overhead).
In stock
Only 350 left
SKU
OAI-E8018B6532
TTD70.00
PRODUCT DESCRIPTION:
The Oxford Alloys E8018-B6 Coated Electrode – 5/32 in is a low-hydrogen, chromium-molybdenum stick welding rod engineered to weld high-alloy creep-resisting steels used in demanding service environments like power plants, pressure vessels and petrochemical piping. Classified AWS A5.5 E8018-B6, this electrode produces weld deposits with strong tensile and yield strength, good ductility and resistance to cracking at elevated temperatures. Its robust flux coating yields a smooth, stable arc with minimal spatter and easy slag removal, making it suited for heavy-section work and high-performance welding applications.
CHEMICAL COMPOSITION (%):
C: 0.05 - 0.10
Mn: 1.0 max
Si: 0.90 max
P: 0.03 max
S: 0.03 max
CR: 4.00 - 6.00
Ni: 0.40 max
Mo: 0.45 - 0.65
MECHANICAL PROPERTIES:
AWS REQUIREMENTS:
Tensile Strength MPs (ksi): 550 (80) min
Yield Strength MPs (ksi): 460 (67) min
Elongation (%): 19 min
TYPICAL RESULTS - AS WELDED:
Tensile Strength MPs (ksi): 670 (97)
Yield Strength MPs (ksi): 590 (97)
Elongation (%): 25
TECHNICAL SPECIFICATIONS:
Brand: Oxford Alloy
Item Model Number: 8018-B6
Product Type: Coated Electrode
AWS Classification: AWS A5.5 E8018-B6
Welding Process: SMAW
Diameter: 5/32"
Length: 14"
Flux Coating: Low-Hydrogen Basic
Welding Amps: 130-210 A
Welding Position: All positions
Shipping Weight: 10 lbs
| SKU | OAI-E8018B6532 |
|---|---|
| Weight | 10.000000 |
| Manufacturer | OXFORD ALLOY |
