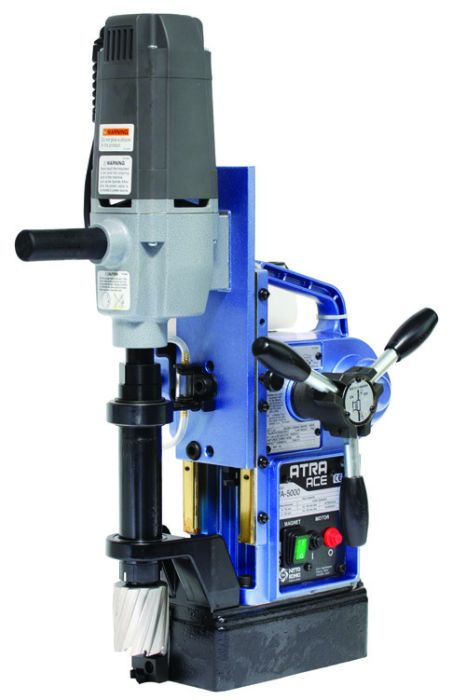

DRILL MAG 2"115V SEMIAUTO

WA-5000 Semi-Automatic Feed Magnetic Drill 2"Max Diameter, 115V, 1150W, 10.8A PRODUCT DESCRIPTION The AtraAce WA-5000 Magnetic Drill increases productivity and reduces hole drilling costs. Designed for hole drilling applications up to 2 inches through 3 inch thick material. This automatic feed mag drill is perfectly suited for work in manufacturing, steel fabrication, construction, and auto/ship building. This heavy duty Magnetic base Drill packs a 350/650 rpm motor as well as 2,200 lbs of holding power with its improved magnetic base. Weighing 51 lbs makes this portable magnetic drill easy to transport. FEATURES 2" x 3 " hole drilling capacity automatic feed with slow start mechanism Step feed feature optimizes cutter penetration Load detection system monitors and regulates motor speeed and cutting feed Powerful 1150 watt double insulated motor Overload stop detection system helps prevent motor and cutter damage Load detection system monitors and regulates motor speed and cutting feed Sealed arbor system with through spindle coolant Built-in motion detection system One touch arbor system No tools required for cutter installation and removal Accepts carbide tipped and High Speed annular cutters Precision machined die cast aluminum mainframe, motor slide and arbor support bracket TECHNICAL SPECIFICATIONS Power Source (Single Phase): 110 V AC 60Hz / 220 V AC 50Hz Rated Power Consumption: 1150 W Magnet Power Consumption: 75 W Hole Diameter: 12 to 50 mm Plate Thickness: 9 to 75 mm No Load Speed: 350 / 650 min-1 Magnet Holding Power: 9.800 N Magnet Dimensions: 101 x 201 mm Mass (Weight): 23 kg 2" Pilot pin Set of allen wrenchs 8 x 10 mm combination wrench Chip guard assembly Motor side handle Sample cutting fluid Safety chain Carrying case Weight: 23Kg | 47 LBS
