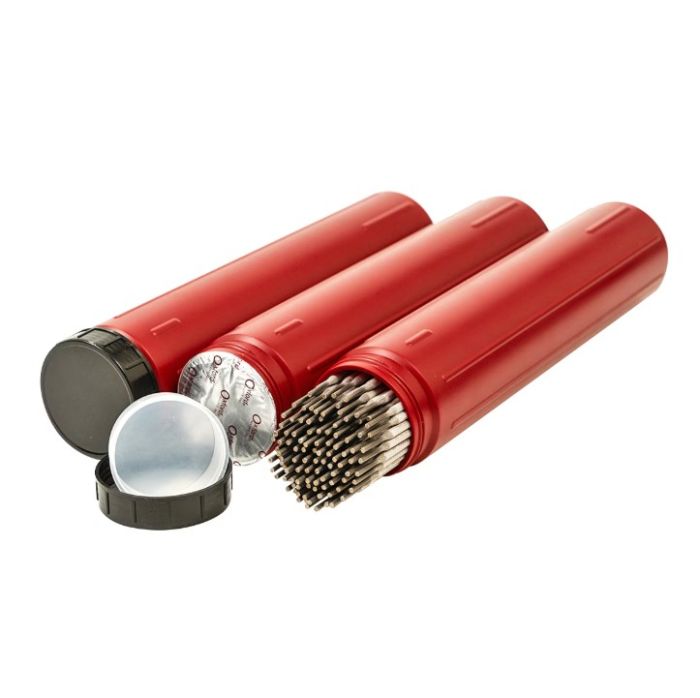

ROD 1/8"E347-16 SS LO-COR
PRODUCT FEATURES:
Electrodes are niobium stabilized stainless steel electrodes used for the welding of types 347 and 321 stainless and stainless clad steels.
The addition of niobium reduces intergranular corrosion in severe operating conditions.
Hermetically Sealed Tubes
Stenciled with AWS classification
Certified Material Test Reports on all heats
In stock
Only 20 left
SKU
OAI-E3471618
TTD99.00
PRODUCT DESCRIPTION:
The Oxford Alloy OAI-E3471618 ROD 1/8″ E347-16 SS LO-COR is a niobium-stabilized stainless steel stick welding electrode engineered for fabrication and repair of stabilized austenitic stainless steels like Type 347 and 321. Classified to AWS A5.4 E347-16, this coated electrode delivers strong weld metal with excellent resistance to intergranular corrosion, especially in service at elevated temperatures encountered in chemical, petrochemical, power generation, and food processing environments. The rutile-based flux coating ensures stable arc performance, good slag detachability, and quality bead appearance across welding positions.
CHEMICAL COMPOSITION:
C: 0.08 max
Cr: 18.0 - 21.0
Ni: 9.0 - 11.0
Nb+Ta: 8 x C - 1.0
Mn: 0.5 - 2.5
Si: 1.0 max
P: 0.04 max
S: 0.03 max
Mo: 0.75 max
Cu: 0.75 max
MECHANICAL PROPERTIES:
AWS REQUIREMENTS:
Tensile Strength MPa (ksi): 520 (75) min
Yield Strength MPs (ksi): Not Specified
Elongation %: 30 min
TYPICAL RESULTS - AS WELDED:
Tensile Strength MPa (ksi): 590 (86)
Yield Strength MPs (ksi): 420 (61)
Elongation %: 42
TYPICAL WELDING PARAMETERS (1/8"):
Process: SMAW
Volt: 26 - 30
Amps (Flat): 85 - 110
Amps (V/OH): 80 - 90
TECHNICAL SPECIFICATIONS:
Brand: Oxford Alloy
Item Model Number: E347-16
AWS / ASME Classification: A5.4 E347-16
UNS Number: W34710
Welding Process: SMAW
Diameter: 1/8"
Typical Coating Type: Rutile/ Stabilized Coating
Typical Applications: Welding Types 347 & 321 stainless steel
Welding Positions: Flat, Horizontal, Vertical, Overhead
Typical Current / Polarity: AC or DC+ (DCEP)
Shipping Weight: 1 lbs
| SKU | OAI-E3471618 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | OXFORD ALLOY |
