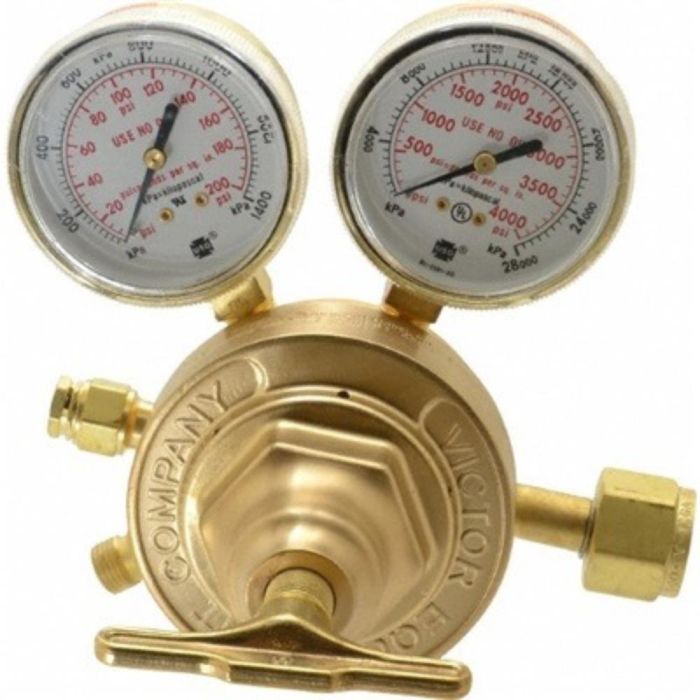

REGULATOR OXY SR450D-540
PRODUCT FEATURES
Forged brass body and housing cap
2-1/2 Inch gauge brass
Stem type seat mechanism
3-1/4 Inch diaphragm stainless steel
Delrin cap bushing for smooth adjustments
Sintered inlet filter
Regulators will deliver at least the stated upper range and in some cases may exceed the stated upper range
External self reseating relief valve on HP models not designed to protect downstream apparatus
Model number SR 450D-540
Forged brass body and housing cap
2-1/2 Inch gauge brass
Stem type seat mechanism
3-1/4 Inch diaphragm stainless steel
Delrin cap bushing for smooth adjustments
Sintered inlet filter
Regulators will deliver at least the stated upper range and in some cases may exceed the stated upper range
External self reseating relief valve on HP models not designed to protect downstream apparatus
Model number SR 450D-540
In stock
Only 21 left
SKU
VIC-0781-0527
TTD1,689.00
INCLUDES
(1) Victor Technologies 0781-0527 SR-450D-540 Heavy Duty Single Stage Oxygen Regulator
PRODUCT DESCRIPTION
Victor® 0781-0527 SR 450 Series Professional Regulator, Heavy-Duty Single Stage, Gas Type: Air, Oxygen, Inert Gas, Gauge Range: Inlet: 4000 psig, Outlet: 200 psig, Inlet Pressure: 3000 psig, Outlet Pressure: 5 - 125 psig, Inlet Connection: CGA 540, Outlet Connection: 9/16-18 RH Male, Flow Coefficient (Cv): 0.27, Forged Brass, Brass, 7-1/4 Inch Length x 5.13 Inch Width x 7 Inch Height
TECHNICAL SPECIFICATONS
Product Dimensions: ?9 x 8 x 6 inches
Item Weight: ?5.13 lbs
Finish/Color: Brass
Flow Coefficient (Cv): 0.27
Gas Type: Air, Oxygen, Inert Gas
Gauge Range: Inlet: 4000 psig, Outlet: 200 psig
Inlet Connection: CGA 540
Inlet Pressure: 3000 psig
Material: Forged Brass
Outlet Connection: 9/16-18 RH Male
Outlet Pressure: 5 - 125 psig
Type: Heavy-Duty Single Stage
Shipping Weight: 6lbs
(1) Victor Technologies 0781-0527 SR-450D-540 Heavy Duty Single Stage Oxygen Regulator
PRODUCT DESCRIPTION
Victor® 0781-0527 SR 450 Series Professional Regulator, Heavy-Duty Single Stage, Gas Type: Air, Oxygen, Inert Gas, Gauge Range: Inlet: 4000 psig, Outlet: 200 psig, Inlet Pressure: 3000 psig, Outlet Pressure: 5 - 125 psig, Inlet Connection: CGA 540, Outlet Connection: 9/16-18 RH Male, Flow Coefficient (Cv): 0.27, Forged Brass, Brass, 7-1/4 Inch Length x 5.13 Inch Width x 7 Inch Height
TECHNICAL SPECIFICATONS
Product Dimensions: ?9 x 8 x 6 inches
Item Weight: ?5.13 lbs
Finish/Color: Brass
Flow Coefficient (Cv): 0.27
Gas Type: Air, Oxygen, Inert Gas
Gauge Range: Inlet: 4000 psig, Outlet: 200 psig
Inlet Connection: CGA 540
Inlet Pressure: 3000 psig
Material: Forged Brass
Outlet Connection: 9/16-18 RH Male
Outlet Pressure: 5 - 125 psig
Type: Heavy-Duty Single Stage
Shipping Weight: 6lbs
| SKU | VIC-0781-0527 |
|---|---|
| Weight | 6.000000 |
| Manufacturer | VICTOR TECHNOLOGIES |
