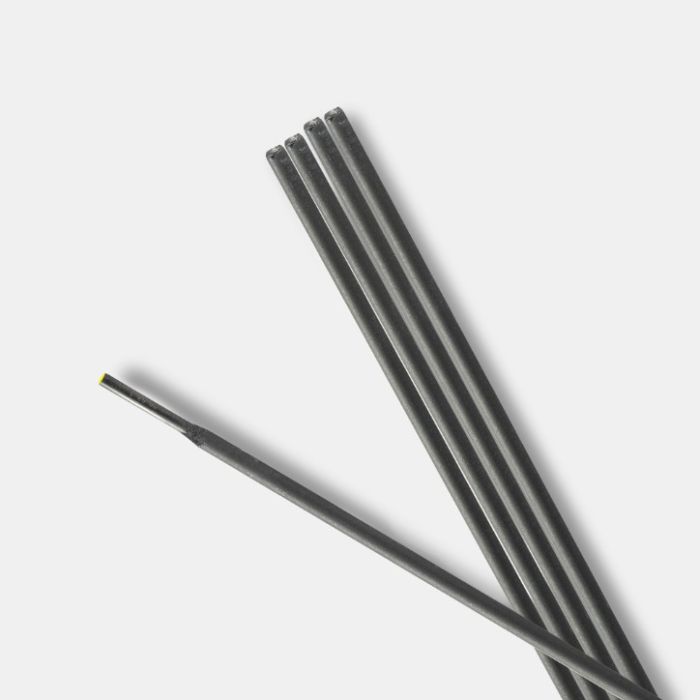

ROD NI99 ENICI 5/32 C/IRN
PRODUCT FEATURES:
Produces very machinable weld metal — ideal for post‑weld shaping, drilling, or tapping.
Welds closely match the appearance of cast iron, improving aesthetics.
Suitable for all welding positions and both AC/DC+.
Can join cast iron to mild steel where needed.
Good choice for cracked, broken, porous, or worn cast iron repairs.
In stock
Only 38 left
SKU
WASH-NI99532
TTD204.42
PRODUCT DESCRIPTION:
The Washington Alloy WASH‑NI99532 ROD NI99 ENi‑CI 5/32″ is a premium high‑nickel stick welding electrode tailored for repairing and joining cast iron. Classified to AWS A5.15 ENi‑CI, its approximately 99 % nickel composition produces weld metal that is soft, ductile, and easily machinable, drillable, or tapped after welding — ideal for light‑ to medium‑duty cast iron repairs where minimal stress and maximum post‑weld finish are required. The electrode performs well in all positions using AC or DC+ current, and the welds closely match cast iron surfaces.
TYPICAL WELD METAL CHEMISTRY (%):
C: 0.055
Si: 0.46
Mn: 0.33
P: 0.017
S: 0.007
Fe: 0.850
Cu: 0.160
Ni Balance
TYPICAL MECHANICAL PROPERTIES OF WELD METAL (AS WELDED):
Tensile Strength (psi): 50,000
Yield Strenght (0.2% offset) (psi): 40,000
Elongation in 2" (%): 3-4%
Brinell Hardness: 170
TECHNICAL SPECIFICATIONS:
Brand: Washington Alloy
Item Model Number: NI99532
Product Type: High Nickel Cast Iron Welding Rod
AWS / ASME Classification: AWS A5..15 / ASME SFA 5.15 ENi-CI
Diameter: 5/32"
Lengrh: 14"
Core Composition: 99% Nickel
Welding Positions: Flat, Horizontal, Vertical, Overhead)
Current / Polarity: AC / DC+ (DCEP)
Typical Weld Metal Traits: Soft, Ductile, Highly Machinable, Good cast iron match
Recommended Amperage Range: 90 - 130A
Applications: Cast Iron Repair, Rebuilding, Joining Cast Iron to itself or to steels
Shipping Weight: 10 lbs
| SKU | WASH-NI99532 |
|---|---|
| Weight | 60.000000 |
| Manufacturer | WASHINGTON ALLOY |
