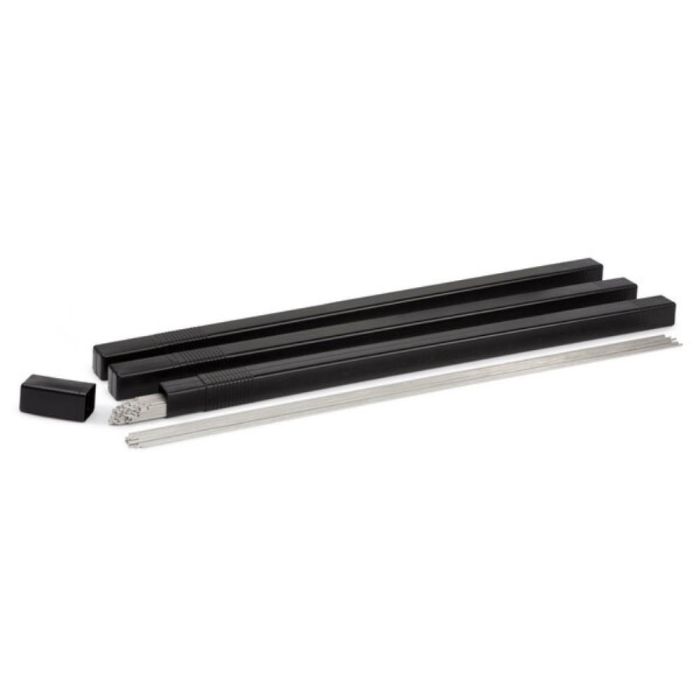

ROD TIG 1/8"X36 ER2209 SS
PRODUCT FEATURES
The welds offer excellent resistance to stress corrosion, cracking and pitting
The microstructure of the weld metal consists of austenite and ferrite
Welding of duplex stainless steels calls for controlled welding parameters to achieve specified mechanical and corrosion resistant properties
Ink jet printing identification on entire length of electrode
The welds offer excellent resistance to stress corrosion, cracking and pitting
The microstructure of the weld metal consists of austenite and ferrite
Welding of duplex stainless steels calls for controlled welding parameters to achieve specified mechanical and corrosion resistant properties
Ink jet printing identification on entire length of electrode
In stock
Only 40 left
SKU
WASH-ER220918
TTD95.63
INCLUDES
(1) Lincoln® ER2209
PRODUCT DESCRIPTION
ER2209 is intended to weld duplex stainless steels. Exhibits high tensile strength and resistance to stress and corrosion cracking. Exhibits a low ferrite.
TECHNICAL SPECIFICATIONS
Diameter in (mm): 1/8- (3.2)
Requirements %C %Cr %Ni %Mo %Mn %Si
AWS ER2209 0.03 max 21.5 - 23.5 7.5 - 9.5 2.5 - 3.5 0.5 - 2.0 0.90 max
Typical Performance(2) 0.01 22.7 8.5 3.0 1.4 0.4
%P %S %N %Cu FN
Requirements
AWS ER2209 0.03 max 0.03 max 0.08 - 0.20 0.75 max Not Required
Typical Performance(2) 0.01 0.001 0.15 0.06 30 - 60
(1) Lincoln® ER2209
PRODUCT DESCRIPTION
ER2209 is intended to weld duplex stainless steels. Exhibits high tensile strength and resistance to stress and corrosion cracking. Exhibits a low ferrite.
TECHNICAL SPECIFICATIONS
Diameter in (mm): 1/8- (3.2)
Requirements %C %Cr %Ni %Mo %Mn %Si
AWS ER2209 0.03 max 21.5 - 23.5 7.5 - 9.5 2.5 - 3.5 0.5 - 2.0 0.90 max
Typical Performance(2) 0.01 22.7 8.5 3.0 1.4 0.4
%P %S %N %Cu FN
Requirements
AWS ER2209 0.03 max 0.03 max 0.08 - 0.20 0.75 max Not Required
Typical Performance(2) 0.01 0.001 0.15 0.06 30 - 60
| SKU | WASH-ER220918 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | WASHINGTON ALLOY |
