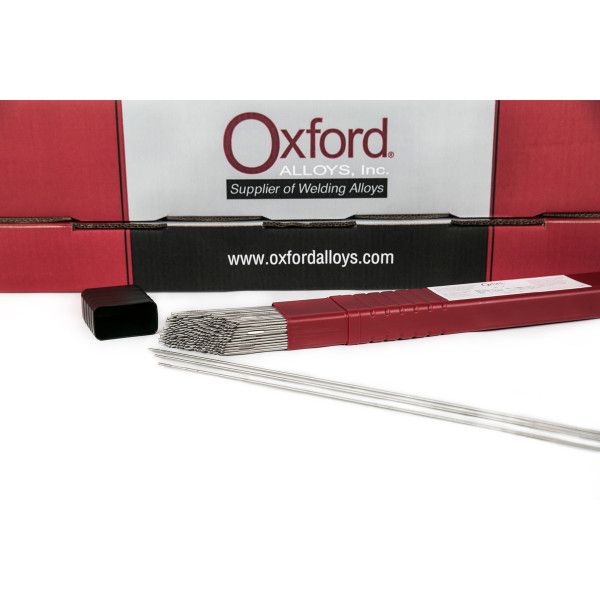

ROD TIG ER316L 3/32 X 36"
PRODUCT FEATURES:
Low Carbon for Corrosion Resistance: Contains ≤ 0.03% carbon to minimize intergranular carbide precipitation. Ideal for use in environments that demand high corrosion resistance, especially post-weld.
Molybdenum-Enhanced Alloy: 2–3% Molybdenum improves resistance to pitting and crevice corrosion, particularly in chloride-rich environments like marine and chemical settings.
Excellent Arc Stability and Weldability: Provides a smooth, stable arc, ensuring clean and precise welds with minimal spatter. Ideal for manual TIG welding, especially where bead appearance is critical.
All-Position Welding: Suitable for welding in flat, vertical, horizontal, and overhead positions.
High Mechanical Strength: Tensile strength ~123 ksi (850 MPa) Yield strength ~94 ksi (650 MPa) 28% elongation, maintaining good toughness and formability.
Meets Industry Standards: Conforms to AWS A5.9: ER316L and ASME SFA 5.9 specifications. Ensures quality, traceability, and performance compliance.
Ideal for Precision Work: 3/32" diameter offers a balance between control and filler volume, well-suited for pipe welding, pressure vessels, and sanitary fabrications.
Consistent Finish: Designed for excellent bead profile and surface finish, reducing post-weld cleanup time.
In stock
Only 50 left
SKU
OX-316L332X36
TTD79.00
PRODUCT OVERVIEW:
This filler metal has the same analysis as Oxford Alloy ER316, except that the carbon content is limited to a maximum of 0.03% in order to reduce the possibility of formation of intergranular carbide precipitation.
MECHANICAL PROPERTIES:
Tensile Strength: 850 MPa (123 ksi)
Yield Strength: 650 MPa (94 ksi)
Elongation: 28%
WELDING PARAMETERS:
Amperage Range (TIG): 120-150 amps
Shielding Gas: Pure argon (Ar)
Welding Positions: All positions
APPLIATIONS:
Austenitic stainless steels
Chemical processing equipment
Food and pharmaceutical industries
Marine environments
Architectural structures
CHEMICAL COMPOSITION:
C: 0.03 max
Mn: 1.0 - 2.5
Si: 0.30 - 0.65
Cr: 18.0 - 20.0
Ni: 11.0 - 14.0
Mo: 2.0 - 3.0
S: 0.03 max
P: 0.03 max
Cu: 0.75 max
| SKU | OX-316L332X36 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | OXFORD ALLOY |
