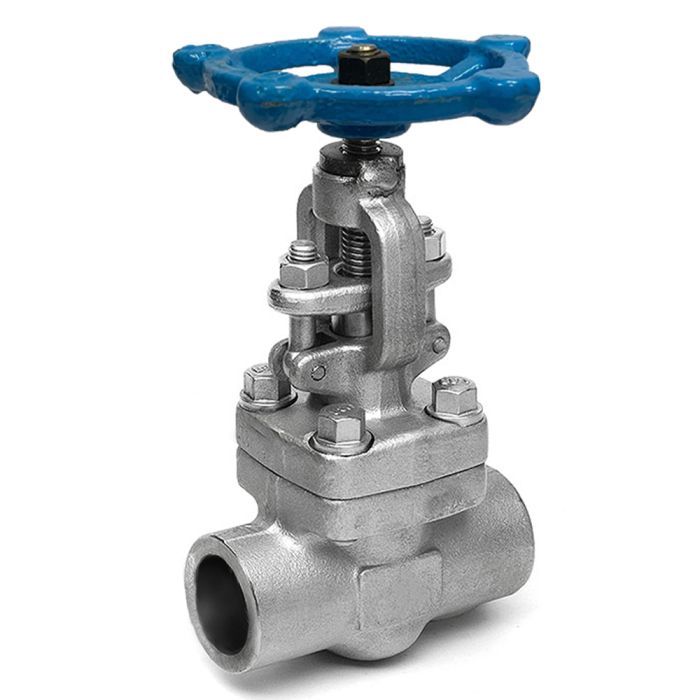

1/2" A105 CARBON STEEL GLOBE VALVE 800# BB SW
Smith Standard Globe Valves feature an outside stem and yoke (OS&Y), and are available in Class 150-1500 in conventional port with threaded, socketweld, buttweld or RF ends. All are manufactured in accordance with API 602 and ASME B16.34 standards.
The Smith forged steel globe valve is designed for dependable flow control and isolation in high-pressure industrial applications. Constructed from A105 NLC forged carbon steel, this valve delivers reliable performance in demanding environments such as oil & gas, refining, and power generation.
This valve features a Class 800 pressure rating, a bolted bonnet design, allowing for easier maintenance and serviceability in the field, while maintaining excellent pressure containment. Socket-welded ends provide a strong, leak-tight connection ideal for high-integrity piping systems operating under pressure or thermal stress. The socket-welded (SW) ends provide a secure, permanent connection—ideal for high-integrity piping systems where vibration or thermal cycling may be a factor.
The Outside Screw & Yoke (OS&Y) design provides external stem threading for visual stem position and easier maintenance access. Fitted with Trim 8, this configuration typically includes a 410 stainless steel stem and seating surfaces, offering improved wear resistance and service life in moderate-temperature and clean service applications.
Sizes
1/4” – 3”
Pressure Class
150, 300, 600, 800, 1500, 2500
Design Specifications & Compliance
API 591/598/602/624
ASME B16.34
NACE MR-0175
NACE MR-0103
End Connections
Threaded
Socketweld
Flanged
Buttweld
Out of stock
SKU
311-VWCWBSW8008
TTD569.96
Smith Standard Globe Valves feature an outside stem and yoke (OS&Y), and are available in Class 150-1500 in conventional port with threaded, socketweld, buttweld or RF ends. All are manufactured in accordance with API 602 and ASME B16.34 standards.
The Smith forged steel globe valve is designed for dependable flow control and isolation in high-pressure industrial applications. Constructed from A105 NLC forged carbon steel, this valve delivers reliable performance in demanding environments such as oil & gas, refining, and power generation. This valve features a Class 800 pressure rating, a bolted bonnet design, allowing for easier maintenance and serviceability in the field, while maintaining excellent pressure containment. Socket-welded ends provide a strong, leak-tight connection ideal for high-integrity piping systems operating under pressure or thermal stress. The socket-welded (SW) ends provide a secure, permanent connection—ideal for high-integrity piping systems where vibration or thermal cycling may be a factor.
DIAGRAM:
DESIGN & CONSTRUCTION:
- API 591/598/602/624, ASME B16.34, NACE MR-0175, NACE MR-0103
- Bolted & welded bonnet
- Reduced and full port
- Threaded, Socketweld, Buttweld or Flanged Ends
- Bolted Bonnet constructed of forged steel with integral backseat
- Nameplate serialized for full traceability
- API 622 and API 624 qualified packing for low emissions
DIMENSIONAL DATA:
PRODUCT NUMBERING SYSTEM:
| SKU | 311-VWCWBSW8008 |
|---|---|
| Weight | 10.000000 |
| Manufacturer | SMITH VALVES. |
