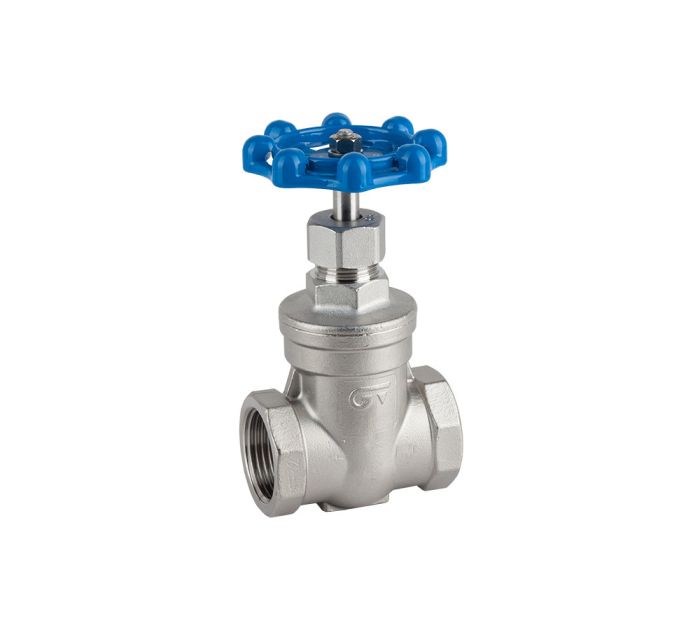

1.5" 304L STAINLESS STEEL GATE VALVE SW ONE END WB RP BONNET CLASS 800
Stainless steel gate valves are widely utilized in the chemical, petrochemical, oil & gas, power generation, food, and pharmaceutical industries. Forged construction in ASTM A182 Grade F304L provides excellent resistance to corrosion and superior mechanical strength. Low carbon content ensures resistance to intergranular corrosion, particularly after welding, making this valve reliable in critical service conditions.
These stainless steel valves are designed and manufactured in accordance with ASME, API, and other international standards, ensuring high quality and durability for demanding industrial applications. Forged valves are specialized products through careful design, material selection, forging processes, quality control, and experience to the final product.
Design Features:
-
Forged body in ASTM A182 F304L stainless steel for durability and corrosion resistance
-
Welded bonnet (WB) construction ensures high integrity and leak-tight performance under pressure
-
Socket Weld (SW) end connection on one side for secure piping installation
-
Renewable Packing (RP) bonnet arrangement for effective stem sealing and ease of maintenance
-
Pressure rating: ASME Class 800
End Connections:
-
Socket Weld Ends to ASME B16.11
-
Other end configurations available on request
In stock
Only 3 left
SKU
310-VG30480016
Stainless steel gate valves are utilized in the chemical, petrochemical, oil & gas, food, and pharmaceutical processing industries all over the world. Forged construction is manufactured for high pressure ratings such as Class 800. Shell materials shall be in accordance with ASTM A182 Grade F304L and other stainless steel grades are optional. Stainless steel gate valves are designed and manufactured in conformity with API, ANSI, BS and other standards, meeting the stringent requirements for industrial applications. Forged stainless steel valves are specialized products developed through precise design, material selection, forging technology, quality control, and years of experience brought together in the final product.
FORGED CONSTRUCTION:
Forged stainless steel valves shall be manufactured for pressure ratings Class 800 and above, ensuring durability and leak-tight performance in critical service conditions.
VALVE SHELL MATERIALS:
Shell materials shall be in accordance with ASTM A182 Grade F304L, with other stainless steel grades available on request.
ASTM DESIGNATION
MAXIMUM WORKING TEMPERATURE ? (?)
-
A182 Gr. F304L — 850? (454?)
-
A182 Gr. F304 — 1000? (538?)
-
A182 Gr. F316L — 850? (454?)
-
A182 Gr. F316 — 1000? (538?)
-
A182 Gr. F321 — 1500? (816?) ?
-
A182 Gr. F347 — 1500? (816?) ?
? At temperatures over 1000?, use the material only when the carbon content is 0.04% or higher.
| SKU | 310-VG30480016 |
|---|---|
| Weight | 5.000000 |
| Manufacturer | VELAN VALVES. |
