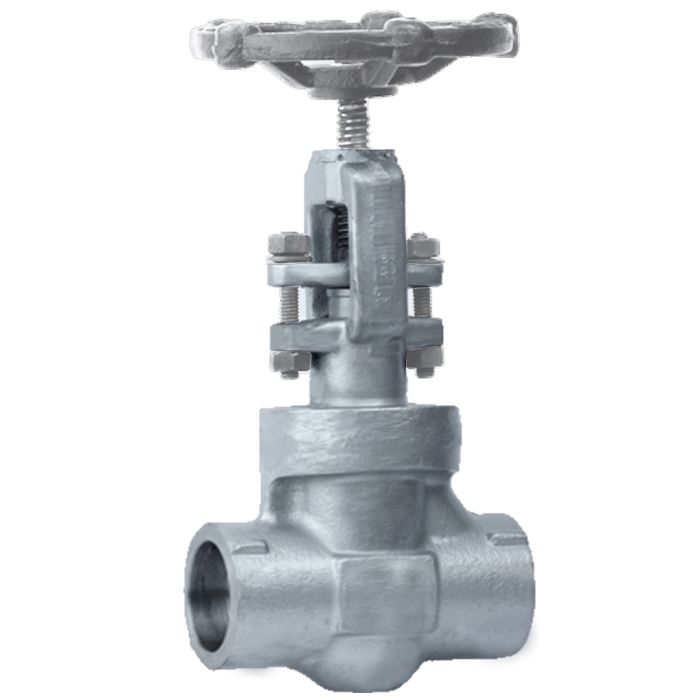

1" A182F316 STAINLESS STEEL GLOBE VALVE 800# WB NPT OS&Y TR12
Smith Standard Globe Valves feature an outside stem and yoke (OS&Y), and are available in Class 150-1500 in conventional port with threaded, socketweld, buttweld or RF ends. All are manufactured in accordance with API 602 and ASME B16.34 standards.
This Valve is engineered for precision flow control and isolation in demanding service conditions. Constructed from ASTM A182 F316 stainless steel, this valve provides superior resistance to corrosion and high temperatures, making it ideal for critical applications in chemical, petrochemical, and offshore industries.
Designed to ASME B16.34 and API 602 standards, this Class 800 globe valve features an Outside Screw & Yoke (OS&Y) for easy maintenance and visual stem position indication, a welded bonnet for enhanced pressure integrity, and NPT end connections for threaded piping systems. The TR12 trim offers hardened seating surfaces for improved wear resistance and long service life.
Sizes
1/2” – 2”
Pressure Class
150, 300, 600, 800, 1500
Design Specifications & Compliance
API 591/598/602/624
ASME B16.34
NACE MR-0175
NACE MR-0103
End Connections
Threaded
Socketweld
Flanged
Buttweld
Material
Large scope of materials and trims available
Construction
Welded Bonnet
Bolted Bonnet
In stock
Only 5 left
SKU
311-SMM1064023
TTD449.96
This Valve is engineered for precision flow control and isolation in demanding service conditions. Constructed from ASTM A182 F316 stainless steel, this valve provides superior resistance to corrosion and high temperatures, making it ideal for critical applications in chemical, petrochemical, and offshore industries.
Designed to ASME B16.34 and API 602 standards, this Class 800 globe valve features an Outside Screw & Yoke (OS&Y) for easy maintenance and visual stem position indication, a welded bonnet for enhanced pressure integrity, and NPT end connections for threaded piping systems. The TR12 trim offers hardened seating surfaces for improved wear resistance and long service life..

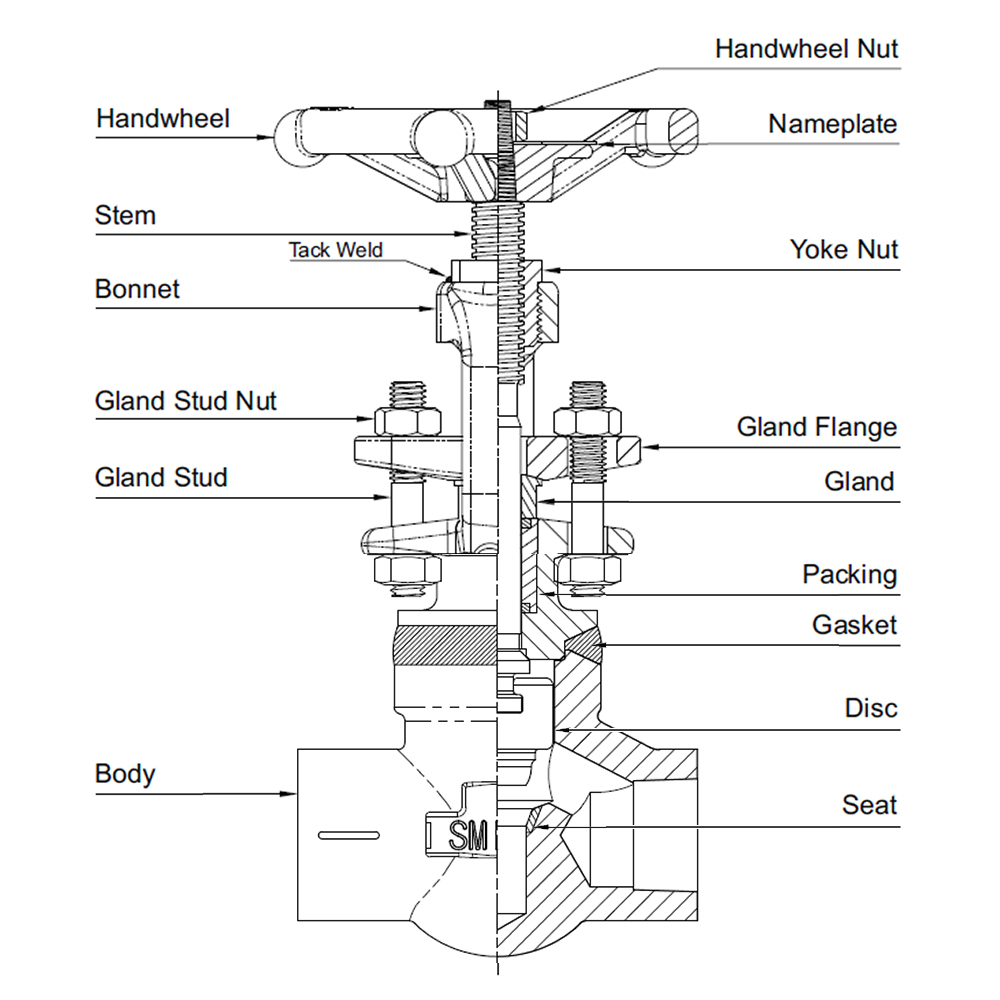

DIAGRAM:
DESIGN & CONSTRUCTION:
- API 591/598/602/624, ASME B16.34, NACE MR-0175, NACE MR-0103
- Bolted & welded bonnet
- Reduced and full port
- Threaded, Socketweld, Buttweld or Flanged Ends
- Welded Bonnet constructed of forged steel with integral backseat
- Nameplate serialized for full traceability
- API 622 and API 624 qualified packing for low emissions

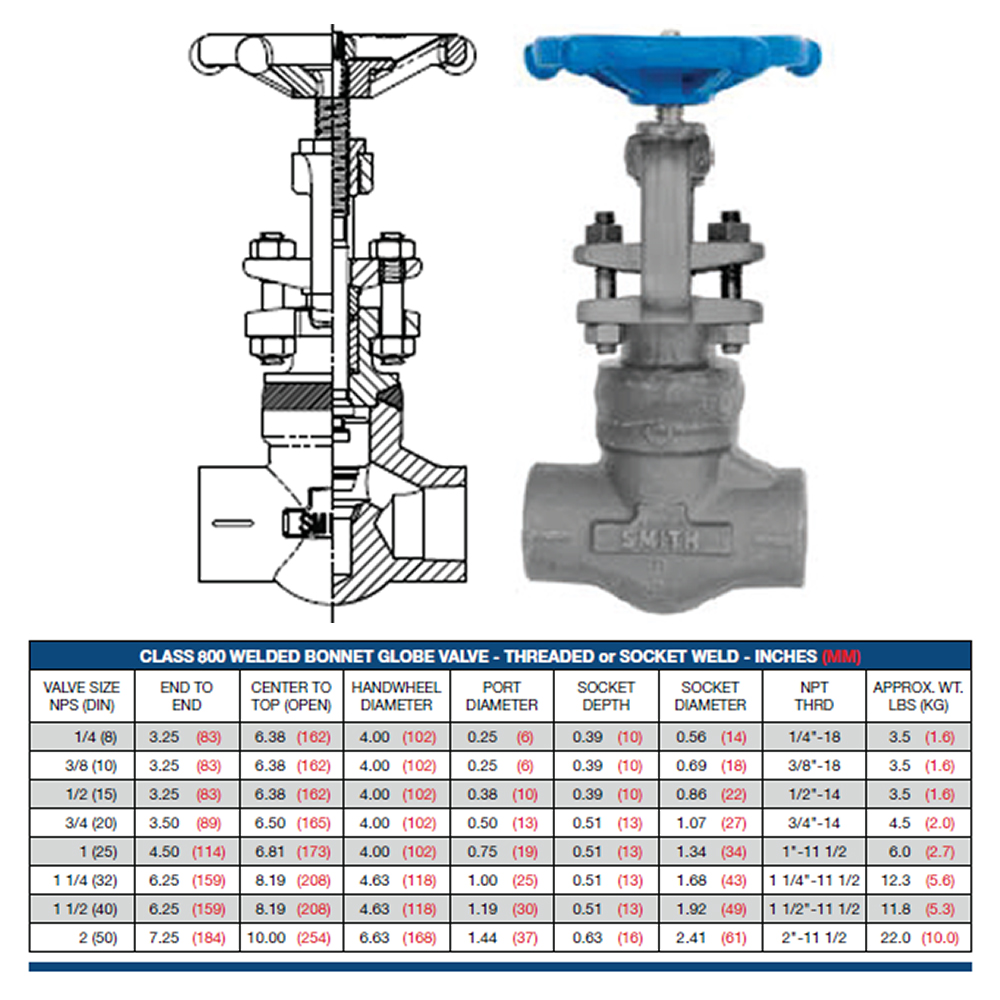

DIMENSIONAL DATA:

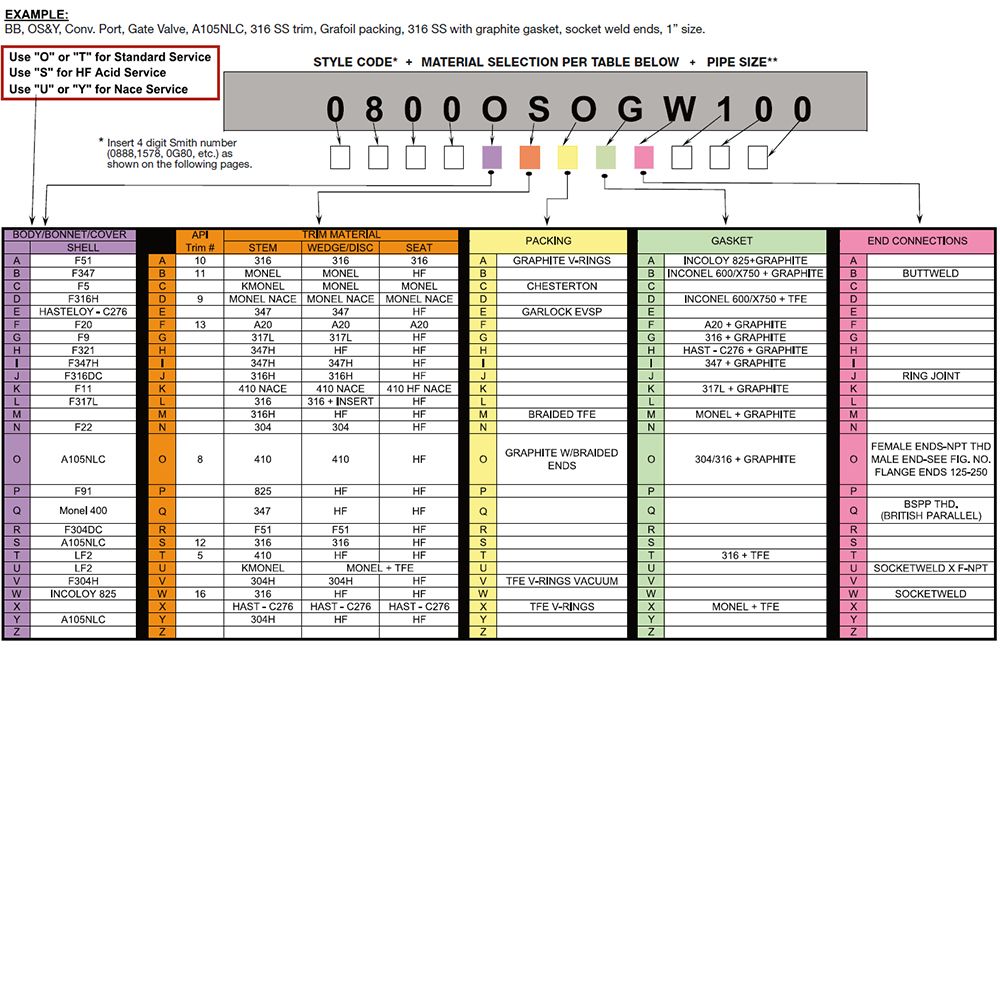

PRODUCT NUMBERING SYSTEM:
| SKU | 311-SMM1064023 |
|---|---|
| Weight | 10.000000 |
| Manufacturer | SMITH VALVES. |
