2" 316 STAINLESS STEEL GATE VALVE 800# WB NPT TR12
SMITH 316 Stainless Steel Gate Valves are industrial valves used to fully open or close the flow in a pipeline, offering excellent resistance to corrosion and chemicals. These valves feature a gate-like disc that slides to control flow and are often built to industry standards like API 600, ensuring reliability. Key characteristics include the use of stainless steel for durability, live-loaded packing for low emissions and less frequent adjustments, and compliance with NACE standards for use in challenging environments.
Smith Forged Gate Valves feature an outside stem and yoke (OS&Y), are available in Class 150-2500, and have conventional or full ports with either threaded, socketweld, buttweld or RF ends. All are manufactured in accordance with API 600 and ASME B16.34 standards.
Sizes
1/4” – 3”
Pressure Class
150, 300, 600, 800, 1500, 2500
Design Specifications & Compliance
API 591/598/600/622
ASME B16.34
NACE MR-0175
NACE MR-0103
End Connections
Threaded
Socketweld
Flanged
Buttweld
In stock
Only 10 left
SKU
310-SVGSWBSC818
SMITH Stainless Steel Gate Valves are industrial valves used to fully open or close the flow in a pipeline, offering excellent resistance to corrosion and chemicals. These valves feature a gate-like disc that slides to control flow and are often built to industry standards like API 600, ensuring reliability. Key characteristics include the use of stainless steel for durability, live-loaded packing for low emissions and less frequent adjustments, and compliance with NACE standards for use in challenging environments.
Smith Forged Gate Valves feature an outside stem and yoke (OS&Y), are available in Class 150-2500, and have conventional or full ports with either threaded, socketweld, buttweld or RF ends. All are manufactured in accordance with API 600 and ASME B16.34 standards.

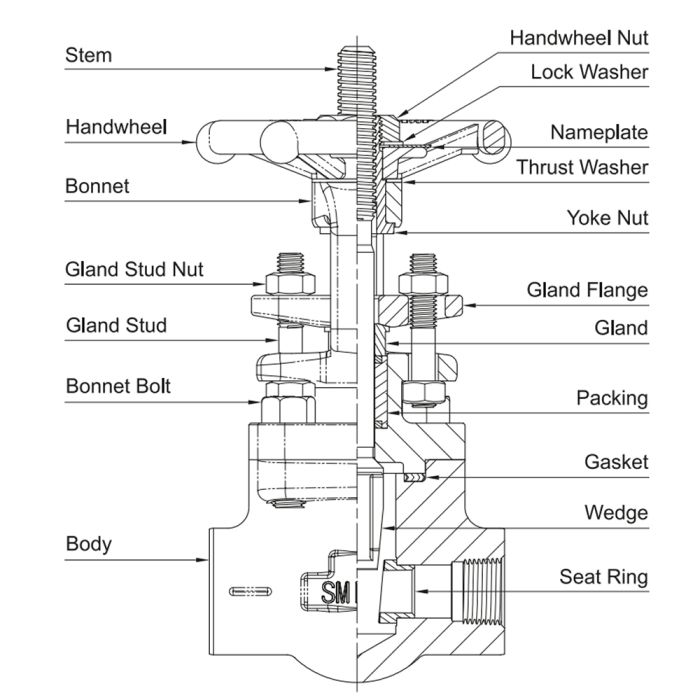

DIAGRAM:
MATERIAL LIST:
DESIGN & CONSTRUCTION:
- API 600, ASME B16.34
- Bolted & welded bonnet
- Reduced and full port
- Threaded, Socketweld, Buttweld ends class 800 to 2500
- Flanged ends class 150 to 2500
- Bonnet constructed of forged steel with integral backseat
- Nameplate serialized for full traceability
- API 622 and API 624 qualified packing for low emissions

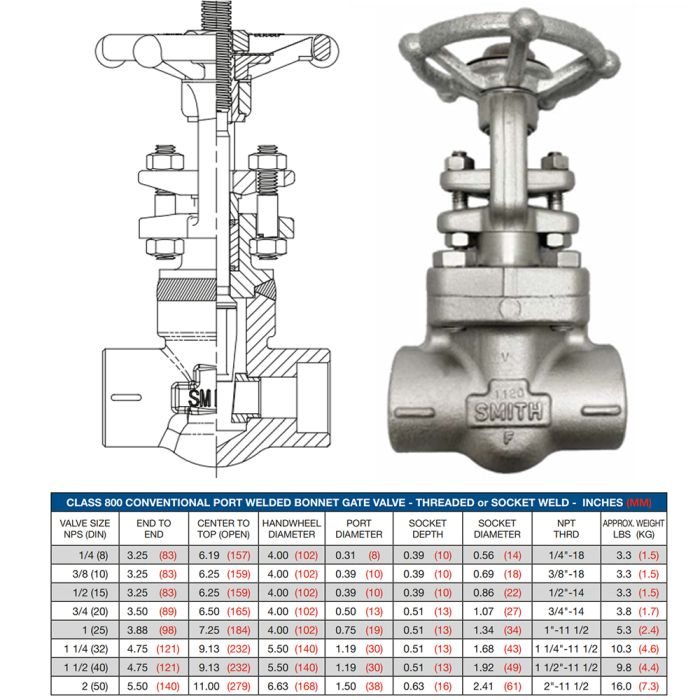

DIMENSIONAL DATA:

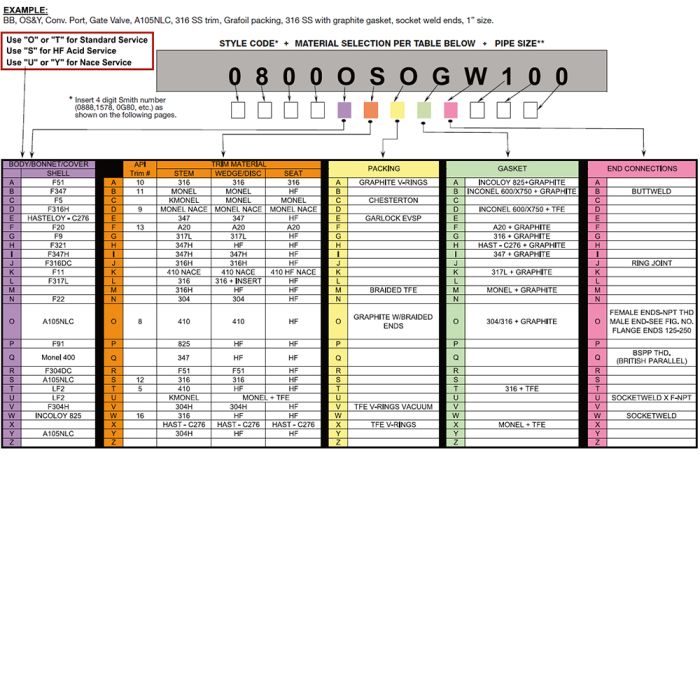

PRODUCT NUMBERING SYSTEM:
| SKU | 310-SVGSWBSC818 |
|---|---|
| Weight | 1.000000 |
