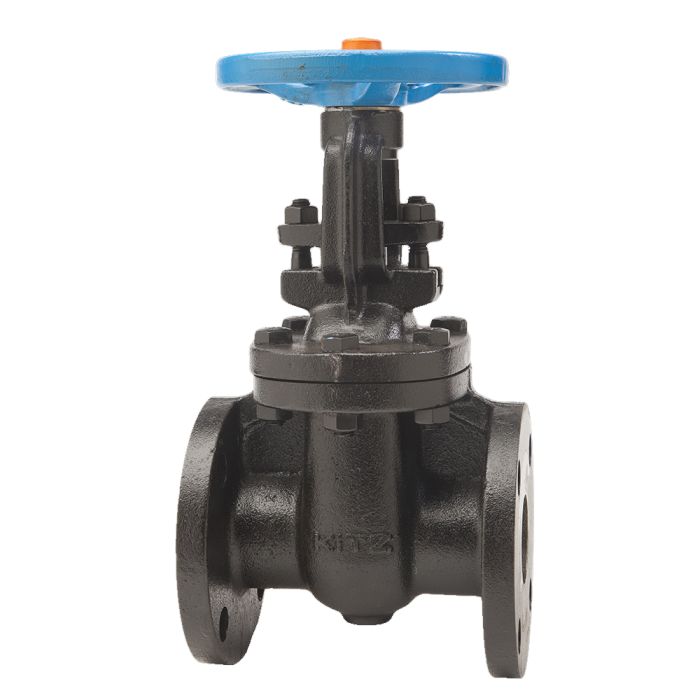

2" CAST CARBON STEEL GATE VALVE 150# FS BB RF 13%CR-1/2HF TRIM 8.
Combining high toughness, hardness and tensile strength with impact strength, cast steel valves are commonly used for high-temperature and high-pressure applications in a variety of industries.
KITZ offers various types of JPI, API and ANSI / ASTM standard cast steel valves on a steady-supply basis. These KITZ valves are widely used in petroleum and petrochemical plants throughout the world.
In stock
Only 2 left
SKU
310-KTZ205150
KITZ offers various types of JPI, API and ANSI / ASTM standard cast steel valves on a steady-supply basis. These KITZ valves are widely used in petroleum and petrochemical plants throughout the world. Combining high toughness, hardness and tensile strength with impact strength, cast steel valves are commonly used for high-temperature and high-pressure applications in a variety of industries.
Heavily designed KITZ wedge gates are forged or cast solid, single piece of steel without any welding work. Specially heattreated wedges are firmly coupled with integral T-head of the valve stems, which are also ruggedly designed and specially heat-treated for the highest possible durability of stem to wedge connection. A

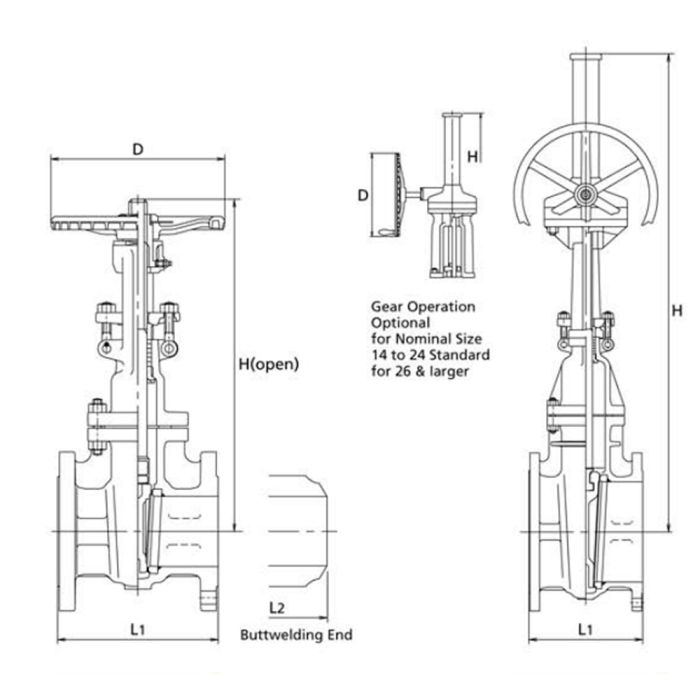

Diagram

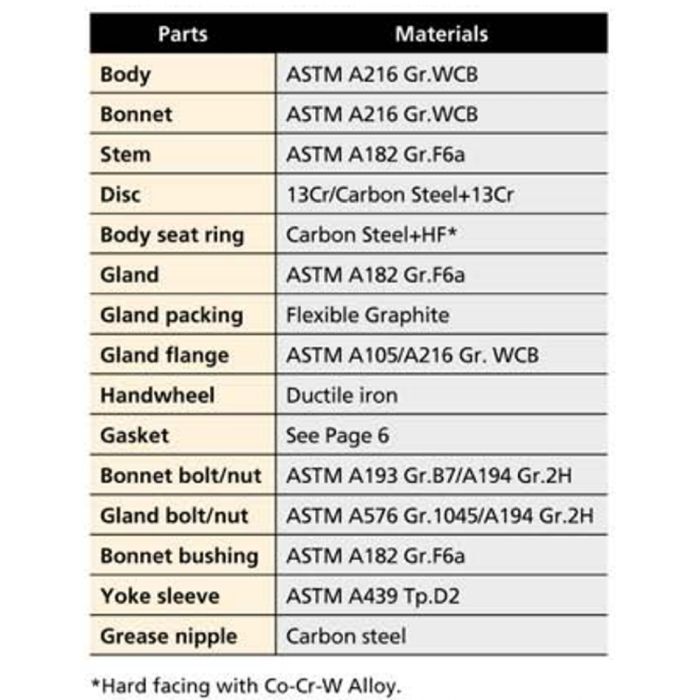

Material Listing
BODY SEAT RINGS
Body seat rings of KITZ cast steel valves are mounted on the valve body by either threading or seal welding as shown in the typical examples of gate valves illustrated below. Unless specifically requested in advance, mounting of body seat rings shall be made at the manufacturer's discretion. Specify your own method of mounting, noting your purchase orders with adequate KITZ product code numbers
BONNET GASKETS
Class 150 : Flexible graphite sheet with stainless steel insert and permeation protective barrier for low
emission service
Class 300 : Spiral wound (flexible graphite filler and stainless steel hoop) with a stainless steel inner ring
Class 600 : Ring joint metal gasket
GLANDPACKING
KITZ’s original ‘‘SEALEVER®’’ flexible graphite packing set, consisting of 4 dieformed flexible graphite rings* and 2 braided flexible graphite rings, combined with a pure carbon spacer bush for Class 300 and 600 rated valves.
STEM
16 to 32 RMS surface finish. Straightness and roundness are precision controlled according to KITZ design and manufacturing standards.
PLUG GASKETS
Class 150 / 300 : Flexible graphite sheet with stainless steel
insert and permeation protective barrier.
Class 600 : Spiral wound metal, flexible graphite filled
LOW EMISSONS ACCEPTANCE TEST
KITZ employs 10 ppm as the acceptance criteria for the random test done prior to shipment to customers, in consideration of stress relaxation of packing material during transportation and storage.

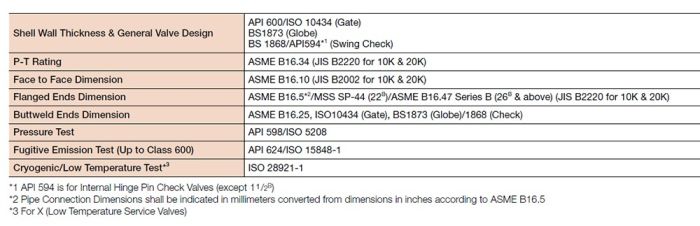

Design Specifications:

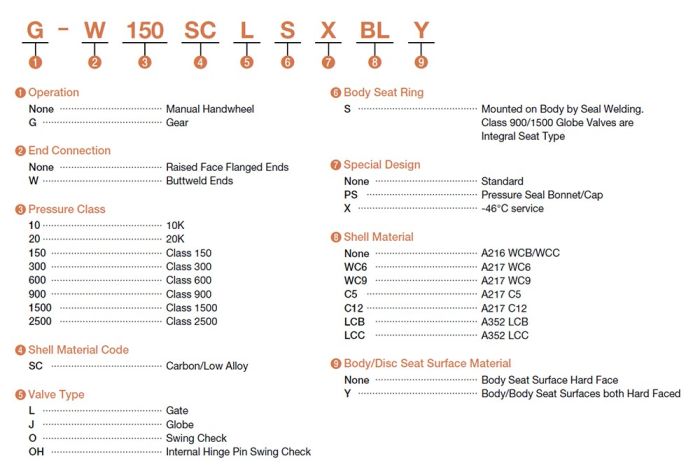

Product Coding:

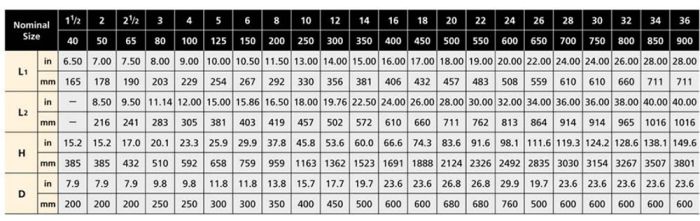

Sizing guide:
| SKU | 310-KTZ205150 |
|---|---|
| Manufacturer | KITZ. |
