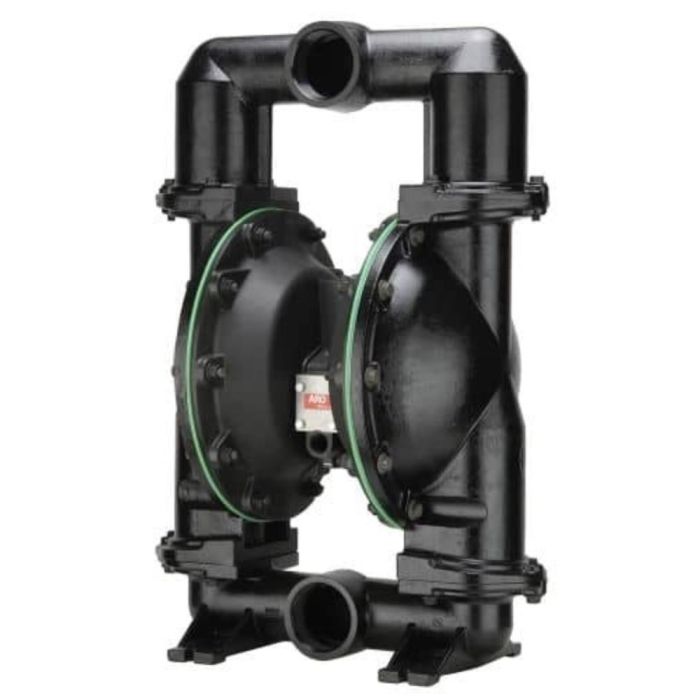

PUMP DIAPH 3"
PRODUCT FEATURES
Industry leading flow rates with a maximum delivery of 237 GPM (897 LPM)!!
Ideal answer to big volume applications - where performance with economy is a must!!
Efficiency - Motor design delivers optimum air efficiency
Reliability - ARO's patented "Unbalanced" air valve ensures no-stall operation
Versatility - From material transfer to portable dewatering applications - This pump can do it all
Environmentally Sound - Bolted construction for leak-free fluid handling
Serviceability - Easy access to ball checks and fluid caps for maintenance and repairs
Industry leading flow rates with a maximum delivery of 237 GPM (897 LPM)!!
Ideal answer to big volume applications - where performance with economy is a must!!
Efficiency - Motor design delivers optimum air efficiency
Reliability - ARO's patented "Unbalanced" air valve ensures no-stall operation
Versatility - From material transfer to portable dewatering applications - This pump can do it all
Environmentally Sound - Bolted construction for leak-free fluid handling
Serviceability - Easy access to ball checks and fluid caps for maintenance and repairs
In stock
Only 3 left
SKU
IR-666302-EEB-C
INCLUDES
(1) ARO 666302-EEB-C DOUBLE DIAPHRAGM PUMP
PRODUCT DESCRIPTION
A double diaphragm pump is a positive displacement pump that uses a two sets of flexible membranes to pump fluids and a series of check valves to ensure fluid can only travel in one direction through the chamber. Pump cycling will begin as air pressure is applied. Air operated diaphragm pumps utilize a pressure differential in the air chambers to alternately create suction in the fluid chambers.
Product Description
ARO Pro Double Diaphragm Pumps provide peak performance in a small package. These positive displacement pumps are available in sizes ranging from 1" to 3" and flow rates up to 123 GPM (465 LPM). ARO offers a wide selection of corrosion resistant materials to accommodate even the most difficult applications and a patented stall resistant air valve that continuously keeps their pump running. The compact size of these ARO Diaphragm pump makes them ideal for OEM applications. Burt process equipment is the largest distributor of Ingersoll Rand ARO diaphragm pumps.
Pump Casing Materials:
Cast Iron
Aluminum
Stainless Steel
Diaphragm Materials:
Santoprene
PTFE (PTFE) w/ Santoprene backer
Nitrile
Hytrel
TECHNICAL SPECIFICATIONS
BRAND: ARO
PRODUCT TYPE: Pump
MATERIAL DIAPHRAGM: Santoprene
APPLICATION: Air Operated Pump
INLET/OUTLET CONNECTION TYPE: NPTF
INLET SIZE: 3 in
MATERIAL HOUSING: Aluminum
OUTLET SIZE: 3 in
SOLIDS HANDLING: 3/8 in
MATERIAL BALLS: Santoprene
MATERIAL SEATS: Santoprene
MAX AIR INLET PRESSURE: 120 psi (8.3 bar)
MAX FLOW: 237 gpm (897.1 lpm)
MAX FLUID PRESSURE: 120 psi (8.3 bar)
MAX TEMPERATURE: 350°F (176.7°C)
NOISE LEVEL: 86.3 dB(A)
NOTES: Diaphragm Pump,3In, NPT
DISPLACEMENT: Positive Displacement
Item Weight: 222.21lbs
Shipping Weight: 225lbs
(1) ARO 666302-EEB-C DOUBLE DIAPHRAGM PUMP
PRODUCT DESCRIPTION
A double diaphragm pump is a positive displacement pump that uses a two sets of flexible membranes to pump fluids and a series of check valves to ensure fluid can only travel in one direction through the chamber. Pump cycling will begin as air pressure is applied. Air operated diaphragm pumps utilize a pressure differential in the air chambers to alternately create suction in the fluid chambers.
Product Description
ARO Pro Double Diaphragm Pumps provide peak performance in a small package. These positive displacement pumps are available in sizes ranging from 1" to 3" and flow rates up to 123 GPM (465 LPM). ARO offers a wide selection of corrosion resistant materials to accommodate even the most difficult applications and a patented stall resistant air valve that continuously keeps their pump running. The compact size of these ARO Diaphragm pump makes them ideal for OEM applications. Burt process equipment is the largest distributor of Ingersoll Rand ARO diaphragm pumps.
Pump Casing Materials:
Cast Iron
Aluminum
Stainless Steel
Diaphragm Materials:
Santoprene
PTFE (PTFE) w/ Santoprene backer
Nitrile
Hytrel
TECHNICAL SPECIFICATIONS
BRAND: ARO
PRODUCT TYPE: Pump
MATERIAL DIAPHRAGM: Santoprene
APPLICATION: Air Operated Pump
INLET/OUTLET CONNECTION TYPE: NPTF
INLET SIZE: 3 in
MATERIAL HOUSING: Aluminum
OUTLET SIZE: 3 in
SOLIDS HANDLING: 3/8 in
MATERIAL BALLS: Santoprene
MATERIAL SEATS: Santoprene
MAX AIR INLET PRESSURE: 120 psi (8.3 bar)
MAX FLOW: 237 gpm (897.1 lpm)
MAX FLUID PRESSURE: 120 psi (8.3 bar)
MAX TEMPERATURE: 350°F (176.7°C)
NOISE LEVEL: 86.3 dB(A)
NOTES: Diaphragm Pump,3In, NPT
DISPLACEMENT: Positive Displacement
Item Weight: 222.21lbs
Shipping Weight: 225lbs
| SKU | IR-666302-EEB-C |
|---|---|
| Weight | 225.000000 |
| Manufacturer | INGERSOLL RAND |
