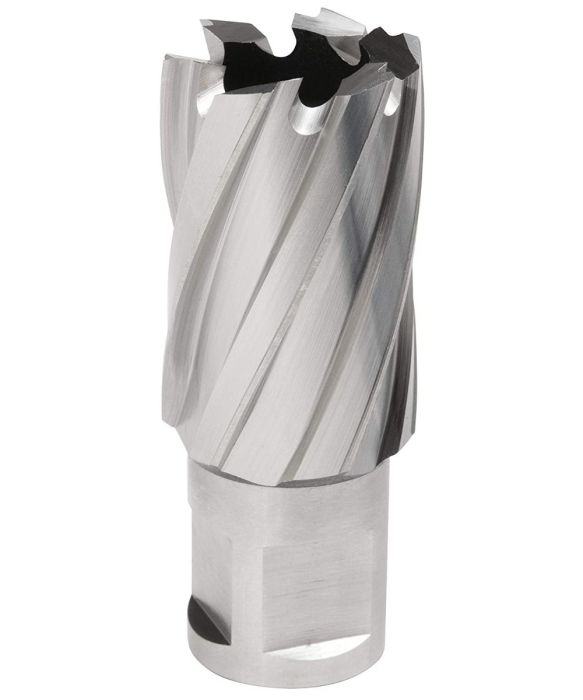

BIT 15/16"X1"HSS SCREWMNT
PRODUCT FEATURES
TWO FLATS FOR CUTTER MOUNTING ā This system is very rigid and offers up to 2x the tool life as compared to quick change or one touch tool mounting systems.
GROUNDED & FULLY FLUTED ā Provides better chip evacuation, requires less HP and offers better performance in deeper holes
O.D. MARGINS ā Only a thin area of material touches the outside of the hole which provides for less friction and a better hole finish.
PATENTED HOUGEN-EDGE GEOMETRY ā Provides faster, smoother cuts, with less chatter. Each tooth has two or three angles.
I.D. TAPER ā Relief area between slug and cutter. Reduces horsepower and improves slug ejection. PILOT IS NOT INCLUDED USE WITH PILOT HOUGEN 10527.
INCLUDES
(1) Hougen 12130 15/16 Inch Diameter x 1 Inch Depth of Cut 12,000-Series
TWO FLATS FOR CUTTER MOUNTING ā This system is very rigid and offers up to 2x the tool life as compared to quick change or one touch tool mounting systems.
GROUNDED & FULLY FLUTED ā Provides better chip evacuation, requires less HP and offers better performance in deeper holes
O.D. MARGINS ā Only a thin area of material touches the outside of the hole which provides for less friction and a better hole finish.
PATENTED HOUGEN-EDGE GEOMETRY ā Provides faster, smoother cuts, with less chatter. Each tooth has two or three angles.
I.D. TAPER ā Relief area between slug and cutter. Reduces horsepower and improves slug ejection. PILOT IS NOT INCLUDED USE WITH PILOT HOUGEN 10527.
INCLUDES
(1) Hougen 12130 15/16 Inch Diameter x 1 Inch Depth of Cut 12,000-Series
In stock
Only 2 left
SKU
HOUG-12130
Attachments (1)
PRODUCT DESCRIPTION
For use with HougenĀ® Portable Magnetic Drills and many competitive models on materials up to 275 BHN (28.5 HRC). They are made of hardened M2 high-speed steel and are precision ground for excellent performance throughout the cut and long tool life. They require less horsepower and thrust to cut, and last much longer than traditional holemaking methods. "12,000-Series" cutters have a 3/4" diameter double-flatted shank. Modified end tooth geometry is also available for drilling in stacked plate applications. For extended tool life and lower cost per hole 12,000-Series Cutters are resharpenable.
Benefits
Makes large diameter holes efficiently without the mess of chips
A hole produces a slug of material that could be used for another job
TECHNICAL SPECIFICATIONS
SKU: 12130
Brand: Hougen
Cutter Diameter (Inch): 15/16
Cutting Depth (Inch): 1
Tool Material: High-Speed Steel
Connection Type: Weldon
Connection Size: 3/4 in
Coating/Finish: Bright/Uncoated
Cutter Diameter (Decimal Inch): 0.9375
Shank Diameter (Inch): 3/4
Shank Type: Weldon Flat
Cutter Material: High Speed Steel
Number of Flats: 2
Material Application: Mild Steel; Steel
Item Weight: 0.49lbs
Shipping Weight: 1lb
For use with HougenĀ® Portable Magnetic Drills and many competitive models on materials up to 275 BHN (28.5 HRC). They are made of hardened M2 high-speed steel and are precision ground for excellent performance throughout the cut and long tool life. They require less horsepower and thrust to cut, and last much longer than traditional holemaking methods. "12,000-Series" cutters have a 3/4" diameter double-flatted shank. Modified end tooth geometry is also available for drilling in stacked plate applications. For extended tool life and lower cost per hole 12,000-Series Cutters are resharpenable.
Benefits
Makes large diameter holes efficiently without the mess of chips
A hole produces a slug of material that could be used for another job
TECHNICAL SPECIFICATIONS
SKU: 12130
Brand: Hougen
Cutter Diameter (Inch): 15/16
Cutting Depth (Inch): 1
Tool Material: High-Speed Steel
Connection Type: Weldon
Connection Size: 3/4 in
Coating/Finish: Bright/Uncoated
Cutter Diameter (Decimal Inch): 0.9375
Shank Diameter (Inch): 3/4
Shank Type: Weldon Flat
Cutter Material: High Speed Steel
Number of Flats: 2
Material Application: Mild Steel; Steel
Item Weight: 0.49lbs
Shipping Weight: 1lb
| SKU | HOUG-12130 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | HOUGEN |
