BIT CSINK REP #14 1/4"HSS

PRODUCT DESCRIPTION:

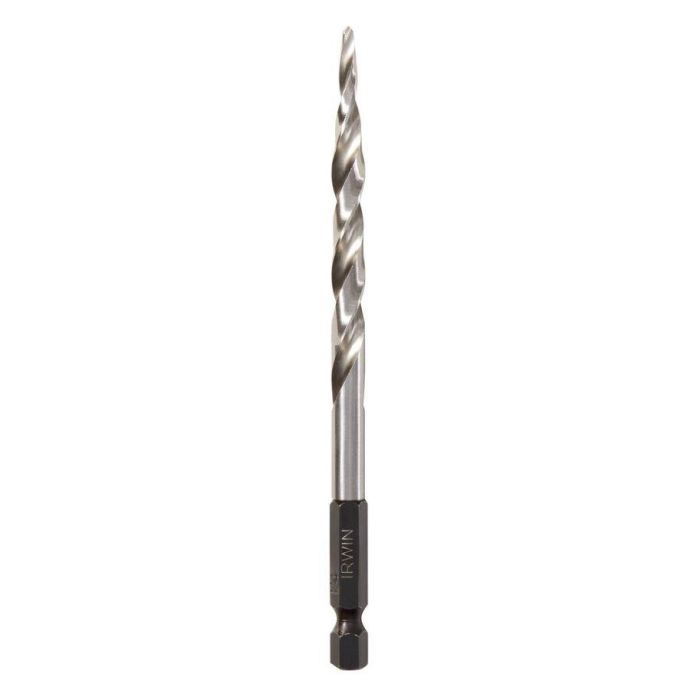

The Irwin 1882791 is a replacement wood countersink drill bit designed for flush screw seating in woodworking. It is a tapered drill with widened flutes to drive fast and clear out chips cleanly. It comes with a ¼-inch quick-change shank, which helps reduce slippage in typical chucks and is compatible with all ¼-inch quick-change systems (including impact drills). The bit includes an adjustable four-cutter counterbore, which can be set for depth and helps smooth out the countersink recess. The counterbore attaches to flats on the shank via two hex screws for a secure fit.

ADDITIONAL FEATURES:

Combines pilot drilling and countersinking with control, reducing tool changes

Widened flutes improve chip removal and reduce clogging

As a replacement bit, more cost-effective than replacing full tool

Quick-change shank helps prevent bit slippage in standard chucks

INSIGHTS:

Use moderate speeds when drilling, particularly in hardwoods, to avoid burning wood or dulling the bit

Periodically retract the bit to clear chips from flutes and counterbore area

Maintain sharpness — once finish quality degrades (tear-out, rough edges), sharpen or replace the bit

Store the bit clean and dry to avoid corrosion and preserve longevity

TECHNICAL SPECIFICATIONS:

Brand: IRWIN

Item Model Number: 1882791

Product Type: Countersink Replacement Bit

Bit Material: High Speed Steel

Drill Type: Tapered

Bit Diameter: 1/4"

Shank Diameter: 1/4"

Thread: #14

Overall Length: 5.2"

Shank Configuration: Quick Change

Shank Type: Hex Shank

Flute Type: Widened

Point Style: Taper Point

Measurement System: Metric

Application: Woodworking

Shipping Weight: 1 lb
