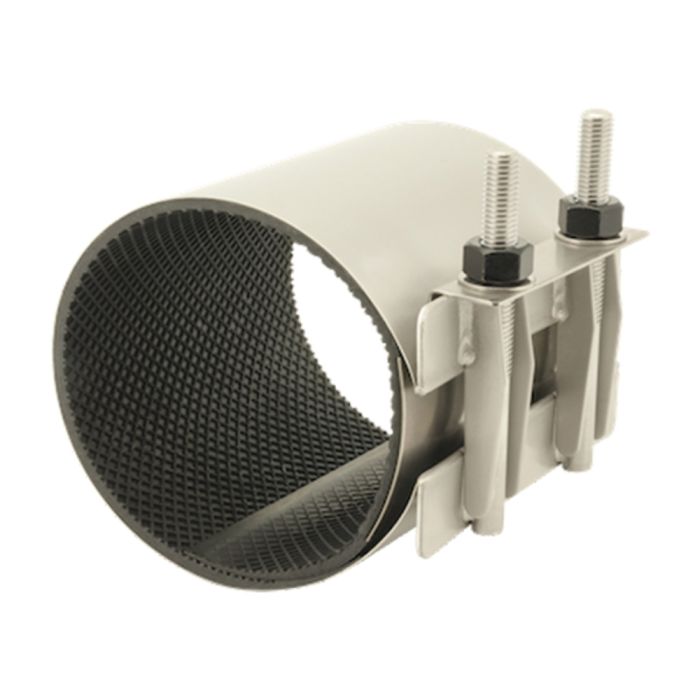

BLACKPAW PIPE CLAMP 2"X6" STAINLESS STEEL 59-67MM 150MM
The Stainless Steel Pipe Repair Clamp is a high-integrity, corrosion-resistant clamp designed for the quick and permanent sealing of leaks on pressurized pipelines. Suitable for use in oil refineries, petrochemical plants, and process industries, this clamp provides a safe, durable, and maintenance-free solution for repairing pinholes, corrosion damage, and longitudinal or circumferential cracks without the need for pipeline shutdown.
Whether for industrial, municipal, or residential applications, the CR Series delivers a fast, secure, and long-lasting repair—when downtime is not an option.
Complies with AS 4181-2013, Q/DZH 0001-2015, MSS SP-58, SP-69/SP-89 Standards
Key Features:
Rapid installation without pipeline shutdown
Permanent and leak-tight repair for pressurized systems
Fully corrosion-resistant stainless steel design
NBR sealing for compatibility with crude oil, diesel, and lubricants
Brushed or passivated stainless steel finish
Available in single or multi-band versions for larger diameters
Tapered ends for smooth stress distribution on pipe surface
Suitable for both aboveground and buried pipelines
In stock
Only 1 left
SKU
TAI-CR-1-50A
The Stainless Steel Pipe Repair Clamp is a high-integrity, corrosion-resistant clamp designed for the quick and permanent sealing of leaks on pressurized pipelines. Suitable for use in oil refineries, petrochemical plants, and process industries, this clamp provides a safe, durable, and maintenance-free solution for repairing pinholes, corrosion damage, and longitudinal or circumferential cracks without the need for pipeline shutdown.
Whether for industrial, municipal, or residential applications, the CR Series delivers a fast, secure, and long-lasting repair—when downtime is not an option.
TYPICAL PROPERTIES
Product Name: Full Circle Stainless Steel Pipe Repair Clamp
Material: Stainless Steel AISI 304 or 316L NBR (Nitrile Butadiene Rubber)
Standards: AS 4181-2013, Q/DZH 0001-2015, MSS SP-58 & SP-69/SP-89
| Clamp Body Material | Stainless Steel AISI 304 or 316L |
| Sealing Material | NBR (Nitrile Butadiene Rubber), oil-resistant |
| Temperature Range | –20°C to +100°C (continuous), up to 120°C (short-term) |
| Pressure Rating | Up to 16 bar (232 psi), depending on pipe size and wall thickness |
| Pipe Compatibility | Carbon Steel, Stainless Steel, Ductile Iron, PVC |
| Size Range | DN25 (1") to DN600 (24") and above (custom sizes available) |
| Clamp Width Options | 75 mm, 100 mm, 150 mm, 200 mm, or custom |
| Rubber Hardness | 70 ± 5 Shore A |
| Fasteners | Stainless Steel Bolts and Nuts (ASTM A193 B8/B8M & A194 8/8M) |
| Material Standards | ASTM A240 (Clamp Body), ASTM A312/A269 (Pipe Shell), ASTM D2000 (NBR Rubber) |
| Design Standards | AS 4181-2013, Q/DZH 0001-2015, MSS SP-58, SP-69/SP-89 |
| Testing Standards | Hydrostatic Testing per ASME B31.3 and MSS SP-89 |

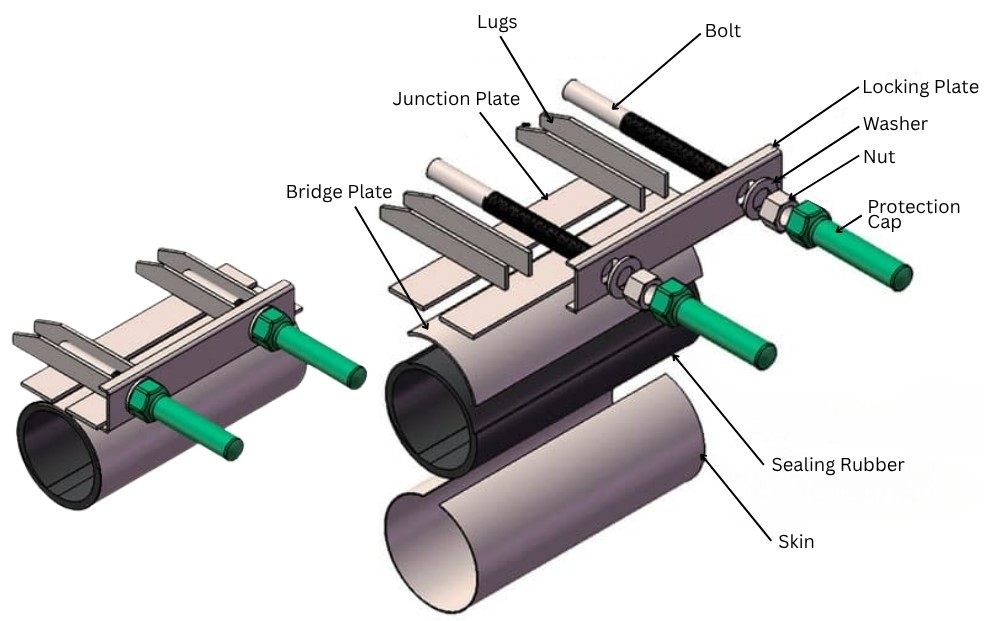

DIAGRAM

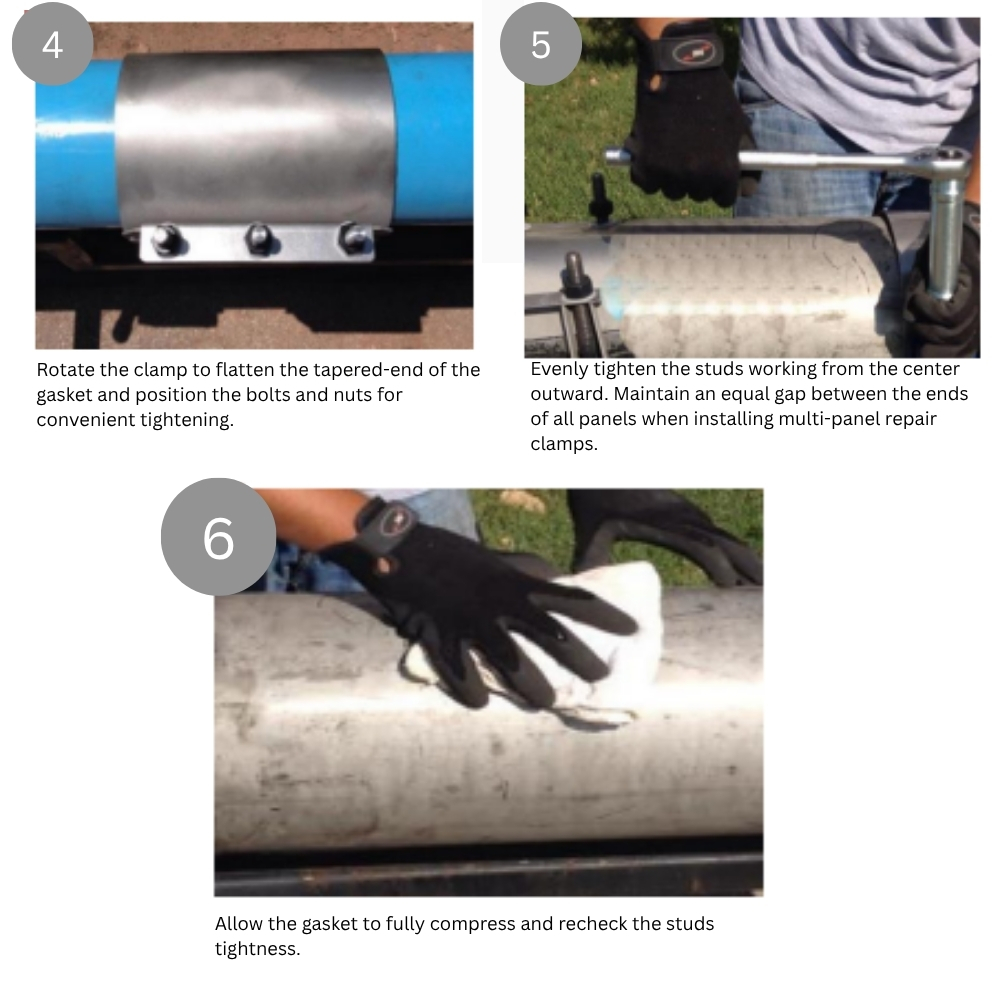

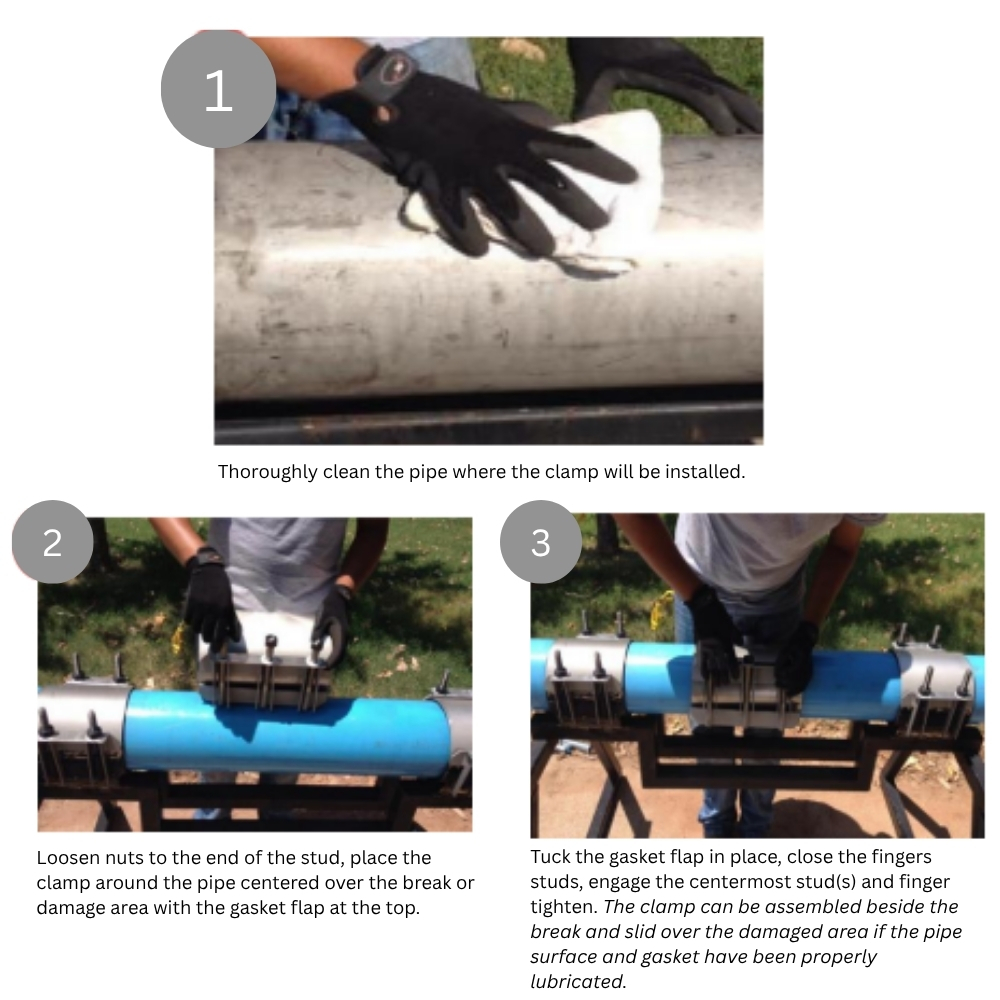

Installation Procedure
Watch BlackPaw Pipe Clamp video

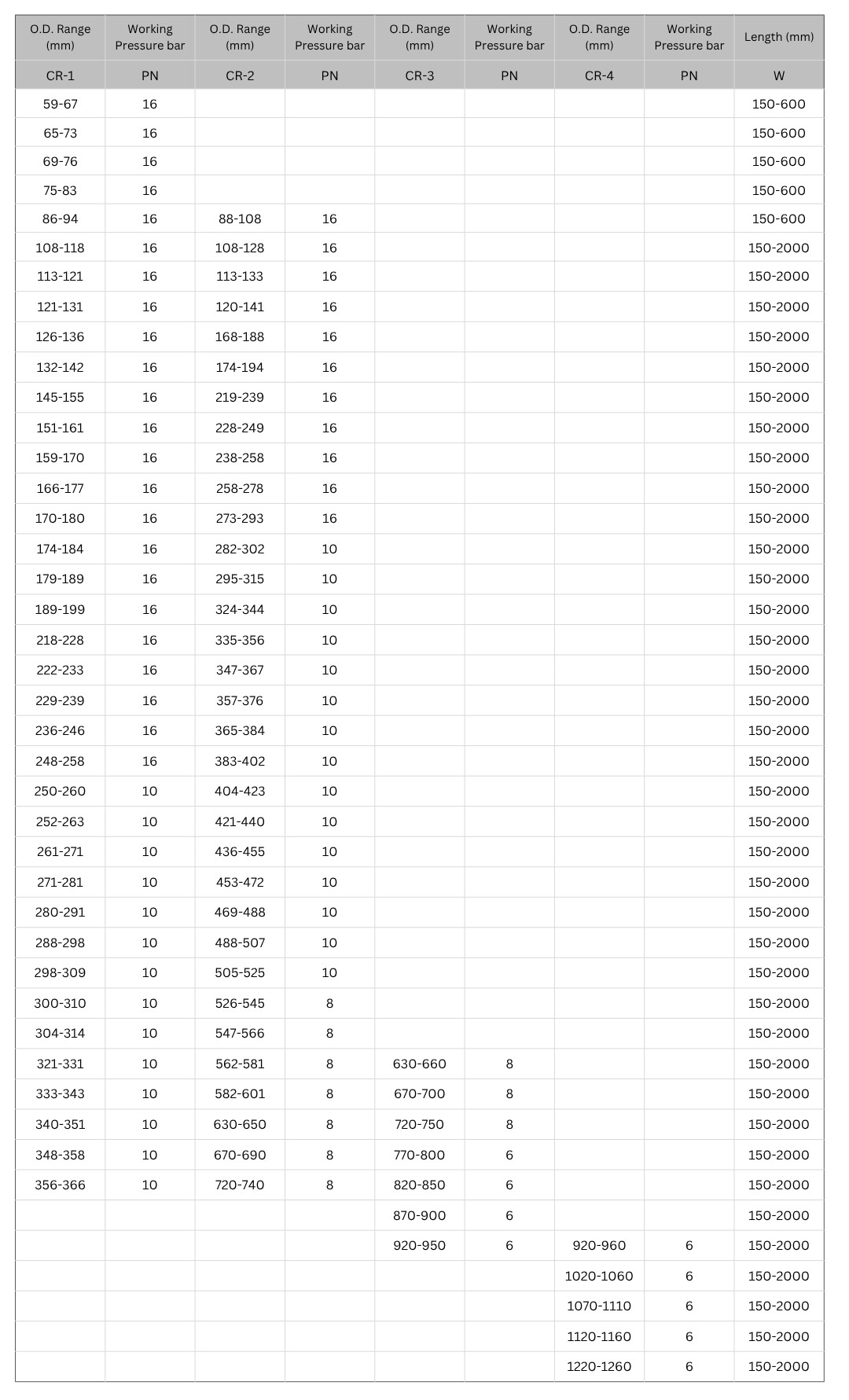

Size & Pressure Rating Table
| SKU | TAI-CR-1-50A |
|---|---|
| Weight | 4.000000 |
| Manufacturer | BLACK PAW |
