BLADE 8.25"X 5/8"24T FRAM FRAME/GENP.094K.063PLAT
PRODUCT FEATURES:
Designed for framing and general wood cutting in construction projects.
8‑1/4″ diameter with 24 ATB carbide teeth for effective rip and cross‑cuts.
TiCo™ Hi‑Density Carbide cutting edge enhances durability and cutting performance.
Super‑thin laser‑cut kerf (0.094 in) reduces power demand and waste.
Perma‑Shield® non‑stick coating reduces heat, gumming, and corrosion.
Tri‑metal shock‑resistant brazing increases impact resistance of carbide tips.
Hardened steel body improves blade life and supports consistent tooth performance.
Suitable for ripping rough lumber, plywood, OSB, hardboard siding, and similar materials.
In stock
Only 8 left
SKU
DB-D0824X
PRODUCT DESCRIPTION:

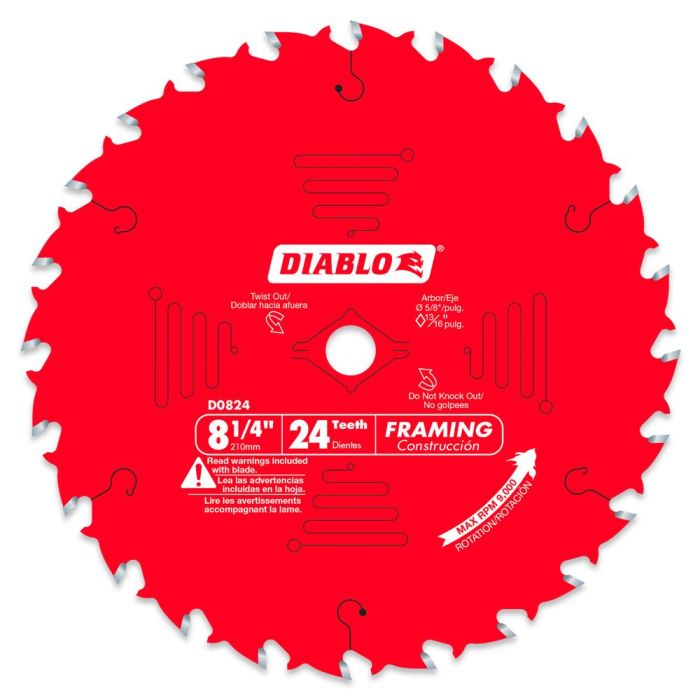

The Diablo D0824X is an 8‑1/4″ diameter carbide‑tipped circular saw blade engineered for general construction and framing wood cutting applications. It features 24 ATB (Alternate Top Bevel) teeth and a super‑thin laser‑cut kerf to reduce cutting resistance while producing smooth, fast cuts through lumber, plywood, OSB, hardboard, and similar materials. Its TiCo™ high‑density carbide cutting edge combined with a Perma‑Shield® non‑stick coating offers durability, corrosion resistance, and extended cutting life for frequent jobsite use.
TECHNICAL SPECIFICATIONS:
Brand: DIABLO
Item Model Number: D0824X
Product Type: Circular Saw Blade
Blade Material: Carbide Tipped Steel
Blade Diameter: 8.25"
Number of Teeth: 24 ATB
Grind Type: Alternate Top Bevel
Arobor Size: 5/8"
Kerf: 0.094"
Hook Angle: 15º
Plate Thickness: 0.063"
Max RPM: 8,000
Color: Red
Material Applications: Framing lumber, Plywood, OSB, Hardboard, General Wood Materials
Shipping Weight: 1.2 lbs
| SKU | DB-D0824X |
|---|---|
| Weight | 1.200000 |
| Manufacturer | DIABLO |
