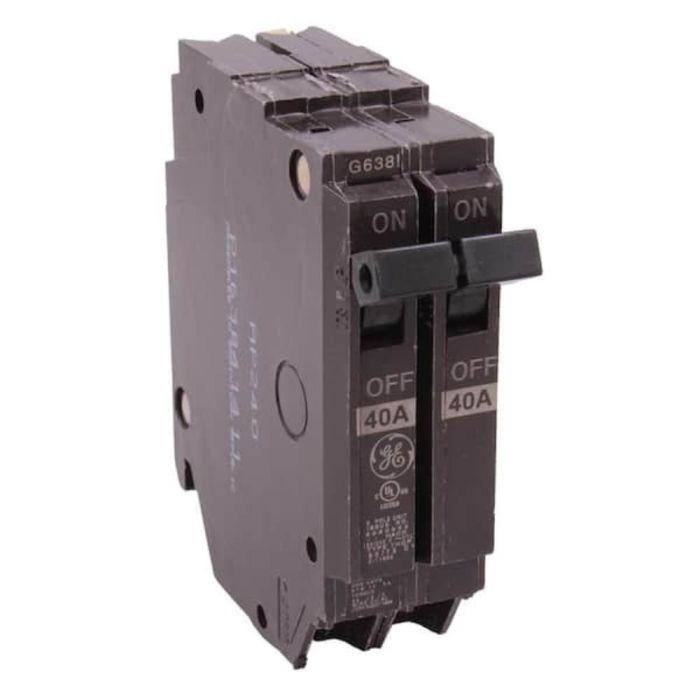

BREAKER 40A D/P H/SIZE
PRODUCT FEATURES
Tin-plated copper stabs create reliable, permanent and corrosion-resistant connections
Box type terminals
Calibration screw is cemented to prevent shifting
Case is made of heat-resistant thermoset for stability and structural integrity
Trips to the center position
Meets NEMA standards
ANSI certified and CSA and UL Listed
Tin-plated copper stabs create reliable, permanent and corrosion-resistant connections
Box type terminals
Calibration screw is cemented to prevent shifting
Case is made of heat-resistant thermoset for stability and structural integrity
Trips to the center position
Meets NEMA standards
ANSI certified and CSA and UL Listed
In stock
Only 9 left
SKU
GE-THQP240
TTD169.00
INCLUDES
(1) Connecticut Electric GETHQP240 GE THQP240 2P 40A 120/240 PLG-IN CB, No Size, Black
PRODUCT DESCRIPTION
This 120/240 volt GE 40 amp, double pole, thin series replacement circuit breaker is used in a General Electric load center. Typical applications, up to 8,800 watts, include electric baseboard heat, fan forced heat and 240 volt air conditioners (up to 23,000 BTU). These are only suggested applications and cannot assure compliance with all local codes. Please check local electrical codes before starting any electrical project.
TECHNICAL SPECIFICATIONS
Brand: ?GE
Current Rating: ?40 Amps
Voltage: ?240 Volts
Circuit Breaker Type: ?Standard
Mounting Type: ?Plug-In Mount
Number Of Poles: ?2
Manufacturer: ?General Electric
Part Number: ?THQP240
Item Weight: 0.4lbs
Product Dimensions: ?5 x 10 x 8 inches
Item model number: ?GETHQP240
Size: ?No Size
Color: ?Black
Material: ?Plastic
Shipping Weight: 1lb
(1) Connecticut Electric GETHQP240 GE THQP240 2P 40A 120/240 PLG-IN CB, No Size, Black
PRODUCT DESCRIPTION
This 120/240 volt GE 40 amp, double pole, thin series replacement circuit breaker is used in a General Electric load center. Typical applications, up to 8,800 watts, include electric baseboard heat, fan forced heat and 240 volt air conditioners (up to 23,000 BTU). These are only suggested applications and cannot assure compliance with all local codes. Please check local electrical codes before starting any electrical project.
TECHNICAL SPECIFICATIONS
Brand: ?GE
Current Rating: ?40 Amps
Voltage: ?240 Volts
Circuit Breaker Type: ?Standard
Mounting Type: ?Plug-In Mount
Number Of Poles: ?2
Manufacturer: ?General Electric
Part Number: ?THQP240
Item Weight: 0.4lbs
Product Dimensions: ?5 x 10 x 8 inches
Item model number: ?GETHQP240
Size: ?No Size
Color: ?Black
Material: ?Plastic
Shipping Weight: 1lb
| SKU | GE-THQP240 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | GENERAL ELECTRIC |
