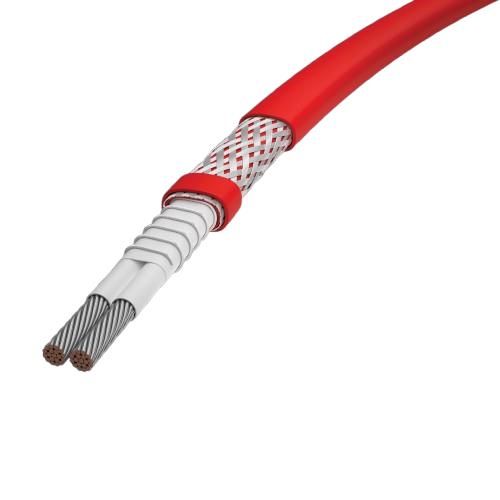

CABLE HEAT TRACING NVENT ITEM # VPL-5VPL1-CT
PRODUCT FEATURES
Efficient system design: high power output at elevated temperatures reduces heating cable required, flat P-T curve results in lower T start up and power equipment costs, longer circuit lengths due to larger cross section conductors
Maximum circuit length further increases when operating at higher voltages: reducing the number of circuits and power supply equipment
Fast installation: cut-to-length, multiple overlaps allowed, meter markings, user-friendly connections kits
Safe and efficient in operation: no overheating, uniform pipe temperatures, energy saving technology
INCLUDES
(1) VPL Power-Limiting Heating Cable
Efficient system design: high power output at elevated temperatures reduces heating cable required, flat P-T curve results in lower T start up and power equipment costs, longer circuit lengths due to larger cross section conductors
Maximum circuit length further increases when operating at higher voltages: reducing the number of circuits and power supply equipment
Fast installation: cut-to-length, multiple overlaps allowed, meter markings, user-friendly connections kits
Safe and efficient in operation: no overheating, uniform pipe temperatures, energy saving technology
INCLUDES
(1) VPL Power-Limiting Heating Cable
In stock
Only 12 left
SKU
NVNT-VPL5VPL1CT
PRODUCT DESCRIPTION
nVent RAYCHEM VPL power-limiting trace heating cables are mainly used for process temperature maintenance applications that require steam cleaning, up to 455 °F/235 °C and withstand intermittent exposure to 500 °F/260 °C. VPL offers high power output at high temperatures, which can reduce the number of heating cables required and is hazardous area approved. Also suitable for freeze protection. The fluoropolymer outer jacket (-CT) provides high chemical resistance against aggressive organics and corrosives.
Applications for VPL heating cable: Water supply and drainage pipes
Process piping
Firefighting and sprinkler systems
Emergency showers and eye showers
Advanced and Comprehensive Technology
Frost protection
Area Classification:
Hazardous, Zone 1, Zone 2 (Gas), Zone 21, Zone 22 (Dust)
Ordinary
Chemical resistance:
Organics and corrosives
For aggressive organics and corrosives consult your local Pentair representative
Approvals
The VPL heating cables are approved for use in hazardous areas by Baseefa Ltd.
Baseefa06ATEX0188X & IECExBAS06.0048X
II 2GD & Exe II T (see schedule) Ex tD A21 IP66
Ex e II T (see schedule) Ex tD A21 IP66Ã
Maximum Circuit Length
Based on type 'C' circuit breakers according to EN 60898
TECHNICAL SPECIFICATIONS
SKU: VPL5VPL1CT
Brand: Nvent
Max Continuous Exposure Temperature, Power Off: 260 °C
Max Cumulative Hours for Intermittent Exposure: 1000 h
Min Installation Temperature: -60 °C
Ground Path Type: Braid
Area Classification: Non-Hazardous; Hazardous
Outer Jacket Material: High Temperature Fluoropolymer
Item Weight: 4.8lbs
Shipping Weight: 5lbs
nVent RAYCHEM VPL power-limiting trace heating cables are mainly used for process temperature maintenance applications that require steam cleaning, up to 455 °F/235 °C and withstand intermittent exposure to 500 °F/260 °C. VPL offers high power output at high temperatures, which can reduce the number of heating cables required and is hazardous area approved. Also suitable for freeze protection. The fluoropolymer outer jacket (-CT) provides high chemical resistance against aggressive organics and corrosives.
Applications for VPL heating cable: Water supply and drainage pipes
Process piping
Firefighting and sprinkler systems
Emergency showers and eye showers
Advanced and Comprehensive Technology
Frost protection
Area Classification:
Hazardous, Zone 1, Zone 2 (Gas), Zone 21, Zone 22 (Dust)
Ordinary
Chemical resistance:
Organics and corrosives
For aggressive organics and corrosives consult your local Pentair representative
Approvals
The VPL heating cables are approved for use in hazardous areas by Baseefa Ltd.
Baseefa06ATEX0188X & IECExBAS06.0048X
II 2GD & Exe II T (see schedule) Ex tD A21 IP66
Ex e II T (see schedule) Ex tD A21 IP66Ã
Maximum Circuit Length
Based on type 'C' circuit breakers according to EN 60898
TECHNICAL SPECIFICATIONS
SKU: VPL5VPL1CT
Brand: Nvent
Max Continuous Exposure Temperature, Power Off: 260 °C
Max Cumulative Hours for Intermittent Exposure: 1000 h
Min Installation Temperature: -60 °C
Ground Path Type: Braid
Area Classification: Non-Hazardous; Hazardous
Outer Jacket Material: High Temperature Fluoropolymer
Item Weight: 4.8lbs
Shipping Weight: 5lbs
| SKU | NVNT-VPL5VPL1CT |
|---|---|
| Weight | 5.000000 |
| Manufacturer | NVENT |
