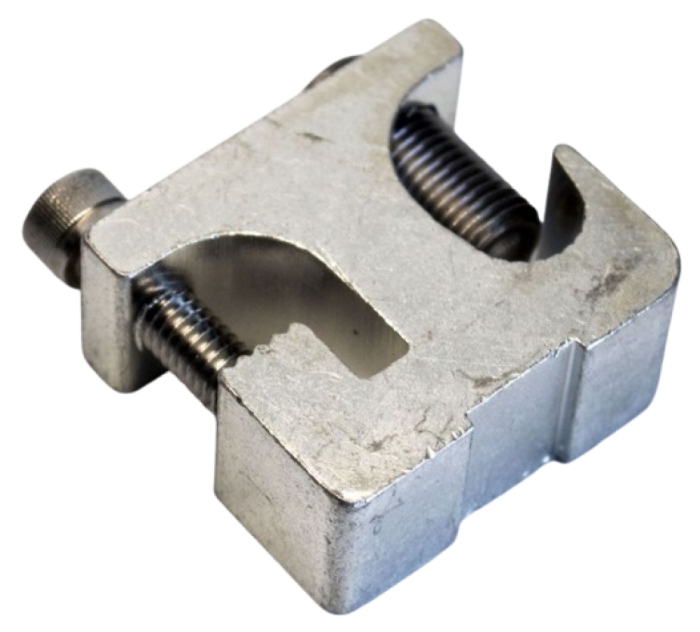

CLAMP ALUM I-BEAM #6 AWG
PRODUCT FEATURES
FLANGE THICKNESS
.080" TO 0.50"
WIRE RANGE
#6 to #1 SOLID
#6 TO 250 MCM STRANDED
LAY-IN CAPABILITY
BODY MATERIAL: 6061-T6 ALUMINUM, TIN-PLATED
SCREW MATERIAL: 18-8 STAINLESS STEEL
UL LISTED UL467, CU WIRE ONLY
SCREW PENETRATES BEAM SURFACE PAINT/OXIDE FOR
ELECTRICAL CONTACT
INCLUDES
(1) Greaves GBC250-A-SS Grounding Clamp
FLANGE THICKNESS
.080" TO 0.50"
WIRE RANGE
#6 to #1 SOLID
#6 TO 250 MCM STRANDED
LAY-IN CAPABILITY
BODY MATERIAL: 6061-T6 ALUMINUM, TIN-PLATED
SCREW MATERIAL: 18-8 STAINLESS STEEL
UL LISTED UL467, CU WIRE ONLY
SCREW PENETRATES BEAM SURFACE PAINT/OXIDE FOR
ELECTRICAL CONTACT
INCLUDES
(1) Greaves GBC250-A-SS Grounding Clamp
In stock
Only 2 left
SKU
GREAV-GBC250ASS
TTD439.00
PRODUCT DESCRIPTION
Tin Plated Aluminum Material; 1.8 Inch; I-Beam Flange Used on; UL 467 Approval; 6 AWG to 250 MCM Conductor Size; 0.08 to 0.575 Inch Bar Thickness; Size 0.87 Inch Length X 2 Inch Width; GBCA Model
TECHNICAL SPECIFICATIONS
Tin Plated Aluminum Material
1.8 Inch I-Beam Flange Used on: UL 467 Approval
6 AWG to 250 MCM
Conductor Size; 0.08 to 0.575 Inch
Bar Thickness: Size 0.87 Inch
Length X 2 Inch Width
GBCA Model
Item Weight: 0.8lbs
Shipping Weight: 1lb
Tin Plated Aluminum Material; 1.8 Inch; I-Beam Flange Used on; UL 467 Approval; 6 AWG to 250 MCM Conductor Size; 0.08 to 0.575 Inch Bar Thickness; Size 0.87 Inch Length X 2 Inch Width; GBCA Model
TECHNICAL SPECIFICATIONS
Tin Plated Aluminum Material
1.8 Inch I-Beam Flange Used on: UL 467 Approval
6 AWG to 250 MCM
Conductor Size; 0.08 to 0.575 Inch
Bar Thickness: Size 0.87 Inch
Length X 2 Inch Width
GBCA Model
Item Weight: 0.8lbs
Shipping Weight: 1lb
| SKU | GREAV-GBC250ASS |
|---|---|
| Weight | 1.000000 |
