CLEANER/DRYER AIR 3/8PORT
PRODUCT FEATURES:
Type: Air Cleaner and Desiccant Dryer
Port Size: 3/8 inch
Maximum Pressure: 150 PSI
Maximum Temperature: 125°F
Filtration: Oil Removal and Desiccant Drying
Application: Compressed Air Systems and Spray Painting
Function: Removes contaminants, oil aerosols, and water vapor from compressed air
In stock
Only 15 left
SKU
CAM-PA208503AV
TTD1,499.00
PRODUCT DESCRIPTION:

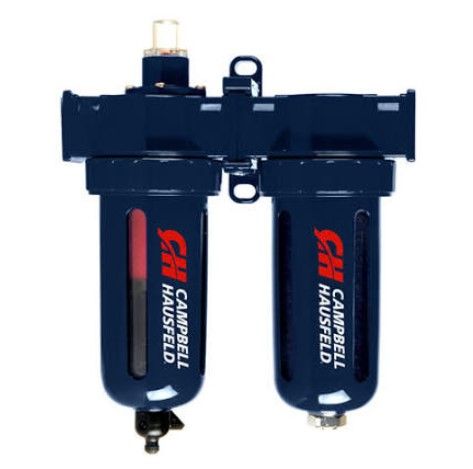

The Campbell Hausfeld PA208503AV is an air cleaner and dryer system designed to remove dirt, contaminants, oil vapors, and water from compressed air. The two-stage system combines a coalescing filter with a desiccant dryer to provide cleaner and moisture-free air for applications such as spray painting and operating sensitive pneumatic equipment.
The system uses Campbell Hausfeld PA2086 desiccant packs to remove water vapor. The desiccant changes color when it needs to be replaced or recharged, while the clear bowl allows the user to monitor the desiccant. A protective metal guard helps protect the bowl from impact, and the quarter-turn drain simplifies maintenance.
TECHNICAL SPECIFICATIONS:
Model: PA208503AV
Manufacturer: Campbell Hausfeld
Product Type: Air Cleaner and Dryer
Port Size: 3/8 inch
Maximum Pressure: 150 PSI
Maximum Temperature: 125°F
Filtration Type: Coalescing Filter and Desiccant Dryer
Oil Removal: 99.9% of Oil Aerosols
Desiccant Type: PA2086
Bowl Type: Clear Quick-Release Bowl
Drain Type: Quarter-Turn Drain
Protective Guard: Metal
Material: Plastic and Metal
Application: Compressed Air Systems, Spray Painting, and Pneumatic Equipment
Dimensions: 10.8 in H x 3.1 in W x 7.3 in D
Shipping Weight: 4 lbs
| SKU | CAM-PA208503AV |
|---|---|
| Weight | 4.000000 |
| Manufacturer | CAMPBELL HAUSFELD |
