CLIPS 1" WSS-GG1A SS
PRODUCT FEATURES

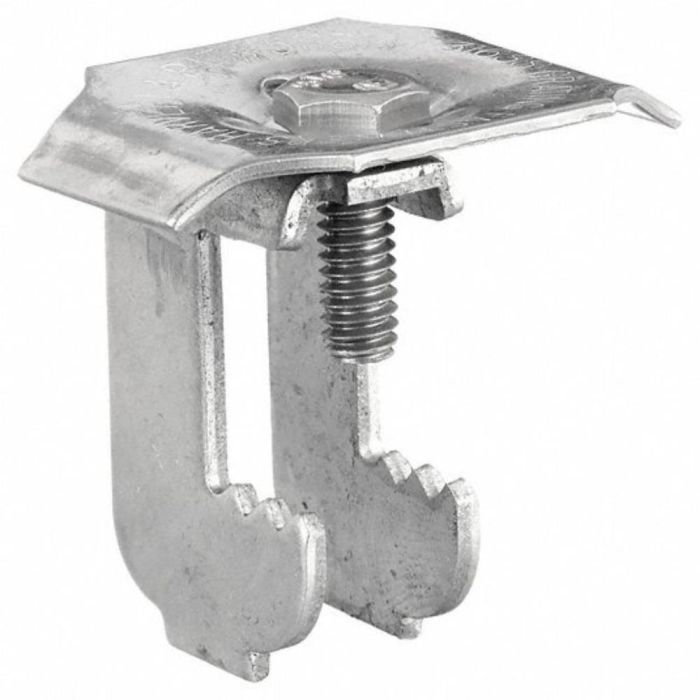

G clips consist of an upper saddle that connects to a bottom portion using a hex headed cap screw.
A variety of saddles are available for use with different grating spacing sizes.
The lower component connects to the underside of the structural beam, holding the grating firmly in place.
Multiple screw lengths are available for use with grating assemblies of varying depths — use longer screws for deeper grating.
G clips consist of an upper saddle that connects to a bottom portion using a hex headed cap screw.
A variety of saddles are available for use with different grating spacing sizes.
The lower component connects to the underside of the structural beam, holding the grating firmly in place.
Multiple screw lengths are available for use with grating assemblies of varying depths — use longer screws for deeper grating.
In stock
Only 165 left
SKU
SGI-WSS-GG1A
INCLUDES
(1) GRATING FASTENERS WSS-GG-1A Grating Clip - 1" STAINLESS STEEL
PRODUCT DESCRIPTION
G clips are used to fasten bar grating products directly to the edge of a structural steel beam. They feature a three-part assembly that provides exceptional fastening strength while remaining fast and easy to install. A variety of configurations allows for a broad range of potential applications and a high level of overall flexibility.
TECHNICAL SPECIFICATIONS
Brand: APPROVED VENDOR
Type: G-Clip
Material: 316 Stainless Steel
Fits Bearing Bar Height: 1 in
Fits Support Thickness: 1/4 to 3/4 in
Fits Grating Opening Size: 1 in
For Screw Size: 1/4 in
Meets/Exceeds: ASTM A-240
Application: Fastens Grating To A Horizontal-Facing Steel Structural Member Edge
Includes: 1/4"-20 Hex Head Cap Screw
UNSPSC: 30103202
Item Weight: 6.9lbs
Shipping Weight: 7lbs
(1) GRATING FASTENERS WSS-GG-1A Grating Clip - 1" STAINLESS STEEL
PRODUCT DESCRIPTION
G clips are used to fasten bar grating products directly to the edge of a structural steel beam. They feature a three-part assembly that provides exceptional fastening strength while remaining fast and easy to install. A variety of configurations allows for a broad range of potential applications and a high level of overall flexibility.
TECHNICAL SPECIFICATIONS
Brand: APPROVED VENDOR
Type: G-Clip
Material: 316 Stainless Steel
Fits Bearing Bar Height: 1 in
Fits Support Thickness: 1/4 to 3/4 in
Fits Grating Opening Size: 1 in
For Screw Size: 1/4 in
Meets/Exceeds: ASTM A-240
Application: Fastens Grating To A Horizontal-Facing Steel Structural Member Edge
Includes: 1/4"-20 Hex Head Cap Screw
UNSPSC: 30103202
Item Weight: 6.9lbs
Shipping Weight: 7lbs
| SKU | SGI-WSS-GG1A |
|---|---|
| Weight | 1.000000 |
| Manufacturer | SISK GRATINGS |
