COMPRESSOR 80G 5HP 140PSI 16CFM@90PSI 220V 22A 1PH 1-STAGE
PRODUCT FEATURES:
Heavy Duty Cast Iron, Oil-Lubricated, Four Cylinder Single Stage Pump
ASME-certified 80 Gallon tank is a vertical design for space saving in the shop or garage
Four-cylinder, cast-iron pump is designed for long, reliable life of up to 10,000 hours
5-HP 208-230 Volt Electric Motor With Overload Protection
Operates over 20 air tools for automotive spray painting, automotive sanding work, cutting sheet metal, grind
Fully enclosed metal belt guard for safe operation
16.0 CFM @ 90 PSI
140 Max PSI
230 Volt, 22 Amp, 1PH, 60 Hz Electrical
Out of stock
SKU
CAM-TQ3104
TTD12,209.95
PRODUCT DESCRIPTION:

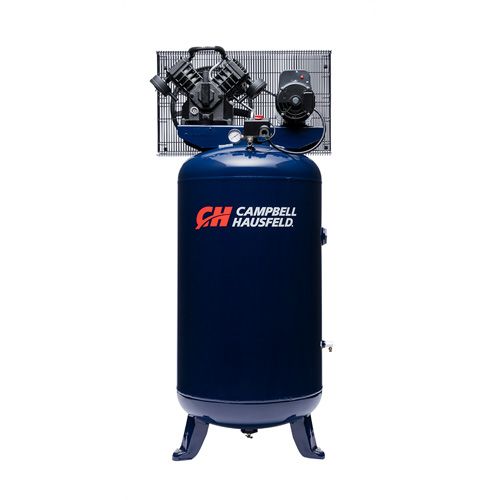

The Campbell Hausfeld 80-gallon, 5 hp, vertical air compressor (TQ3104) is ideal for a small shop, automotive enthusiast or serious DIY user. This air compressor has high air flow of 16 CFM @ 90 PSI to power a wide variety of air tools for grinding, sanding, painting and more. The durable, 80-gallon, ASME-certified tank is a vertical design for space saving in the shop or garage. A four-cylinder, cast-iron pump is designed for long, reliable life of up to 10,000 hours.
TECHNICAL SPECIFICATIONS:
Compressor Tank Style Vertical
Compressor Tank (Gallons) 80
Compressor Horsepower 5.00
Max PSI 135
Compressor SCFM@40PSI 17.30
Compressor SCFM@90PSI 16.00
Compressor SCFM@Max PSI 15.50
Compressor Voltage 230
Compressor Amps 22
Compressor Phase 1
Pump Type Single Stage
Pump Drive Belt Drive
Lubrication Oil Lube
Special Features Metal Belt guard
Compressor Duty Cycle 80/20
dBA @ 3ft 86
Power Source Electric Induction
UPC045564628321
Commercial No
Shipping Dimensions Length 31.00
Shipping Dimensions Width 43.00
Shipping Dimensions Height 81.00
Cube FT 62.48
UL Safety Listing Yes
CSA Safety Listing Yes
ETL Safety Listing No
Prop 65 Yes
Weight: 410 Lbs
Shippng Weight: 440 Lbs
| SKU | CAM-TQ3104 |
|---|---|
| Weight | 410.000000 |
| Manufacturer | CAMPBELL HAUSFELD |
