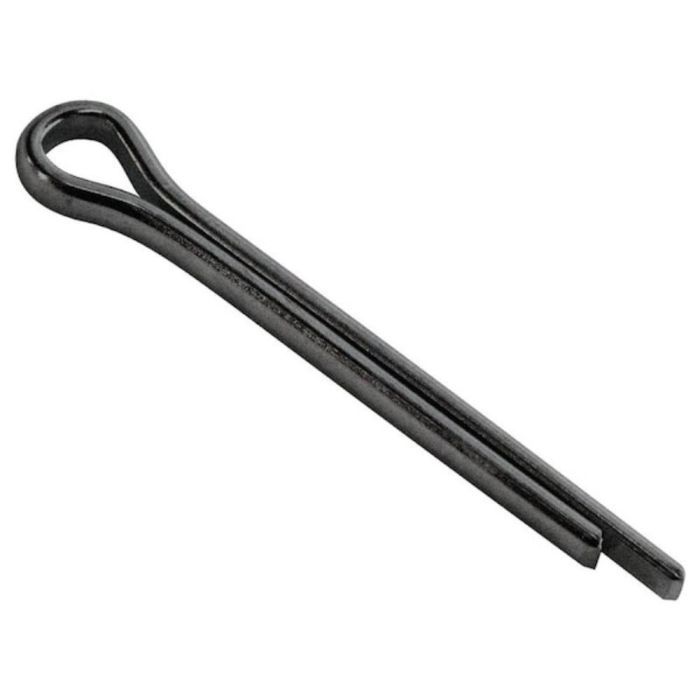

COTTER PIN 1/4"X6" CS ZN
PROODUCT FEATURES
Huyett offers complete lines of high-quality, attractively priced Heritage Industrial parts in a broad range of sizes, materials, and finishes
For quality without compromise, demand Heritage Industrial parts for your application
Standard cotter pins are formed steel pins that are inserted crosswise through a shank to keep an object from sliding off or keep a pin from pulling out and are held in place by bending the tines outward
This thin, externally applied layer of zinc provides resistance to corrosion and can give the part a slight tint of color
Carbon steel is an iron alloy with the main additive agent being carbon at up to 2% content level
Carbon steel is durable, affordable and generally easy to work with
Huyett offers complete lines of high-quality, attractively priced Heritage Industrial parts in a broad range of sizes, materials, and finishes
For quality without compromise, demand Heritage Industrial parts for your application
Standard cotter pins are formed steel pins that are inserted crosswise through a shank to keep an object from sliding off or keep a pin from pulling out and are held in place by bending the tines outward
This thin, externally applied layer of zinc provides resistance to corrosion and can give the part a slight tint of color
Carbon steel is an iron alloy with the main additive agent being carbon at up to 2% content level
Carbon steel is durable, affordable and generally easy to work with
In stock
Only 55 left
SKU
GLH-CP2506000
TTD29.00
INCLUDES
(1) Cotter Pin 1/4" x 6" Carbon Steel Zinc Clear ASME B18.8.1
PRODUCT DESCRIPTION
Cotter Pin,1/4 In. x 6 In.,Carbon Steel,Zinc
TECHNICAL SPECIFICATIONS
Item Weight: 0.075lbs
RoHS Compliant: Yes
HTS Number: 7318240000
Brand: Heritage
Width: .225 in
Effective Length: 6.000 in
Outside Diameter: .250 in
Inch or Metric: Inch
Finish: Zinc Clear
Material: Carbon Steel
Type: Cotter Pin
Width Maximum: .225 in
Width Minimum: .176 in
Effective Length Maximum: 6.060 in
Effective Length Minimum: 5.940 in
Outside Diameter Maximum: .230 in
Outside Diameter Minimum: .220 in
Head Diameter Minimum: .500 in
Prong Length Minimum: .110 in
Effective Length Fraction: 6 in
Outside Diameter Fraction: 1/4 in
Specification: ASME B18.8.1
Head Diameter Minimum Fraction: 1/2 in
Shipping Weight: 1lb
(1) Cotter Pin 1/4" x 6" Carbon Steel Zinc Clear ASME B18.8.1
PRODUCT DESCRIPTION
Cotter Pin,1/4 In. x 6 In.,Carbon Steel,Zinc
TECHNICAL SPECIFICATIONS
Item Weight: 0.075lbs
RoHS Compliant: Yes
HTS Number: 7318240000
Brand: Heritage
Width: .225 in
Effective Length: 6.000 in
Outside Diameter: .250 in
Inch or Metric: Inch
Finish: Zinc Clear
Material: Carbon Steel
Type: Cotter Pin
Width Maximum: .225 in
Width Minimum: .176 in
Effective Length Maximum: 6.060 in
Effective Length Minimum: 5.940 in
Outside Diameter Maximum: .230 in
Outside Diameter Minimum: .220 in
Head Diameter Minimum: .500 in
Prong Length Minimum: .110 in
Effective Length Fraction: 6 in
Outside Diameter Fraction: 1/4 in
Specification: ASME B18.8.1
Head Diameter Minimum Fraction: 1/2 in
Shipping Weight: 1lb
| SKU | GLH-CP2506000 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | HERITAGE |
