DISPENSE VALVE HIGH PRESS FOR PUMP DISPENSING
PRODUCT FEATURES
For high-viscosity adhesives approx 500,000 to 2,000,000 mPa·s
Can operate at fluid pressures of up to 2,175 psi (150 bar)
Stainless steel valve for long term, durable dispensing performance
Bubble-free, no-drip dispensing with suck-back control
Lightweight and durable; can be mounted or comfortably handheld
High resolution stroke adjustment
INCLUDES
(1) LOCTITE® High Pressure Dispense Valve - 1153502
(2) Air Line Tubing
(1) Fluid Outlet Tip Adapter
(1) Fluid Inlet Fitting,
(2) Air Input Fitting
(1) Operation Manual
For high-viscosity adhesives approx 500,000 to 2,000,000 mPa·s
Can operate at fluid pressures of up to 2,175 psi (150 bar)
Stainless steel valve for long term, durable dispensing performance
Bubble-free, no-drip dispensing with suck-back control
Lightweight and durable; can be mounted or comfortably handheld
High resolution stroke adjustment
INCLUDES
(1) LOCTITE® High Pressure Dispense Valve - 1153502
(2) Air Line Tubing
(1) Fluid Outlet Tip Adapter
(1) Fluid Inlet Fitting,
(2) Air Input Fitting
(1) Operation Manual
In stock
Only 1 left
SKU
LOC-1153502
TTD10,949.00
PRODUCT DESCRIPTION

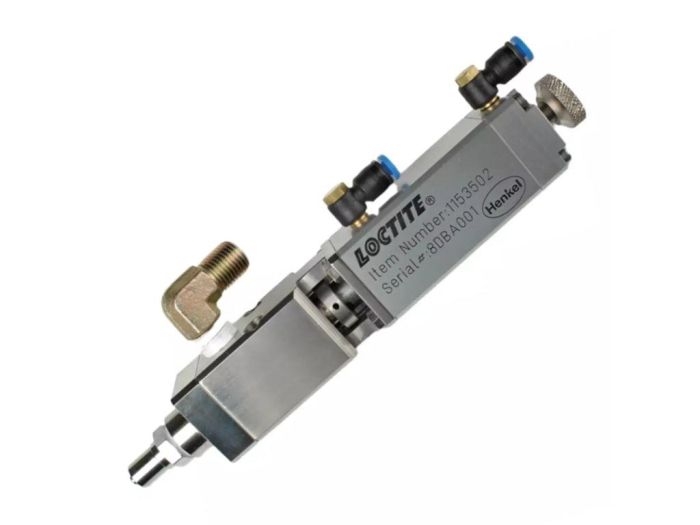

The LOCTITE® High Pressure Dispense Valve is a double-acting, stainless steel dispense valve compatible with silicones, MS polymers, and urethane products. It features suck-back capability and can operate at fluid pressures up to 2,175 psi (150 bar). This valve is recommended for use with the High Pressure 300 ml Benchtop Cartridge Dispenser, sold separately. NOTE: Not for dispensing anaerobic products.
TECHNICAL SPECIFICATIONS
SKU: 1153502
Brand: Loctite
Product category: High viscosity fluid and paste dispense valves
Technologies: Specialties, equipment
Air input pressure, Recommended: 55.0 psi - 85.0 psi
Applications: Dispensing adhesives
Fluid pressure, Recommended: 2175.0 psi
Key characteristics, Recommended: Pressure: high pressure,Stroke adjustment,Viscosity: high to paste viscosity
Used to dispense, Recommended: MS polymers,Silicones,Urethanes
Viscosity, Recommended: 50000.0 mPa·s - 2000000.0 mPa·s
Type: Dispense Valve
Valve Type: High Pressure
Length: 6.22in
Width: 1.18in
Depth: 1.18in
Hose Type: Air Hose
Connection Size: BSPT 1/4-19
Material: Stainless Steel
Item Weight: 1.76lbs
Shipping Weight: 2lbs
The LOCTITE® High Pressure Dispense Valve is a double-acting, stainless steel dispense valve compatible with silicones, MS polymers, and urethane products. It features suck-back capability and can operate at fluid pressures up to 2,175 psi (150 bar). This valve is recommended for use with the High Pressure 300 ml Benchtop Cartridge Dispenser, sold separately. NOTE: Not for dispensing anaerobic products.
TECHNICAL SPECIFICATIONS
SKU: 1153502
Brand: Loctite
Product category: High viscosity fluid and paste dispense valves
Technologies: Specialties, equipment
Air input pressure, Recommended: 55.0 psi - 85.0 psi
Applications: Dispensing adhesives
Fluid pressure, Recommended: 2175.0 psi
Key characteristics, Recommended: Pressure: high pressure,Stroke adjustment,Viscosity: high to paste viscosity
Used to dispense, Recommended: MS polymers,Silicones,Urethanes
Viscosity, Recommended: 50000.0 mPa·s - 2000000.0 mPa·s
Type: Dispense Valve
Valve Type: High Pressure
Length: 6.22in
Width: 1.18in
Depth: 1.18in
Hose Type: Air Hose
Connection Size: BSPT 1/4-19
Material: Stainless Steel
Item Weight: 1.76lbs
Shipping Weight: 2lbs
| SKU | LOC-1153502 |
|---|---|
| Weight | 2.000000 |
| Manufacturer | LOCTITE |
