DISPENSER DIAL-A-SEAL TO DISPENSE HIGH VISCOSIT
PRODUCT FEATURES
Dispenser is fed directly from a 50 ml tube, 250 ml tube or 1 liter bottle
A quick turn turret is equipped with cavities for 1?16, 1?8, ¼, 3?8, ½, ¾ and 1 in. male pipe threads
Uniform adhesive application with adjustable dispense volume (up to 0.7 ml per shot)
Suggested settings for each diameter fitting are preprinted on unit
INCLUDES
(1) LOCTITE® Dial-a-Seal® Dispenser - 209688
(1) Dial-A-Seal unit
(1) Stand for 1 liter bottle
(1) Empty 1 liter bottle with cap
(1) Empty 50 ml tube with dispense cap
(1) Tube vent
(2) Elbow fittings
(1) Feed tube
(1) Tube adapter
(1) 50 ml tube adapter
(1) Operating manual
Dispenser is fed directly from a 50 ml tube, 250 ml tube or 1 liter bottle
A quick turn turret is equipped with cavities for 1?16, 1?8, ¼, 3?8, ½, ¾ and 1 in. male pipe threads
Uniform adhesive application with adjustable dispense volume (up to 0.7 ml per shot)
Suggested settings for each diameter fitting are preprinted on unit
INCLUDES
(1) LOCTITE® Dial-a-Seal® Dispenser - 209688
(1) Dial-A-Seal unit
(1) Stand for 1 liter bottle
(1) Empty 1 liter bottle with cap
(1) Empty 50 ml tube with dispense cap
(1) Tube vent
(2) Elbow fittings
(1) Feed tube
(1) Tube adapter
(1) 50 ml tube adapter
(1) Operating manual
In stock
Only 1 left
SKU
LOC-209688
TTD23,179.01
PRODUCT DESCRIPTION

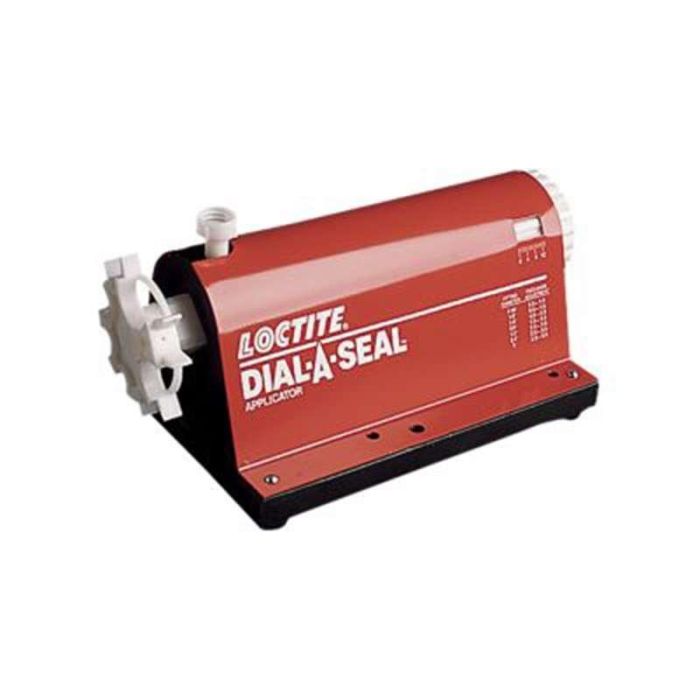

The LOCTITE® Dial-A-Seal® Dispenser is a touch-actuated, all pneumatic applicator. The Dial-A-Seal accepts 50 ml, 250 ml or 1 liter wide mouth bottles. The product dispense quantity can be adjusted with the rear adjustment knob. The suggested setting for each diameter fitting is given in a table on the unit's casing. This system includes a stand for holding 1 liter bottles and one empty 1 liter bottle and is recommended for applying Pipe Sealant with PTFE, Stainless Steel PTFE, Vibra-Seal®, and Anti-Seize.
TECHNICAL SPECIFICATIONS
SKU: 209688
Brand: Loctite
Product category: Anaerobic dispense systems
Technologies: Specialties, equipment
Applications: Dispensing adhesives
Used to dispense, Recommended: Anti-seize lubricants,Thread sealants
Viscosity, Recommended: 0.0 mPa·s - 30000.0 mPa·s
Dimensions: 12.5 x 7.6 x 16.5in
Length: 12.5in
Width: 7.6in
Height: 16.5in
Product Type: Dial A Seal Dispensing System
Color: Red
Primary Color: Red
Air Pressure Range: 60psi
Item Weight: 16.05lbs
Shipping Weight: 18lbs
The LOCTITE® Dial-A-Seal® Dispenser is a touch-actuated, all pneumatic applicator. The Dial-A-Seal accepts 50 ml, 250 ml or 1 liter wide mouth bottles. The product dispense quantity can be adjusted with the rear adjustment knob. The suggested setting for each diameter fitting is given in a table on the unit's casing. This system includes a stand for holding 1 liter bottles and one empty 1 liter bottle and is recommended for applying Pipe Sealant with PTFE, Stainless Steel PTFE, Vibra-Seal®, and Anti-Seize.
TECHNICAL SPECIFICATIONS
SKU: 209688
Brand: Loctite
Product category: Anaerobic dispense systems
Technologies: Specialties, equipment
Applications: Dispensing adhesives
Used to dispense, Recommended: Anti-seize lubricants,Thread sealants
Viscosity, Recommended: 0.0 mPa·s - 30000.0 mPa·s
Dimensions: 12.5 x 7.6 x 16.5in
Length: 12.5in
Width: 7.6in
Height: 16.5in
Product Type: Dial A Seal Dispensing System
Color: Red
Primary Color: Red
Air Pressure Range: 60psi
Item Weight: 16.05lbs
Shipping Weight: 18lbs
| SKU | LOC-209688 |
|---|---|
| Weight | 18.000000 |
| Manufacturer | LOCTITE |
