DRILL 1/2"HAM+IMP+FAN 18V. DHP487+DTD157+DCF203 1.5A

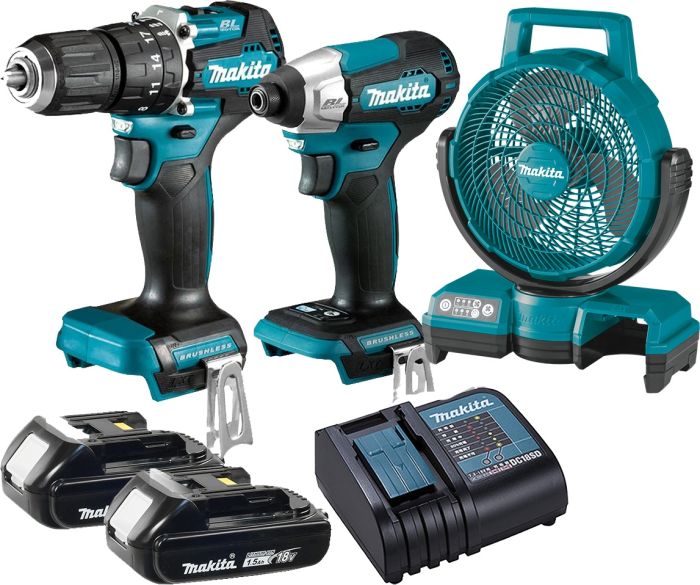

INCLUDES

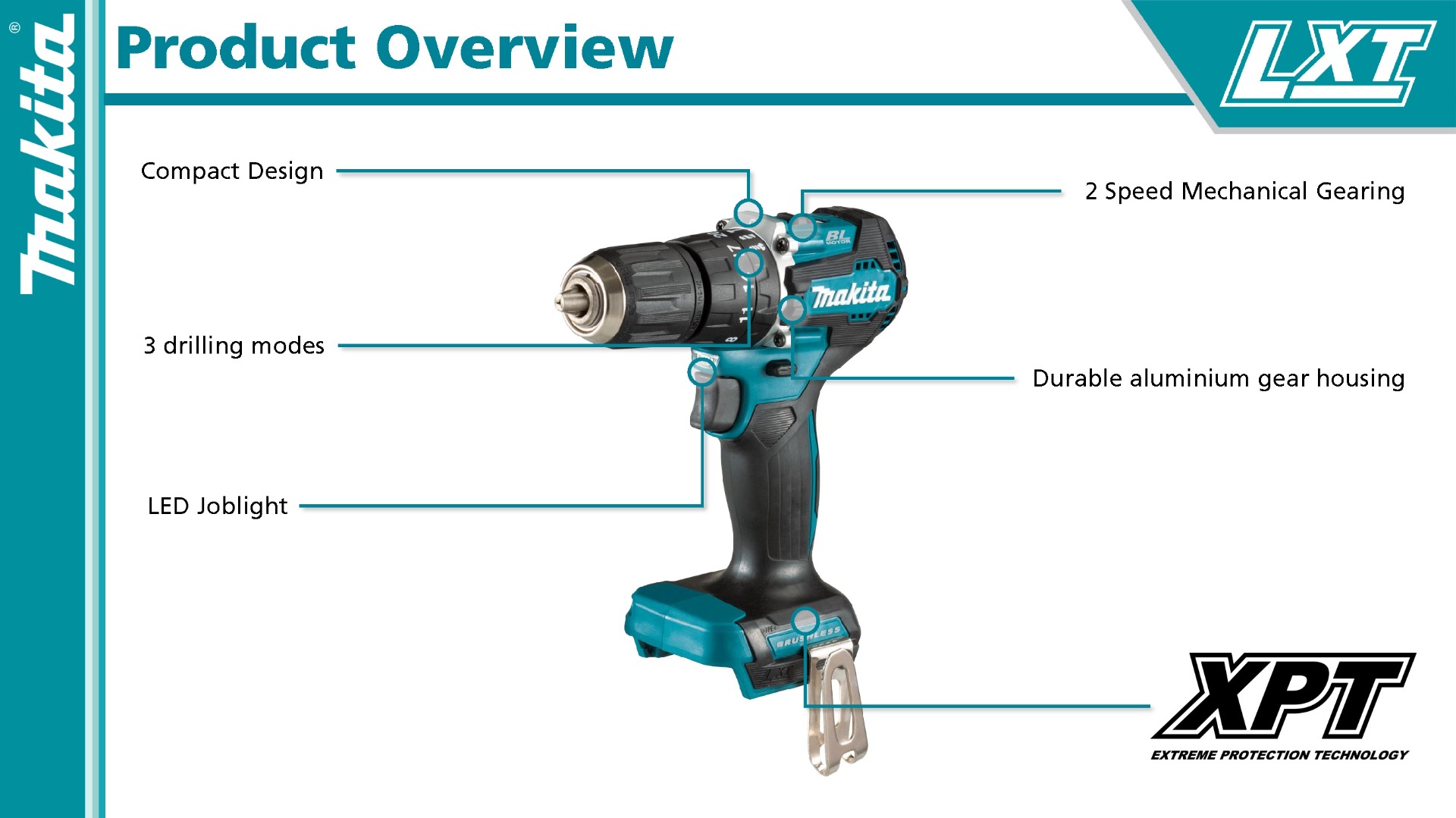

(1) 18V LXT® Sub-Compact Brushless 1/2" Hammer Driver-Drill (DHP487Z)

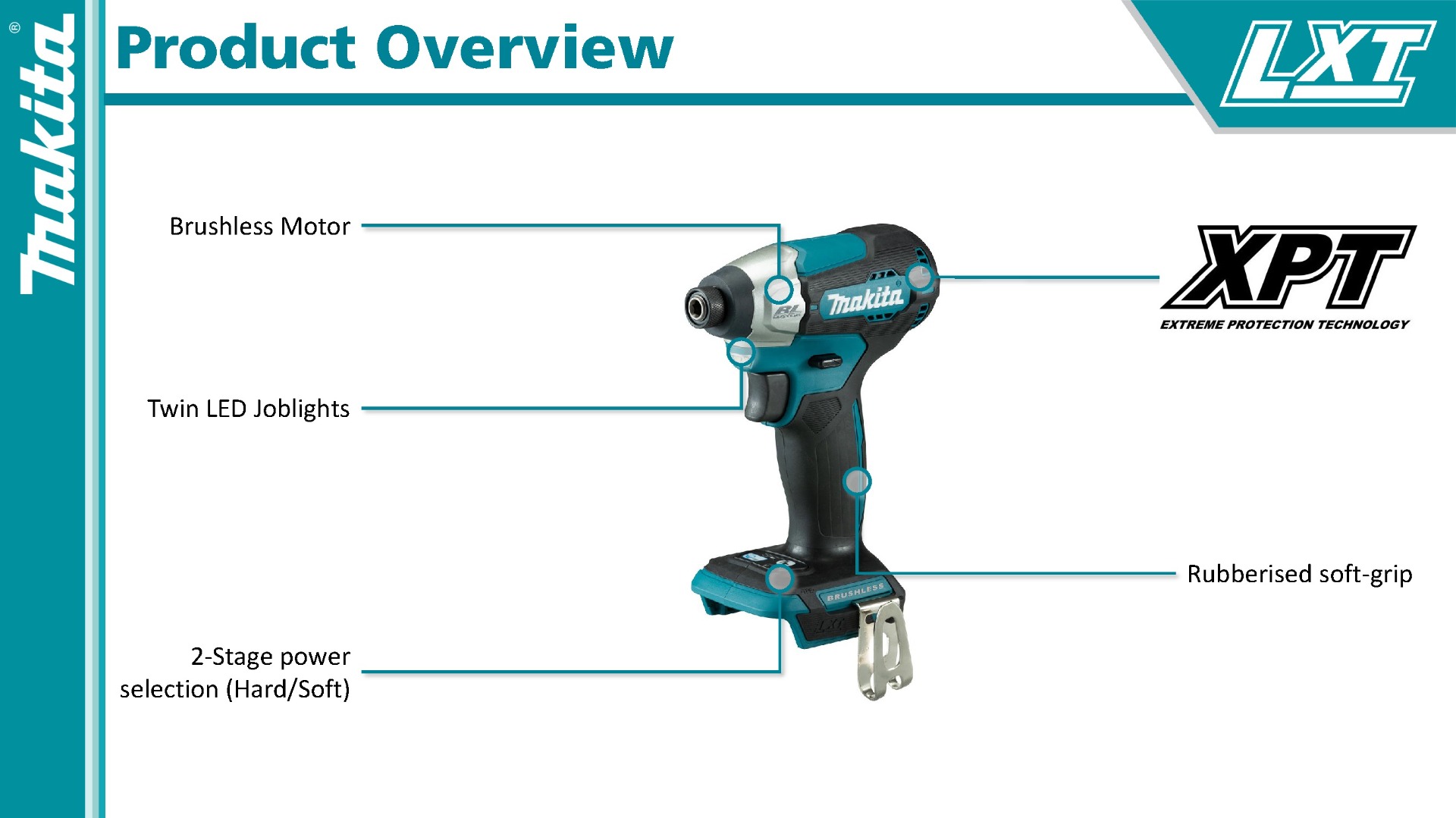

(1) 18V LXT® Sub-Compact Brushless Impact Driver (DTD157Z)
(2) 18V LXT® Lithium-Ion Compact 1.5Ah Battery (BL1815)
(1) 18V LXT® Lithium-Ion Standard Charger (DC18SD)
(1) DCF203Z 18V LXT Lithium-Ion Cordless/Corded 9-1/4" Fan, Tool Only

PRODUCT FEATURES

DLX2414YX7 2 tool Brushless combo kit DHP487Z 1/2"Hammer-Drill+DTD152Z Impact Driver, 2 x1.5AH
Hammer Driver-Drill weighs only 2.9 lbs. with battery for reduced operator fatigue
Compact and ergonomic design at only 6-15/16" long
Mechanical variable 2-speed transmission (0-500 & 0-1,700 RPM) (0-7,500 & 0-25,500 BPM) for a wide range of drilling, fastening and hammer drilling applications
BL™ Brushless Motor delivers 350 in.lbs. of Max Torque
Impact Driver weighs only 2.6 lbs. with battery for reduced operator fatigue
Compact and ergonomic design at only 5-5/16" long
Assist Mode (A-mode) feature helps eliminate "screw cam-out" and "cross threading" by driving at low speed until impact begins
Variable speed (0-1,300/0-3,000 RPM & 0-1,600/0-3,900 IPM) for a wide range of fastening applications
BL™ Brushless Motor delivers 1,240 in.lbs. of Max Torque in an ultra compact design
Ideal for work in tight spaces
Efficient BL™ Brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
The BL™ Brushless Motor eliminates carbon brushes, enabling the BL Motor to run cooler and more efficiently for longer life
The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions

DCF203Z 18V LXT Lithium-Ion Cordless/Corded 9-1/4" Fan, Tool Only
Three speed settings (High/Medium/Low) and Oscillation selector for optimal air velocity and control
Designed for reduced wind noise level for quiet operation
Automatically oscillates 45 right and left
Manually tilts 90 up and 45 down for convenient redirection of airflow
3-stage automatic timer with 1, 2, and 4 hour power-off selection
Handle for easy mobility
Up to 19 hours of continuous run time in Low speed with 18V LXT 6.0Ah Battery BL1860B (battery not included)
Up to 15.5 hours of continuous run time in Low speed with 18V LXT 5.0Ah Battery BL1850B (battery not included)
Up to 9.5 hours of continuous run time in Medium speed with 18V LXT 5.0Ah Battery BL1850B (battery not included)
Up to 6 hours of continuous run time in High speed with 18V LXT 5.0Ah Battery BL1850B (battery not included)
AC adapter included

PRODUCT DESCRIPTION

DLX2414YX7 2 tool Brushless combo kit DHP487Z 1/2"Hammer-Drill+DTD152Z Impact Driver, 2 x1.5AH
Makita created a new class in cordless with 18V LXT® Sub-Compact tools. Makita Sub-Compact gives users 12V handling with 18V performance, and compatibility with the world’s largest 18V cordless tool system. The DLX2414YX7 is a combo kit with two 18V Sub-Compact solutions for drilling, driving and fastening.

The kit includes an ultra-compact 2-speed brushless hammer driver-drill with two speed settings that weighs only 2.8 lbs. The percussive hammer-drill setting allows for drilling into masonry and brick. The variable speed brushless impact driver has two speed settings and weighs only 2.6 lbs. For more efficient fastening, the impact driver features Assist Mode (A-mode) which helps eliminate “screw cam-out” and "cross threading" by driving at low speed until tightening begins. The kit includes two 18V LXT® Compact 1.5Ah batteries, and each reach a full charge in only 15 minutes on the efficient Rapid Optimum Charger – the fastest charge-time in the category – for less downtime and increased productivity.

DCF203Z 18V LXT Lithium-Ion Cordless/Corded 9-1/4" Fan, Tool Only
The Makita 18V LXT Lithium-Ion Cordless Fan (model DCF203Z) is a powerful and portable solution for painters, contractors, and more.

The DCF203Z has three settings for optimal air velocity control. It can be powered by Makita 18V LXT Lithium-Ion Batteries or an AC adapter. The fan automatically oscillates 45 right and left and manually tilts 90 up and 45 down for convenience redirection of air flow.

TECHNICAL SPECIFICATIONS

DHP487Z
Capacity (steel) : 1/2"
Capacity (wood) : 1-7/16"
Capacity (masonry) : 1/2"
No Load Speed (var. 2 spd) : 0 - 500 / 0 - 1,700 RPM
Maximum Torque (in.lbs./N•m) : 350 in.lbs./40N•m
Overall Length : 6-1/2"
Net Weight (with battery) : 3.1 lbs.
Form Factor (LXT) : Sub-Compact
Motor Type : Brushless

DTD157Z
Hex Shank : 1/4"
Speed power selection : 2
No Load Speed (var. 2 spd) : 0 - 1,300 / 0 - 3,000 RPM
Impacts Per Minute (var. 2 spd.) : 0 - 2,000 / 0 - 4,100 IPM
Maximum Torque (in.lbs./N•m) : 1,240 in.lbs./140N•m
Overall Length : 5-1/4"
Net Weight (with battery) : 2.6 lbs.
Form Factor (LXT) : Sub-Compact
Motor Type : Brushless

DCF203Z
Max. Air Volume : 290 CFM
Run Time (max. in hours) : 19
AC Adapter Included : Yes
Speed Settings : 3
Decibel Rating : 48 dB(A)
Overall Length : 5-1/2"
Voltage : 18V
Dimensions (LxWxH) : 5-1/2" x 13" x 17-5/8"
Battery : 18V LXT Lithium-Ion
Power Type : Corded and Cordless Operation
Net Weight (without battery) : 4.2 lbs.
Net Weight (with battery, sold separately) : 5.6 lbs.
Form Factor (LXT) : 18V LXT
Motor Type : Brushed

Voltage : 18V
Battery : 18V LXT® Compact Lithium-Ion
Battery Capacity (Ah) : 1.5Ah
Form Factor (LXT) : Sub-Compact
Battery Charge Time (minutes) : 15
Motor Type : Brushless
Shipping Weight : 20 lbs.
