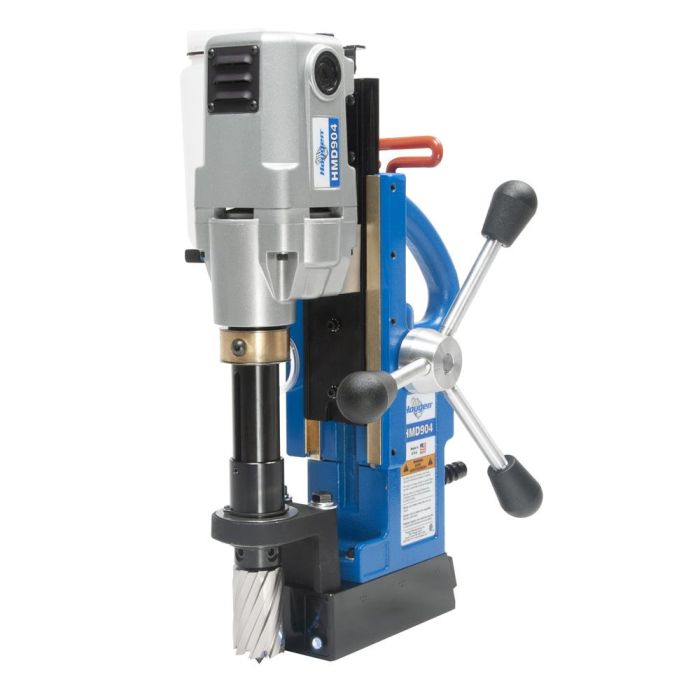

DRILL MAG 8A 115V 1.5"MAX 1.5"X2"MAXD 3/4"SH +BOTTL
PRODUCT FEATURES
Large 1-1/2" x 2" capacity
Hidden motor cord
Ergonomic housing
Increased safety with less maintenance
Pilot light
Two stage magnet - 30% power increase when motor is turned on
Positive slug ejection
Slot Drive arbor for more accuracy and quicker change out of accessories
Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more...
Feed handles quickly change from side to side
Lift detector safety system
Rear mounted controls
Gravity feed coolant system (HMD904 w/ coolant bottle)
Carrying case included (09202)
INCLUDES
(1) Hougen HMD904 Magnetic Drill Coolant - 115V 0904102
Large 1-1/2" x 2" capacity
Hidden motor cord
Ergonomic housing
Increased safety with less maintenance
Pilot light
Two stage magnet - 30% power increase when motor is turned on
Positive slug ejection
Slot Drive arbor for more accuracy and quicker change out of accessories
Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more...
Feed handles quickly change from side to side
Lift detector safety system
Rear mounted controls
Gravity feed coolant system (HMD904 w/ coolant bottle)
Carrying case included (09202)
INCLUDES
(1) Hougen HMD904 Magnetic Drill Coolant - 115V 0904102
In stock
Only 1 left
SKU
HOUG-HMD904102
PRODUCT DESCRIPTION
All the same great features of the HMD904 with an added layer of safety and even more versatility. The permanent magnet easily operates with an on/off knob and grips to the steel without the need for electricity. Plus the unique structure of the magnet allows it to be used for pipe drilling without an adapter. The HMD904 can use all the same accessories as the other HMD904's and is made in the USA.
TECHNICAL SPECIFICATIONS
SKU: HMD904
Brand: Hougen
Electrical System: 115V, 50/60 Hz - 9A, 1035W/ 230V, 50/60 Hz - 4.5A, 1035W
Motor: 8A (115V), 4 (230V), 450 RPM
Diameter: 7/16"- 1-1/2" (12mm - 38mm)
Depth: 2" (50mm)
Cutter/Mount: "12,000-Series" & Copperhead™ Carbide cutters, 3/4" shank
Dimensions: 18" H x 7-3/4" W x 11-5/8" L/(457mm H x 197mm W x 295mm L)
Swivel Area: 1" W x 3/4" L/ (25mm W x 19mm L)
Base: 3-1/8" W x 6-9/16" L (79mm W x 167mm L)
1" Plate (25mm): Dead Lift 1750 lb. (794 kg) Drillpoint Breakaway 995 lb. (452 kg)
3/8" Plate (9.5mm): 1310 lb. (594 kg) 710 lb. (322 kg)
1" Plate (25mm): Dead Lift 1340 lb. (608 kg) Drillpoint Breakaway For. 695 lb. (315 kg) Back 835 lb. (379 kg)
3/8" Plate (9.5mm): 1015 lb. (460 kg): For. 503 lb. (228 kg) Back 605 (274 kg)
Item Weight: 30 lb. (13.6 kg) Shipping 45lbs (20 kg)
Item Weight (Swivel): 33 lb. (15 kg) Shipping 47lbs (20.9 kg)
Shipping Dimensions: 18 x 20 x 9" (45.72 x 50.8 x 22.9 cm)
All the same great features of the HMD904 with an added layer of safety and even more versatility. The permanent magnet easily operates with an on/off knob and grips to the steel without the need for electricity. Plus the unique structure of the magnet allows it to be used for pipe drilling without an adapter. The HMD904 can use all the same accessories as the other HMD904's and is made in the USA.
TECHNICAL SPECIFICATIONS
SKU: HMD904
Brand: Hougen
Electrical System: 115V, 50/60 Hz - 9A, 1035W/ 230V, 50/60 Hz - 4.5A, 1035W
Motor: 8A (115V), 4 (230V), 450 RPM
Diameter: 7/16"- 1-1/2" (12mm - 38mm)
Depth: 2" (50mm)
Cutter/Mount: "12,000-Series" & Copperhead™ Carbide cutters, 3/4" shank
Dimensions: 18" H x 7-3/4" W x 11-5/8" L/(457mm H x 197mm W x 295mm L)
Swivel Area: 1" W x 3/4" L/ (25mm W x 19mm L)
Base: 3-1/8" W x 6-9/16" L (79mm W x 167mm L)
1" Plate (25mm): Dead Lift 1750 lb. (794 kg) Drillpoint Breakaway 995 lb. (452 kg)
3/8" Plate (9.5mm): 1310 lb. (594 kg) 710 lb. (322 kg)
1" Plate (25mm): Dead Lift 1340 lb. (608 kg) Drillpoint Breakaway For. 695 lb. (315 kg) Back 835 lb. (379 kg)
3/8" Plate (9.5mm): 1015 lb. (460 kg): For. 503 lb. (228 kg) Back 605 (274 kg)
Item Weight: 30 lb. (13.6 kg) Shipping 45lbs (20 kg)
Item Weight (Swivel): 33 lb. (15 kg) Shipping 47lbs (20.9 kg)
Shipping Dimensions: 18 x 20 x 9" (45.72 x 50.8 x 22.9 cm)
| SKU | HOUG-HMD904102 |
|---|---|
| Weight | 45.000000 |
| Manufacturer | HOUGEN |
