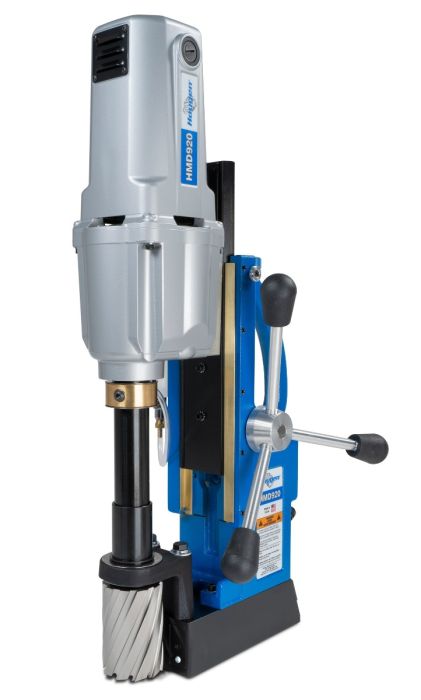

DRILL MAGNT 3"L 3SPD 120V FIXED 2-3/8"14A MAGNETC
PRODUCT FEATURES
Powerful high torque Hougen motor and gears.
Three speed gear box - 250 / 450 / 700 RPM.
Pilot light for low light conditions and greater hole accuracy.
Two stage magnet. Engages full power only when motor is turned on which increases magnet life.
Available with or without the swivel base.
Positive slug ejection.
Many accessories are available to turn your drill into a portable machine shop including: drill chucks, tapping, #2 Morse Taper Adapter, and more...
Feed handles quickly change from side to side.
Lift detector safety system.
Gravity fed coolant bottle.
Three speeds allows for the use of both "12,000-Series" and Copperhead Carbide cutters. The correct RPM provides the best tool life, (250 / 450 RPM for HSS Cutters) (700 RPM for Carbide Cutters).
INCLUDES
(1) Hougen HMD920 Portable Magnetic Drill 3" Depth 115V 3-Speed 0920102
(1) Coolant Bottle
In stock
Only 2 left
SKU
HOUG-HMD920102
PRODUCT DESCRIPTION
Tackle the toughest holemaking challenges in the roughest of conditions, with the NEW HMD920 portable magnetic drill. Powerful industrial strength motor for all day every day drilling, plus a three speed gear box to maximize torque, tool life and productivity.
TECHNICAL SPECIFCATIONS
SKU: HMD920102
Brand: Hougen
Electrical System: 115V, 50/60 Hz - 13.5A, 1553W
230V, 50/60 Hz - 6.75A, 1553W
Motor: 12.5A, 1438W (115V), 6.25A, 1438W (230V)
250/450/700 RPM
Diameter: 7/16" - 2-3/8" (12mm - 60mm)
Depth: 3" (76mm)
Cutter/Mount: "12,000-Series" & Copperhead cutters, 3/4" (19mm) shank
Twist Drill Capacity: 3/4" w/ drill chuck
Tapping Capacity: 3/4"-16 UNF w/ tapping unit
Dimensions: 25-15/16" H x 8-3/16" W x 12-13/16" L
(659mm H x 208mm W x 325mm L)
Magnet Base: 3-1/2" W x 7-3/4" L (89mm W x 197mm L)
Magnet 1" Plate (25mm): Dead Lift 2385 lb. (1082 kg) / Drillpoint Breakaway 1290 lb. (585 kg)
Magnet 3/8" Plate (9.5mm): 1635 lb. (742 kg) / 825 lb. (374 kg)
Item Weight: 49lbs. (22.2 kg)
Shipping Weight: 54lbs
| SKU | HOUG-HMD920102 |
|---|---|
| Weight | 20.000000 |
| Manufacturer | HOUGEN |
