FAN BATH EXHAUST 80CFM
PRODUCT FEATURES:
80 CFM airflow for effective bathroom ventilation.
Integrated LED light for convenient bathroom illumination.
1.5 Sones for relatively quiet operation.
Designed for rooms up to approximately 75 sq. ft.
ENERGY STAR 4.1 certified.
Room-side installation allows installation without attic access.
EZDuct connector provides an airtight connection and simplifies installation.
SlideClip grille allows quick installation and easy removal for cleaning.
Modern CleanCover grille provides a seamless ceiling appearance.
Integrated LED light rated at approximately 50,000 hours.
3500K color temperature LED lighting.
Durable 26-gauge galvanized steel housing.
Permanently lubricated motor designed for continuous operation.
4-inch round duct connection.
Housing height of 5¾ inches, suitable for 2" × 6" ceiling construction.
Suitable for installation over bathtubs and showers when connected to a GFCI-protected circuit.
In stock
Only 2 left
SKU
BROAN-BEL8
TTD859.01
INCLUDES:
[1] Exhaust Fan Assembly
[1] LED Light / Grille Assembly
[1] 4" Duct Connector
[1] Damper
[1] Mounting Hardware
PRODUCT DESCRIPTION:

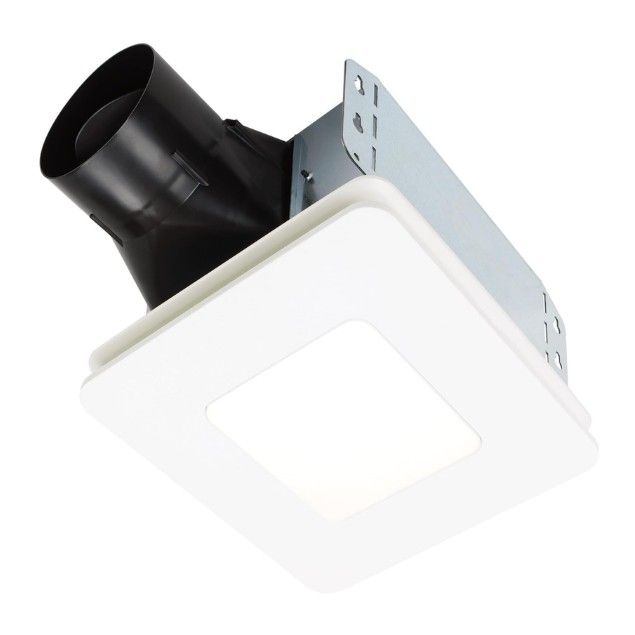

The Broan-NuTone BEL8 80 CFM Bathroom Exhaust Fan is a compact, energy-efficient ventilation solution designed to remove moisture, odors, and pollutants from bathrooms and other small spaces. Its integrated LED light provides additional illumination, while the room-side installation design makes it convenient for both new construction and retrofit applications. With an 80 CFM airflow capacity and 1.5 Sone sound rating, the BEL8 provides effective and relatively quiet ventilation for spaces up to approximately 75 square feet.
APPLICATIONS:
Residential bathrooms
Guest bathrooms
Master bathrooms
Powder rooms
Small commercial washrooms
Utility rooms
Laundry areas
Moisture-prone spaces
Odor and stale-air removal
Bathroom ventilation and lighting
TECHNICAL SPECIFICATIONS:
Brand: BROAN NUTONE
Item Model Number: BEL8
Product Type: Bathroom Exhaust Fan with LED Light
Series: Roomside Series
Fan Type: Single Speed Exhaust Fan
Airflow Capacity: 80 CFM
Sound Level: 1.5 Sones
Recommended Room Size: Up to 75 sq. ft.
Dut Size: 4"
Vloltage: 120V
Rated Amperage: 0.4A
Motor Type: Permanently lubricated AC motor
Motor Operation: Designed for continuous operation
Ligth Type: Integrated LED
LED Color Temperature: 3500K
LED Life: Approximately 50,000 hours
Housing Material: 26-Gauge Galvanized steel
Grille Material: Polymeric
Grille Finish: White
Grille Dimensions: 9-3/4" x 9-3/4"
Housing Dimensions [LxWxH]: 7-1/2" x 7-1/4" x 5-3/4"
Minimum Construction Space: 2" x 6"
Installation Type: Ceiling/Roomside Installation
Humidity Sensing: No
Motion Sensing: No
Night Light: No
Energy Star Certified: Yes
HVI Certified: Yes
UL Listed: Yes on current U.S product page
Tub/Shower Approved: Yes, with GFCI protection
Shipping Weight: 7.7 lbs
| SKU | BROAN-BEL8 |
|---|---|
| Weight | 7.700000 |
| Manufacturer | BROAN NUTONE |
