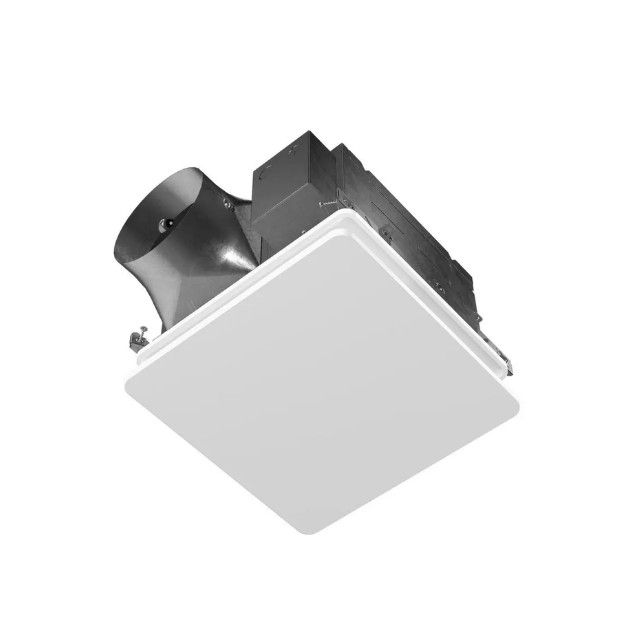

FAN EXHAUST 50-80-110
PRODUCT FEATURES:
Selectable airflow: 50, 80, or 110 CFM.
Designed for continuous-run ventilation.
High-efficiency DC internal-rotor motor.
Quiet operation, with sound ratings from <0.3 to 0.6 Sones depending on airflow and duct conditions.
6-inch duct connection.
ENERGY STAR certified.
TRUECFM technology helps maintain rated airflow under static pressure.
CleanCover grille with floating-mounted positioning.
SlideClip grille for easy attachment and removal.
Adjustable mounting frame for flexible joist positioning.
Designed for 2" × 8" ceiling construction.
Optional humidity and motion-sensing modules are available separately.
Suitable for use over bathtubs or showers when connected to a GFCI-protected circuit.
In stock
Only 1 left
SKU
BROAN-PTE511RK
TTD2,759.00
INCLUDES:
[1] Exhaust Fan Assembly
[1] Mounting Frame
[1] Clean Cover Grille
[1] 6" Duct Connector
[1] Electrical box/wirng assembly
PRODUCT DESCRIPTION:
The Broan-NuTone PTE511RK EVOLVE Premium Exhaust Fan is a versatile ventilation fan offering selectable 50, 80, or 110 CFM airflow. Its efficient DC motor is designed for continuous operation while maintaining low noise levels. The unit is suitable for bathroom ventilation, moisture control, and whole-home ventilation applications, with optional humidity and motion-sensing modules available for additional functionality.
APPLICATIONS:
Bathrooms
Master bathrooms
Guest bathrooms
Large bathrooms
Utility rooms
Laundry areas
Whole-home ventilation
Moisture control
Odor and stale-air removal
Continuous residential ventilation
TECHNICAL SPECIFICATIONS:
Brand: BROAN NUTONE
Item Model Number: PTE511RK
Product Type: Premium Exhaust / Ventilation Fan
Series: EVOLVE Premium
AirFlow Capacity: 50 / 80 / 110 CFM Selectable
Fan Operation: Continuous Run
Sound Level: <0.3 / 0.5 / 0.6 Sones
Dust Size: 6"
Voltage: 120V
Frequency: 60 Hz
Rated Amperage: 0.45A
Motor Type: DC Internal Rotor Motor
Motor Operation: Designed for continuous operation
Housing Material: Galvanized Steel
Grille Material: ABS Polymer
Grille Finish: White
Housing Dimensions [LxWxH]: 11-3/8" x 10-1/2" x 7-1/8"
Grille Dimensions [LxW]: 14" x 13-1/8"
Installation Type: Ceiling-Mounted
Ceiling Construction: 2" x 8"
Roomside Installation: No
Humidity Sensing: No
Motion Sensing: No
Night Light: No
Lighting: No
Energy Star Certified: Yes
UL Listed: Yes
Tub/Shower Approved: Yes, with GFCI Protection
Shipping Weight: 13 lbs
| SKU | BROAN-PTE511RK |
|---|---|
| Weight | 13.000000 |
| Manufacturer | BROAN NUTONE |
