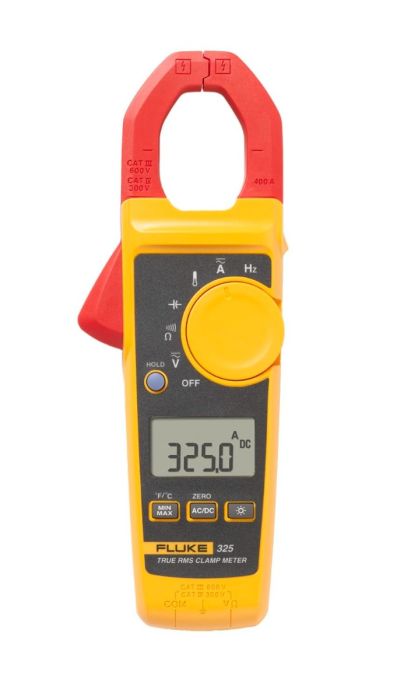

Fluke Model # 325 400A AC/DC 600V AC/DC True RMS Clamp Meter with Temperature
PRODUCT FEATURES
True-rms AC/DC current, voltage, temperature, frequency
Clamp meter, test leads, K-type thermocouple and soft case
Versatile tool performs most front-line measurement tasks
Measures AC/DC current up to 400 A through jaw
AC/DC voltage to 600 V using test leads
Measures frequency from 5 Hz to 500 Hz; resistance to 40 kΩ
Measures temperature from -10 °C to 400 °C with included K-type thermocouple
Min/Max function records important values
INCLUDES
(1) Fluke 325 True RMS Clamp Meter
(1) TL75 Test Leads
(1) Type K Thermocouple
(1) Two AAA Batteries (Installed)
(1) Soft Case
In stock
Only 2 left
SKU
FLUKE-325
TTD5,357.14
PRODUCT DESCRIPTION
The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:
DC current
DC voltage
Temperature
Frequency
You’ll carry fewer tools in your bag and get more work done.
Covers most problems you see day-in, day-out
The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:
TECHNICAL SPECIFICATIONS
SKU: 325
Brand: FLUKE
AC current Range 40.00 A / 400.0 A
Accuracy2% ± 5 digits (45 Hz to 65 Hz)
2.5% ± 5 digits (65 Hz to 400 Hz)
DC current Range 40.00 A / 400.0 A
Accuracy2% ± 5 digits
AC voltage Range 600.0 V
Accuracy1.5% ± 5 digits
DC voltage Range 600.0 V
Accuracy1.0% ± 5 digits
Resistance Range 400.0 Ω / 4000 Ω / 40.00 kΩ
Accuracy1.0% ± 5 digits
Continuity ≤ 30 Ω
Capacitance 0 to 100.0 μF / 100μF to 1000 μF
Frequency 5.0 Hz to 500.0 Hz
AC response True-RMS
Backlight Yes
Data hold Yes
Contact temperature: -10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max: Yes
Size: H x W x D (mm): 207 x 75 x 34
Max wire diameter: 30 mm (600 MCM)
Item Weight: 0.62lbs
Category rating: CAT III 600 V
CAT IV: 300 V
Shipping Weight: 1lb
| SKU | FLUKE-325 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | FLUKE |
