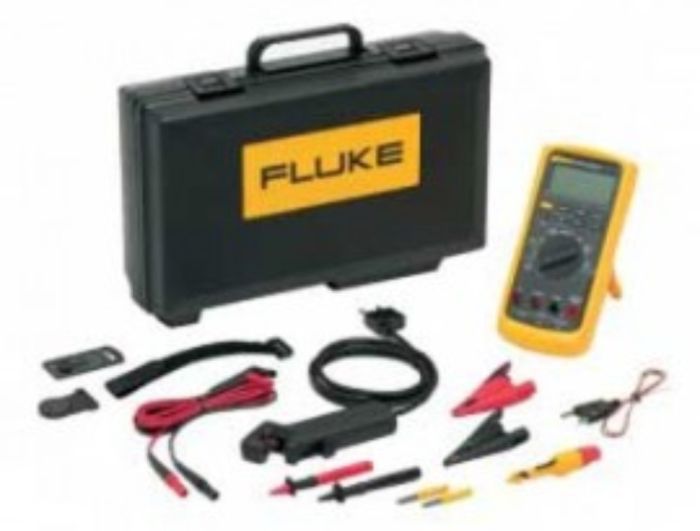

Fluke Model # 88-5/A Automotive Meter Combo Kit

A complete automotive diagnostic package with everything you need in an automotive multimeter

Comes with improved measurement functions, trouble-shooting features, and accuracy to solve more issues on conventional and hybrid vehicles. In addition to having all standard multimeter features such as the ability to measure voltage, current, continuity, and resistance, this deluxe automotive multimeter can also do diode tests and pulse width measurements.

Can take current measurements up to 20 A for 30 seconds and 10 A continuously. The optional magnetic hanger lets you attach the meter to most steel surfaces for easy set-up and viewing. This multimeter is designed to be used in high energy environments like those found on hybrid vehicles.

Features

Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
Magnetic hanger (included with kit) for easy set-up and viewing while freeing your hands for other tasks
Large digit display with bright, two-level backlight
6000 counts, 3¾ digits
Measure up to 1000 V AC and DC
Measure up to 10, 20 A for up to 30 seconds
Frequency to 200 kHz and % duty cycle
Resistance, continuity
RPM measurements with inductive pickup
Millisecond pulse width measurements for fuel injectors
10,000 µF capacitance range for components and motor caps
Min/max-average recording with min/max alert to capture variations automatically
Peak capture to record transients as fast as 250 µs
Relative mode to remove test lead interference from low ohms measurements
Auto and manual ranging for maximum flexibility
Touch Hold to capture stable readings avoiding noisy signals
Large display digits and two-level bright white backlight for increased visibility
Analog bargraph for fast changing or unstable signals
Input Alert provides audible warning against wrong use of input jacks
Improved selectable sleep mode for long battery life
Access door for fast battery changes without opening up the case
"Classic" design with new removable holster with built in test lead and probe storage
10 m? input impedance wont load circuits
0.1% DC accuracy

Measures

Resistance, continuity and diode test
Millisecond pulse width measurements for fuel injectors
Frequency to 200 kHz and % duty cycle
Measure up to 1000 V AC and DC
Measure current up to 10, 20 A for up to 30 seconds
4½ digits for precise measurements
RPM measurements with optional inductive pickup
Temperature measurements with optional temperature probe

Applications

Automotive

Fluke TL224 SureGrip™ Silicone Insulated Test Leads

Features

DMM test leads (red, black) with safety shrouded, standard diameter banana plugs
Right angle connector on one end and straight connector on the other
Reinforced strain relief
4.9' (1.5 m) silicone-insulated wire resists heat and cold
CAT IV 600 V, CAT III 1000 V, 10 A rating; CSA listed

Fluke TP220 SureGrip™ Industrial Test Probes

Features

Sharp, 0.5" (12 mm) stainless steel tip provides reliable contact
Flexible finger barrier improves grip
CAT II 1000 V, 10 A rating

Fluke AC285 SureGrip™ Alligator Clips

Features

One pair (red, black) of large alligator clips with nickel-plated steel jaws
Multi-purpose tooth pattern grips anything from fine gauge wire to a 0.78" (20 mm) bolt
CAT IV 600 V; CAT III 1000 V, 10 A rating

Fluke TPAK ToolPak Magnetic Meter Hanger

Features

Powerful magnetic hanger allows you to hang your meter on any metallic surfaces
9" (228.6 mm) hook and loop strap allows you to loop around pipes
Hook hanger for hanging on non-magnetic surfaces
General purpose hanger allows you to hang your meter on nails, hooks and many other objects
Compatible with many Fluke instrument

Fluke 80BK-A Integrated DMM Temperature Probe

Features

Standard shrouded banana jack
Convenient one piece construction

Fluke RPM80 Inductive Pick-Up/External Trigger

Provides RPM readings

Fluke C800 Hard Carrying Case

Features

Tough polyprophylene case
Accessories and manual compartments
Detachable lid
