GAGE PLASTI .102-.229MM
PRODUCT FEATURES:

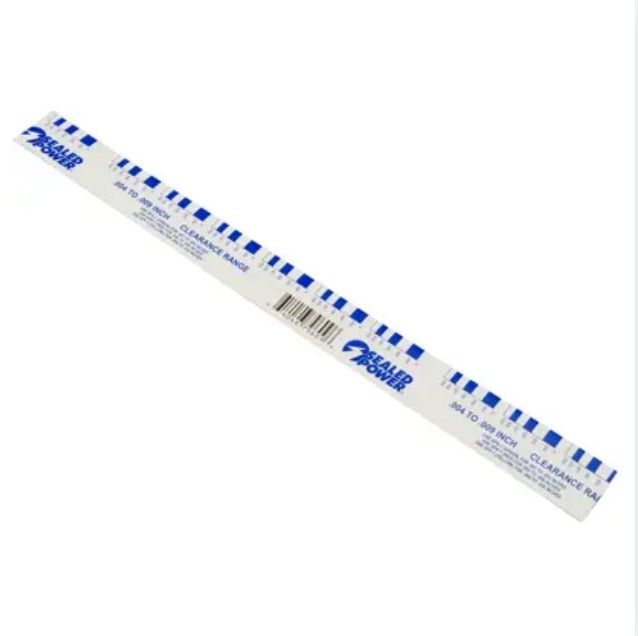

Blue Plastigage designed for measuring engine bearing clearances.
Measures clearances from .004" to .009" (.102–.229 mm).
Provides a quick and accurate final check of oil clearance during engine assembly.
Suitable for checking main bearing and connecting-rod bearing clearances.
Crushes to match the clearance between mating bearing surfaces.
Includes a measurement scale for reading clearance in inches and millimeters.
Color-coded blue for easy identification of its clearance range.
In stock
Only 3 left
SKU
SPOW-SPB-1
TTD843.75
INCLUDES:
[2] Blue Plastigage Clearance Strips, 0.004" - 0.009"
PRODUCT DESCRIPTION:
The Sealed Power SPB-1 Blue Plastigage is a precision clearance-measuring material used during engine assembly to verify the amount of oil clearance between bearings and crankshaft journals. The material is placed between the bearing and journal, the components are torqued to specification, and the resulting flattened strip is compared with the printed scale to determine the clearance. The blue grade measures .004"–.009" (.102–.229 mm) and is suitable for larger bearing clearances.
APPLICATIONS:
Engine rebuilding.
Main bearing clearance checks.
Connecting-rod bearing clearance checks.
Automotive engine repair.
Diesel engine maintenance.
Small-engine rebuilding.
Performance engine assembly.
General mechanical workshops.
TECHNICAL SPECIFICATIONS:
Brand: Klein Tools
Item Model Number: SPB-1
Product Type: Plastigage / Bearing Clearance Gauge
Colour: Blue
Clearance Range: 0.004" - 0.009"
Metric Clearance Range: 0.102 - 0.229 mm
Application: Engine Bearing Clearance Measurement
Primary Use: Main & Connecting-Rod Bearings
Material: Crushable Plastigage Measuring Strip
Strip Length: 12"
Measurement Scale: Inches & Milimeters
Shipping Weight: 1 lb
| SKU | SPOW-SPB-1 |
|---|---|
| Weight | 1.000000 |
