STICK HOT ROUND HANDLE 3-12M
PRODUCT FEATURES

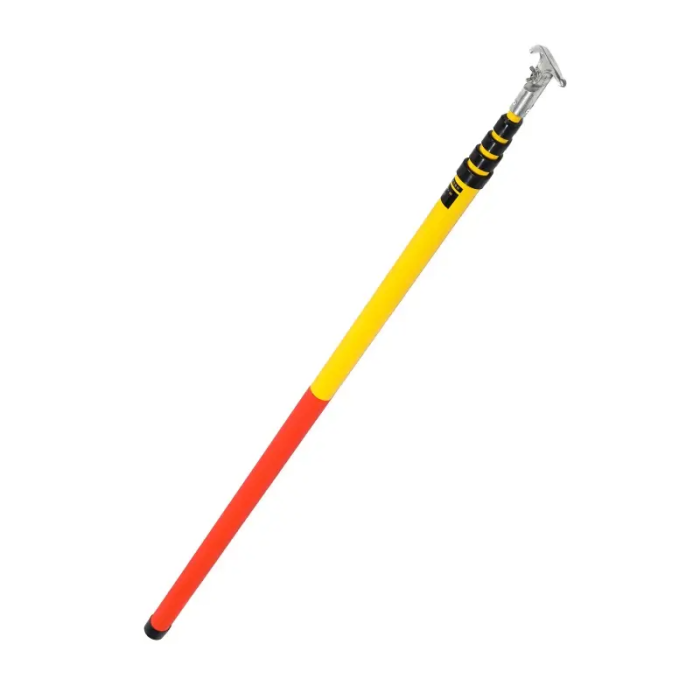

High Voltage Telescopic Fiberglass Electrical Hot Stick
500KV Voltage 7.5M Telescopic Fiberglass Electrical Hot Insulation Stick
The head of the operating lever is one shape. If other head style is required, please make out.
The connection with button.controled. telescopic outside joint, and the insulated rods are 50mm big insulated rod (medium).
Material: epoxy
The style, meterial and structure of this product are followed America technique. It can achieve the European norm.
INCLUDES
(1) High Voltage Fiberglass Telescopic Hot Stick With Length 3-12meters
Out of stock
SKU
HE-HSTICK
PRODUCT DESCRIPTION
This fiberglass telescopic hot stick is suitable for high voltage switch out operating.
The Telescopic Hot Sticks come equipped with a universal spline end and hot stick probe. In addition, the Telescopic Hot Sticks come with the tip lock operational feature standard. The operator can simply lock the end section into second to last section if necessary to obtain maximum flexural/tensile strength from the extended stick to open/close stubborn equipment. Remember when utilizing the tip lock feature the operator will lose approximately 5 foot of extended reach.
The Telescopic Hot Stick is the newest generation of fiberglass hotstick to enter the electrical market. The stick has been engineered, so additional fiberglass has been added where the highest strength is required and removed where it is not required. The result is a telescopic stick able to withstand the rigors of line operations and still offer the utmost in lightweight for portablility. The outside surface texture provides a positive gripping surface even in wet conditions. All operating buttons are CNC machined from very high strength and water resistant engineered solid polymer rod to provide maximum mechanical strength.
Application:
• Round Shape & High Visibility
• Easy Maintenance & reDesign Lock Buttons
• Easy Disassembly & Ergonomic Design
• New Base Cap & More versatile
• Improved Universal Head
Operation Notice
1. Please check out whether the appearances of the operating lever is smooth and has no scratch, whether the hollow tube is blocked up and whether the segments are connected firmly.
2. Please check out the power-frequency withstand voltage test date. The products must carry out regular tests strictly according to DL408-1991 Working Regulation of Power Safety. If the products’ test date is over the expiry date, don’t uses them after you have test them strictly.
3. Please check out carefully whether the label of the high voltage brake pull-rod is clear and whether the name of the manufacturer, manufacturing date, fitted rated voltage are accurate and complete.
4. Please pay special attention to moisture proof toensure the accuracy of the electrical properties and mechanical properties.
TECHNICAL SPECIFICATIONS
SKU: JTHS 500KV
Name: High Voltage Fiberglass Telescopic Hot Stick
Material: Light Epoxy Resin
Length: 7.5m
Withstand Voltage (KV): 500KV
Application: High Voltage Switch Out Operating.
Item Weight: 6.61lbs
Shipping Weight: 7lbs
| SKU | HE-HSTICK |
|---|---|
| Weight | 7.000000 |
| Manufacturer | HIGHEASY |
