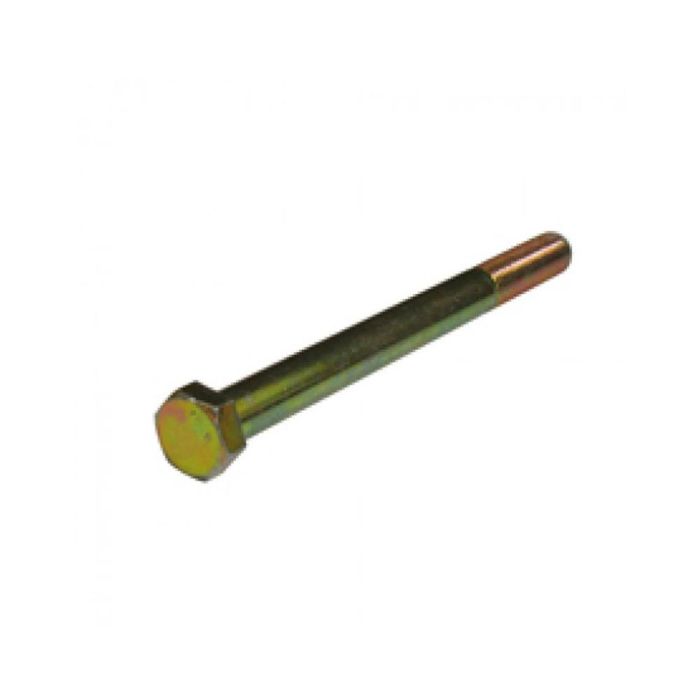

BOLT 7Y5227
Grade: 11.9
Thread Size (mm): M16
Hole Thread Pitch: 2.00
Overall Length (mm): 190
Thread Size (dia x pitch) (mm): M16X2
Bolt Length (mm): 190
Head Height (mm): 10
Grip Length (mm): 146
Drive (mm): 24
Material: STEEL
Bolt Type: Hex Head Bolt
Material Description: Cat Class 11.9. Head Marking - 11.9 (1170 MPa Ultimate Tensile Strength)
Coating: Zinc Flake
Thread Size (mm): M16
Hole Thread Pitch: 2.00
Overall Length (mm): 190
Thread Size (dia x pitch) (mm): M16X2
Bolt Length (mm): 190
Head Height (mm): 10
Grip Length (mm): 146
Drive (mm): 24
Material: STEEL
Bolt Type: Hex Head Bolt
Material Description: Cat Class 11.9. Head Marking - 11.9 (1170 MPa Ultimate Tensile Strength)
Coating: Zinc Flake
In stock
Only 50 left
SKU
CTP-7Y5227
TTD77.85
Cat® fastener parts are designed for specific applications based on size, strength, clamp load, and past performance. This is information other manufacturers do not have. They are selected to last until rebuild or the life of the machine. While it may seem as though non-Cat hardware and fasteners are suitable for your machine, no other company knows your equipment like we do.
Hex head bolts/screws offer the most robust driving feature.
Attributes:
•Cat fasteners are manufactured to precise specifications and are built for durability, reliability, productivity
•Strength & Quality – Fasteners meet or exceed ISO, ASTM, ASME & SAE requirements.
•Cat bolts, nuts, and washers are designed to work together as a system for maximum clamping force.
•Coatings that meet special requirements for different applications (RoHS compliant).
Hex head bolts/screws offer the most robust driving feature.
Attributes:
•Cat fasteners are manufactured to precise specifications and are built for durability, reliability, productivity
•Strength & Quality – Fasteners meet or exceed ISO, ASTM, ASME & SAE requirements.
•Cat bolts, nuts, and washers are designed to work together as a system for maximum clamping force.
•Coatings that meet special requirements for different applications (RoHS compliant).
| SKU | CTP-7Y5227 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | COSTEX TRACTOR PARTS |
