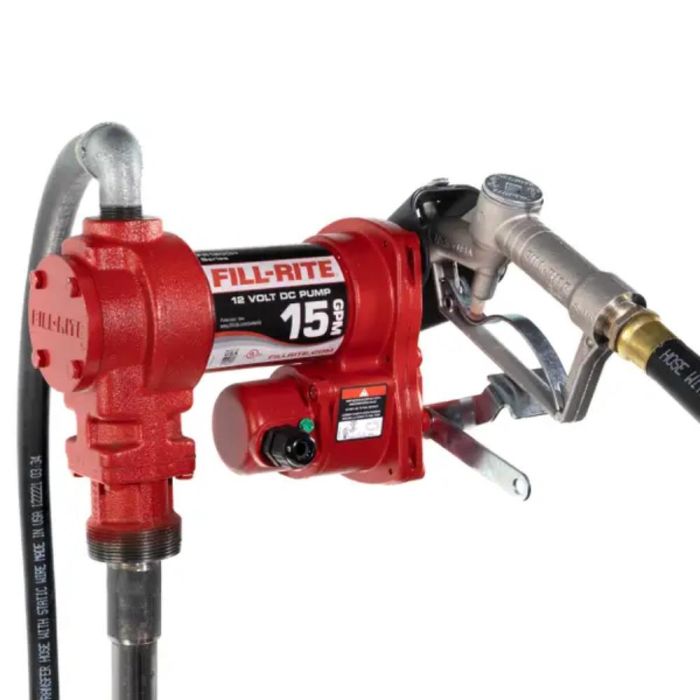

NOZZLE PUMP 12V DC 15GPM FRT-FR1210H

  • Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site

  • Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons

  • Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds

  • Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits

  • Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces

  • Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free

  • Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment

  • Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use

You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.

In stock
Only 10 left
SKU
FRT-FR1210H
Call for Price & Availability

Found this item at a lower price?

Click the icon below to request a price match

Follow our social media pages to stay informed about our offers and events

Max Flowrate

15 GPM / 57 LPM

Power Type

12V DC

Compatible Fluids

Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits

Inlet Size / Connection / Thread

1 " / Female / NPT

Outlet Size / Connection / Thread

0.75 " / Female / NPT

Mounting Size / Thread / Type

2" / NPT / Bung Mount

Duty Cycle (min)

30 min on / 30 min off

Power Source

Electrical

Motor Power (HP)

0.25

Max Current (A)

20 A

Thermal Protection Switch

Yes

Self Priming

Yes

Suction Lift (ft.)

8 '

Dry Vacuum (in. Hg)

5

Operating Temperature Range (°F)

--

Discharge Head (ft)

37 '

Strainer Mesh Size (Micron)

20x20

Max Operating Pressure (PSI)

16

Viscosity Range (cSt)

1 to 4

More Information
SKU FRT-FR1210H
Weight 32.000000
Manufacturer FILL-RITE
