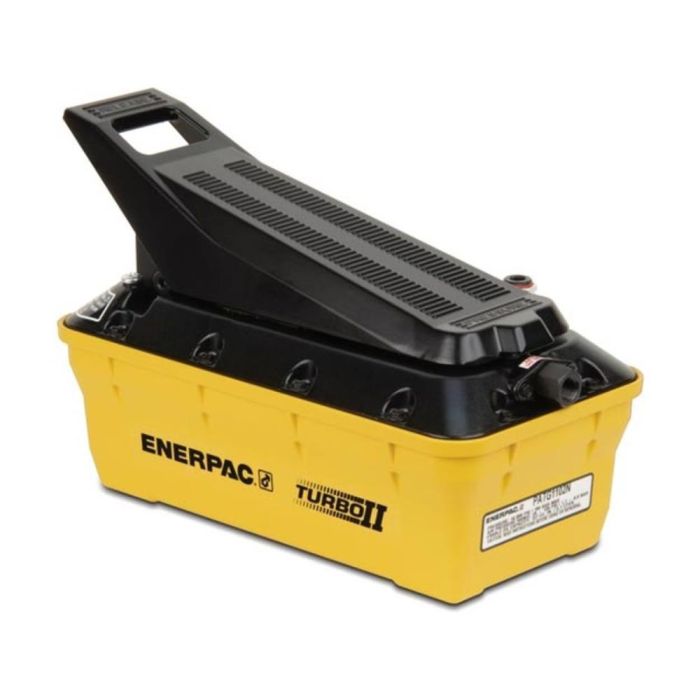

PUMP AIR TURBO II
PATG1102N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 127 in3 Usable Oil, For use with Single-Acting Cylinders
Enerpac PATG Hydraulic Air Pumps are foot operated and part of the Turbo II Air Pump Series. These low flow rate air over hydraulic pumps provide the power and speed needed for single acting tools and simple clamping circuits. PATG pumps are best suited to medium and lower cycle applications.
Enerpac PATG Hydraulic Air Pumps are foot operated and part of the Turbo II Air Pump Series. These low flow rate air over hydraulic pumps provide the power and speed needed for single acting tools and simple clamping circuits. PATG pumps are best suited to medium and lower cycle applications.
In stock
Only 1 left
SKU
E-PATG1102N
Description
Model: PATG1102N | ECCN: EAR99 | Harmonization: 8413500080
Series: PATG | Product Line: Industrial Tools
Enerpac Turbo II Air Over Hydraulic Pumps generate the hydraulic pressure you need using the air pressure you have available. The Air Saver Piston reduces air consumption, and the pump can start at low pressures from 50-125 psi.
Turbo II Air-Hydraulic Pumps suit medium or lower cycle applications. They provide all the power and speed needed for simple clamping circuits and single acting tools. At only 75 dBA, the Turbo II Series helps to keep the noise level to a minimum.
Choose from a range with maximum working pressure of either 5,000 or 10,000psi, and various reservoir capacities from 116 - 462 in3 (2100 - 7500 cm3).
Each PATG pump variant includes a 3-way, 3-position valve for Advance / Hold / Retract functions.
Turbo II Air Over Hydraulic Pump Series:
PATG - Treadle for foot or hand operation
PARG - Pendant Operation
PAMG - Manual lever operated. For double-acting applications
PACG - For remote valve mount. For work holding, 5000 psi (350 bar).
PASG - Includes mount for a single DO3 Valve.
High efficiency cast aluminum air motor for increased life and reduced air consumption
Reinforced heavy-duty reservoir for applications in tough environments
New generation air saver piston with rugged one-piece design reduces air consumption and operating costs
Return-to-tank port for use in remote valve applications
Quiet - only 76dBA with low air consumption of 12 scfm
Operating air pressure: 40-125 psi, enables pump to start at extremely low pressure
Internal pressure relief valve provides overload protection
Model: PATG1102N | ECCN: EAR99 | Harmonization: 8413500080
Series: PATG | Product Line: Industrial Tools
Enerpac Turbo II Air Over Hydraulic Pumps generate the hydraulic pressure you need using the air pressure you have available. The Air Saver Piston reduces air consumption, and the pump can start at low pressures from 50-125 psi.
Turbo II Air-Hydraulic Pumps suit medium or lower cycle applications. They provide all the power and speed needed for simple clamping circuits and single acting tools. At only 75 dBA, the Turbo II Series helps to keep the noise level to a minimum.
Choose from a range with maximum working pressure of either 5,000 or 10,000psi, and various reservoir capacities from 116 - 462 in3 (2100 - 7500 cm3).
Each PATG pump variant includes a 3-way, 3-position valve for Advance / Hold / Retract functions.
Turbo II Air Over Hydraulic Pump Series:
PATG - Treadle for foot or hand operation
PARG - Pendant Operation
PAMG - Manual lever operated. For double-acting applications
PACG - For remote valve mount. For work holding, 5000 psi (350 bar).
PASG - Includes mount for a single DO3 Valve.
High efficiency cast aluminum air motor for increased life and reduced air consumption
Reinforced heavy-duty reservoir for applications in tough environments
New generation air saver piston with rugged one-piece design reduces air consumption and operating costs
Return-to-tank port for use in remote valve applications
Quiet - only 76dBA with low air consumption of 12 scfm
Operating air pressure: 40-125 psi, enables pump to start at extremely low pressure
Internal pressure relief valve provides overload protection
| SKU | E-PATG1102N |
|---|---|
| Weight | 18.000000 |
| Manufacturer | ENERPAC |
