VALVE CONTROL CHECK

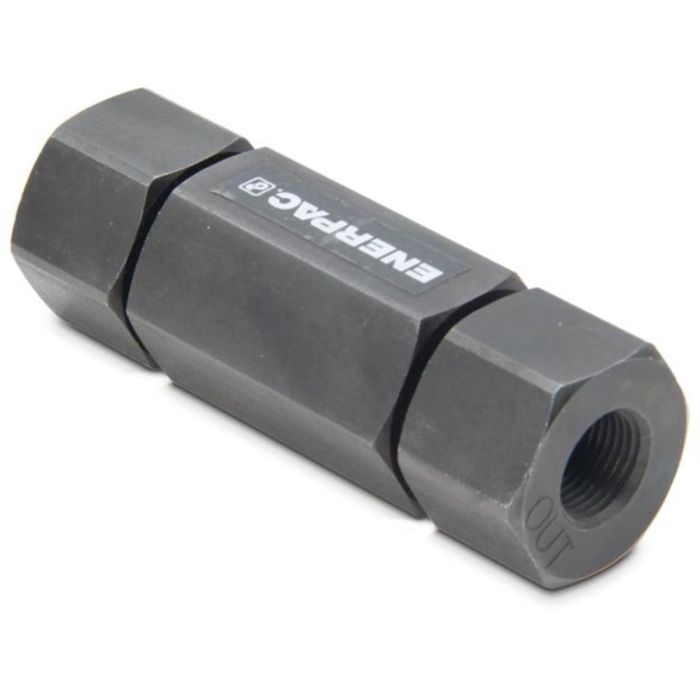

V17, Check Valve
The V17 Hydraulic Check Valve activates with low drop in pressure and is ruggedly built to resist shock. It closes smoothly without pounding and connects to your system using 3/8” NPTF female ports.
The V17 Hydraulic Check Valve activates with low drop in pressure and is ruggedly built to resist shock. It closes smoothly without pounding and connects to your system using 3/8” NPTF female ports.
In stock
Only 5 left
SKU
E-V17
Description
Model: V17 | Series: V | Product Line: Workholding Tools
Check valves are simple hydraulic devices that allow free oil flow in one direction while blocking flow in the opposite direction.
The V17 check valve has a maximum working pressure up to 10,000 psi (700bar) and a maximum oil flow of 1830 in3/min. It is easily installed in a hydraulic system using the ?" NPTF female ports. All valves are painted, coated, or plated for corrosion resistance.
Check valves may also be used as a directional or pressure control in a hydraulic system.
Ruggedly built to resist shock and operate with low pressure drop
Closes smoothly without pounding
Max. oil flow 1830 in3/min
Model: V17 | Series: V | Product Line: Workholding Tools
Check valves are simple hydraulic devices that allow free oil flow in one direction while blocking flow in the opposite direction.
The V17 check valve has a maximum working pressure up to 10,000 psi (700bar) and a maximum oil flow of 1830 in3/min. It is easily installed in a hydraulic system using the ?" NPTF female ports. All valves are painted, coated, or plated for corrosion resistance.
Check valves may also be used as a directional or pressure control in a hydraulic system.
Ruggedly built to resist shock and operate with low pressure drop
Closes smoothly without pounding
Max. oil flow 1830 in3/min
| SKU | E-V17 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | ENERPAC |
