VALVE -MANIFOLD 4 WAY

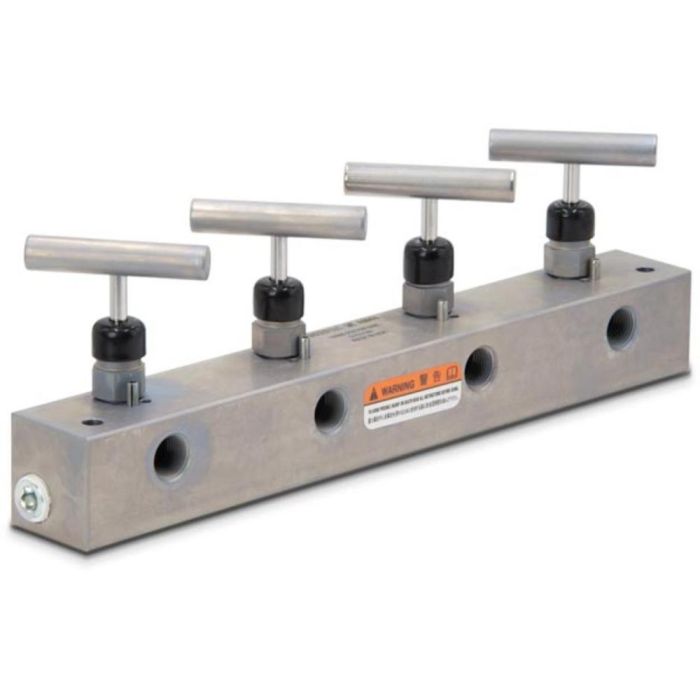

AM41, Split Flow Hydraulic Manifold, 1 inlet, 4 outlet ports
Use this Enerpac AM-Series Hydraulic Manifold as a split-flow valve to control 4 single-acting cylinders simultaneously. Each port is activated manually using the integral needle valve handle.
Use this Enerpac AM-Series Hydraulic Manifold as a split-flow valve to control 4 single-acting cylinders simultaneously. Each port is activated manually using the integral needle valve handle.
In stock
Only 2 left
SKU
E-AM41
Description
Model: AM41 | ECCN: EAR99 | Harmonization: 8481200040
Series: AM | Product Line: Industrial Tools
AM-Series hydraulic manifolds can be used to split the flow from a single inlet port to 2 or 4 outlet ports. The integral needle valve handles on each port are used to switch the flow on or off.
All ports connections are 3/8"-18 NPTF and both models have a maximum operating pressure of up to 10,000 psi (700 bar).
AM21 has 2 outlets
AM41 has 4 outlets
Functions as split-flow valve to control single-acting cylinders simultaneously
Handle used to open and close each port
Easy to connect
Mounting holes on all models
All ports 3/8"-18 NPTF.
Maximum pressure up to 10,000 psi (700 bar)
Model: AM41 | ECCN: EAR99 | Harmonization: 8481200040
Series: AM | Product Line: Industrial Tools
AM-Series hydraulic manifolds can be used to split the flow from a single inlet port to 2 or 4 outlet ports. The integral needle valve handles on each port are used to switch the flow on or off.
All ports connections are 3/8"-18 NPTF and both models have a maximum operating pressure of up to 10,000 psi (700 bar).
AM21 has 2 outlets
AM41 has 4 outlets
Functions as split-flow valve to control single-acting cylinders simultaneously
Handle used to open and close each port
Easy to connect
Mounting holes on all models
All ports 3/8"-18 NPTF.
Maximum pressure up to 10,000 psi (700 bar)
| SKU | E-AM41 |
|---|---|
| Weight | 9.300000 |
| Manufacturer | ENERPAC |
