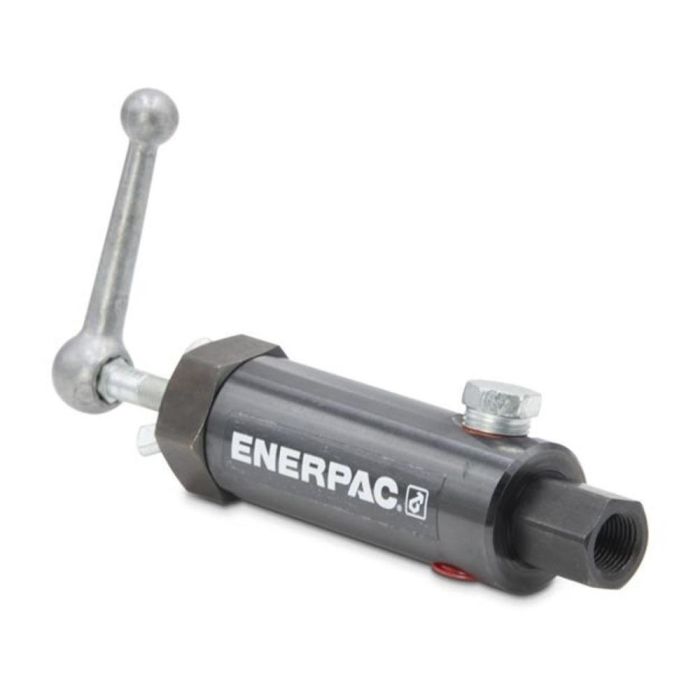

VALVE RELIEF V152
V152, Pressure Relief Valve
The V152 adjustable hydraulic pressure relief valve limits the pressure produced by the pump in a hydraulic circuit. The valves open whenever the preset pressure is reached and can also be used for regulating oil flow.
The V152 adjustable hydraulic pressure relief valve limits the pressure produced by the pump in a hydraulic circuit. The valves open whenever the preset pressure is reached and can also be used for regulating oil flow.
In stock
Only 1 left
SKU
E-V152
Description
Model: V152 | ECCN: EAR99 | Harmonization: 8481100020
Series: V | Product Line: Industrial Tools, Workholding Tools
The V152 and V152VN adjustable hydraulic pressure relief valves are used to limit hydraulic pressure and regulate oil flow.
Easy adjustment is done by simply turning the handle clockwise to increase the pressure. The valves offer repeatability accuracy of ±3% and an adjustment range of 800-10,000 psi (55-700 bar).
The maximum oil flow is 1830 in3 /min (30 l/min) and the valve features NPT or SAE porting to insure against leakage at rated pressure. A 3 ft return line hose kit is included.
The V152NV Nickel plated model option provides enhanced resistance to corrosion. Viton seals in V66NV and V152NV for high temperature applications.
Limits pressure developed by the pump in hydraulic circuit, thus limiting the force imposed on other components
800-10,000 psi adjustment range; ± 3% repeatability
Valve opens whenever preset pressure is reached. To increase pressure setting, turn handle clockwise
Max. oil flow 1830 in3 /min • Includes 3 ft. return line hose kit
Used to automate clamp cycles, prevent pressure loss and provide additional operator and component safety
Regulate oil flow or system pressure
All valves feature NPT or SAE porting to insure against leakage at rated pressure
Can easily be installed in any system
All valves are painted, coated or plated for corrosion resistance
Model: V152 | ECCN: EAR99 | Harmonization: 8481100020
Series: V | Product Line: Industrial Tools, Workholding Tools
The V152 and V152VN adjustable hydraulic pressure relief valves are used to limit hydraulic pressure and regulate oil flow.
Easy adjustment is done by simply turning the handle clockwise to increase the pressure. The valves offer repeatability accuracy of ±3% and an adjustment range of 800-10,000 psi (55-700 bar).
The maximum oil flow is 1830 in3 /min (30 l/min) and the valve features NPT or SAE porting to insure against leakage at rated pressure. A 3 ft return line hose kit is included.
The V152NV Nickel plated model option provides enhanced resistance to corrosion. Viton seals in V66NV and V152NV for high temperature applications.
Limits pressure developed by the pump in hydraulic circuit, thus limiting the force imposed on other components
800-10,000 psi adjustment range; ± 3% repeatability
Valve opens whenever preset pressure is reached. To increase pressure setting, turn handle clockwise
Max. oil flow 1830 in3 /min • Includes 3 ft. return line hose kit
Used to automate clamp cycles, prevent pressure loss and provide additional operator and component safety
Regulate oil flow or system pressure
All valves feature NPT or SAE porting to insure against leakage at rated pressure
Can easily be installed in any system
All valves are painted, coated or plated for corrosion resistance
| SKU | E-V152 |
|---|---|
| Weight | 3.410000 |
| Manufacturer | ENERPAC |
