U SEAL-13/16 X 11/16 X1/8
U12-0.81-SQB is a 800 Polyurethane U-Seal with an ID 0.813 X OD 1.063 X Height 0.125
MFG # 125-00.812SQBUR95, 12500812Q125B, P12-0.81SQB, RL 1-32000, EUPI081106-125B, 8307642

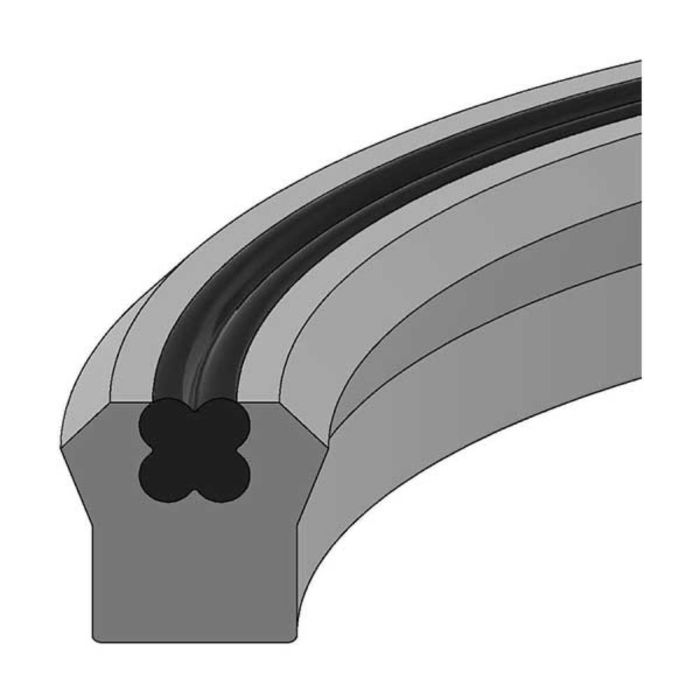

Style 800 U-seals are molded from tough, abrasion-resistant polyurethane. The four lobed expander ring energizes the sealing lips, even at zero pressure, to help prevent 'weeping' when the system is idle.
SEAL INFORMATION
MATERIAL 95A URETHANE
TEMPERATURE RANGE -65° to +220° F
PRESSURE RANGE 0 to 5,000 PSI
SPEED 3 FT/SEC
PART NUMBER (Prefix)(CS) - (Inside Dia) - (Height)
MFG # 125-00.812SQBUR95, 12500812Q125B, P12-0.81SQB, RL 1-32000, EUPI081106-125B, 8307642
Style 800 U-seals are molded from tough, abrasion-resistant polyurethane. The four lobed expander ring energizes the sealing lips, even at zero pressure, to help prevent 'weeping' when the system is idle.
SEAL INFORMATION
MATERIAL 95A URETHANE
TEMPERATURE RANGE -65° to +220° F
PRESSURE RANGE 0 to 5,000 PSI
SPEED 3 FT/SEC
PART NUMBER (Prefix)(CS) - (Inside Dia) - (Height)
In stock
Only 10 left
SKU
HERC-U12081SQB
Product U12-0.81-SQB
Weight 0.00176400 lbs
Cross Section 1/8
A Nom ID 13/16
B Nom OD 1-1/16
C Nom Height 1/8
H Groove Diameter .812
D Groove Width .138
Rod .812
Bore 1.063
G Housing Diameter 1.063
I Piston Diameter 1.062
F Throat Diameter .814
Temperature Range -65° TO +220°F
Pressure Range 0 TO 5,000 PSI
Speed 3 FT/SEC
Weight 0.00176400 lbs
Cross Section 1/8
A Nom ID 13/16
B Nom OD 1-1/16
C Nom Height 1/8
H Groove Diameter .812
D Groove Width .138
Rod .812
Bore 1.063
G Housing Diameter 1.063
I Piston Diameter 1.062
F Throat Diameter .814
Temperature Range -65° TO +220°F
Pressure Range 0 TO 5,000 PSI
Speed 3 FT/SEC
| SKU | HERC-U12081SQB |
|---|---|
| Weight | 1.000000 |
| Manufacturer | HERCULES SEALING PRODUCTS |
