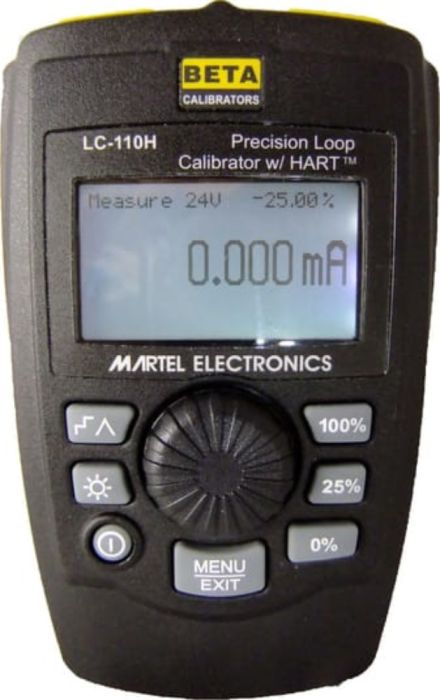

Martel Model # LC-110H Loop Calibrator (Calibration Inclusive)
LC-110H Loop Calibrator with HART Communications& Diagnostics for Smart Instruments includes stackable alligator clip test leads, batteries, NIST traceable calibration certificate, Martel lanyard and user guide
Best in Class Accuracy at 0.01% Reading
Small Rugged design operates on (6) standard AAA batteries
Intuitive interface that features a Quick-Set Knob
24VDC loop power with mA Measure Mode (-25% to 125%)
Resolution of 1µA on mA ranges and 1mV on voltages ranges
Built in selectable 250? Resistor for HART communications
Simple two wire connection for all measurements
Auto Shutdown to conserve battery life (adjustable up to30 minutes)
Variable step & ramp time in seconds
Adjustable span selection (0 to 20mA or 4 to 20mA)
Valve Test (simulate defined mA values with % keys)
Built in HART modem for communication capability to perform the following commands:
- Read Message
- Read Tag, Descriptor, Cal Date
- Read Sensor PV info.
Best in Class Accuracy at 0.01% Reading
Small Rugged design operates on (6) standard AAA batteries
Intuitive interface that features a Quick-Set Knob
24VDC loop power with mA Measure Mode (-25% to 125%)
Resolution of 1µA on mA ranges and 1mV on voltages ranges
Built in selectable 250? Resistor for HART communications
Simple two wire connection for all measurements
Auto Shutdown to conserve battery life (adjustable up to30 minutes)
Variable step & ramp time in seconds
Adjustable span selection (0 to 20mA or 4 to 20mA)
Valve Test (simulate defined mA values with % keys)
Built in HART modem for communication capability to perform the following commands:
- Read Message
- Read Tag, Descriptor, Cal Date
- Read Sensor PV info.
In stock
Only 1 left
SKU
FLUKE-LC-110H
The Martel LC-110 and LC-110H are mA (loop) calibrators designed to take the loop calibrator class to the next level. The new LC-110 series features a user friendly interface with dedicated buttons and a rotary encoder (Quick-Set
Knob). This combination dramatically reduces the time it takes to measure, or source voltage or current and power up a loop. The rugged case is contoured to easily fit a technician’s hand and the large back lit graphics LCD is best in class.
The LC-110H differs from the standard LC-110 in that it incorporates HART communications and supports a select set of the HART universal and common practice commands. This unique feature allows the LC-110H to be used as both a loop calibrator and communication tool.
In the communicator mode the user will be able to read basic device information, perform diagnostic tests, and trim the calibration on most HART enabled transmitters. In the past, this could only be done with a dedicated communicator, high-end multifunction calibrator costing thousands of dollars, or a laptop computer with HART modem. The LC-110H will allow many more technicians to service and support HART devices.
In addition to HART communications, we also gave the user the ability to get information out of the LC-110H. Need to quickly document the parameters of all the HART transmitters in your plant? Just add the BetaLOG HART software/cable to capture and upload to twenty configurations in either (.csv) or (.txt) format.
Martel did not stop there! How about the ability to data log or record data on a particular transmitter for troubleshooting? The data log tool features selectable capture interval from 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions. Each data sample contains the LC110H measurement, all four process variables, and the standard status conditions.
Knob). This combination dramatically reduces the time it takes to measure, or source voltage or current and power up a loop. The rugged case is contoured to easily fit a technician’s hand and the large back lit graphics LCD is best in class.
The LC-110H differs from the standard LC-110 in that it incorporates HART communications and supports a select set of the HART universal and common practice commands. This unique feature allows the LC-110H to be used as both a loop calibrator and communication tool.
In the communicator mode the user will be able to read basic device information, perform diagnostic tests, and trim the calibration on most HART enabled transmitters. In the past, this could only be done with a dedicated communicator, high-end multifunction calibrator costing thousands of dollars, or a laptop computer with HART modem. The LC-110H will allow many more technicians to service and support HART devices.
In addition to HART communications, we also gave the user the ability to get information out of the LC-110H. Need to quickly document the parameters of all the HART transmitters in your plant? Just add the BetaLOG HART software/cable to capture and upload to twenty configurations in either (.csv) or (.txt) format.
Martel did not stop there! How about the ability to data log or record data on a particular transmitter for troubleshooting? The data log tool features selectable capture interval from 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions. Each data sample contains the LC110H measurement, all four process variables, and the standard status conditions.
| SKU | FLUKE-LC-110H |
|---|---|
| Weight | 1.000000 |
| Manufacturer | FLUKE |
