OUTLET CONDUIT 3/4" GRY
PRODUCT FEATURES
40 mil gray PVC exterior coating
2 mil red urethane interior coating
Electrical continuity of the conduit system is maintained across assembled joints
Plastic encapsulated stainless steel screws with retainers built into covers for CRFB sizes 1/2 in through 2 in
V-seal gasket on sizes 1/2 in through 2 in
Sealing sleeves on all conduit openings
10 CRFB sizes from 1/2 through 4 in
INCLUDES

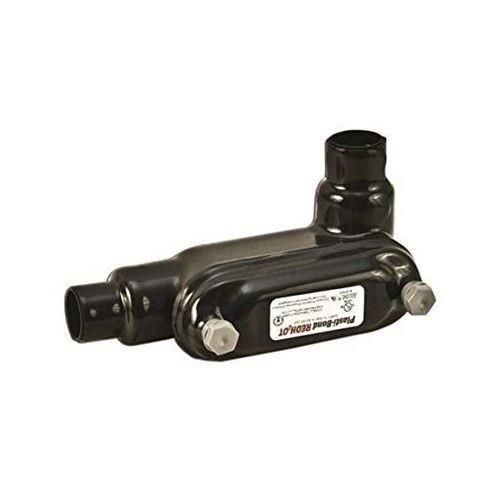

(1) Robroy RedH2OT® PRHLR28 Type LR Conduit Body, 3/4 in Hub, Form 8 Form, Steel, PVC Coated
40 mil gray PVC exterior coating
2 mil red urethane interior coating
Electrical continuity of the conduit system is maintained across assembled joints
Plastic encapsulated stainless steel screws with retainers built into covers for CRFB sizes 1/2 in through 2 in
V-seal gasket on sizes 1/2 in through 2 in
Sealing sleeves on all conduit openings
10 CRFB sizes from 1/2 through 4 in
INCLUDES
(1) Robroy RedH2OT® PRHLR28 Type LR Conduit Body, 3/4 in Hub, Form 8 Form, Steel, PVC Coated
In stock
Only 1 left
SKU
ROBR-PRHLR28
TTD3,009.00
PRODUCT DESCRIPTION
Plasti-Bond RedH2OT® conduit bodies with covers are offered in Form 8 and Form 7 styles, each with numerous configurations to provide a complete coated conduit system. Used to make 90 deg bends, for pull outlets, to provide for taps or splices, to act as a mounting outlet for wiring devices or lighting fixtures, etc. Form 8 style fittings 1/2 to 2 in have an integral V-Seal gasket for superior corrosion protection. Electrical continuity of the conduit system is maintained across assembled joints.
TECHNICAL SPECIFICATIONS
SKU: PRHLR28
Brand: Robroy
Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514A, 514B, 514D, E231035, CSA C22.2 No. 18, C22.2 No. 42
Hub Size: 3/4 in
Type: Type LR
Dimensions: 6.35 in L x 1.73 in W
Material: Steel
Item Weight: 2.09
Shipping Weight: 3lbs
Plasti-Bond RedH2OT® conduit bodies with covers are offered in Form 8 and Form 7 styles, each with numerous configurations to provide a complete coated conduit system. Used to make 90 deg bends, for pull outlets, to provide for taps or splices, to act as a mounting outlet for wiring devices or lighting fixtures, etc. Form 8 style fittings 1/2 to 2 in have an integral V-Seal gasket for superior corrosion protection. Electrical continuity of the conduit system is maintained across assembled joints.
TECHNICAL SPECIFICATIONS
SKU: PRHLR28
Brand: Robroy
Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514A, 514B, 514D, E231035, CSA C22.2 No. 18, C22.2 No. 42
Hub Size: 3/4 in
Type: Type LR
Dimensions: 6.35 in L x 1.73 in W
Material: Steel
Item Weight: 2.09
Shipping Weight: 3lbs
| SKU | ROBR-PRHLR28 |
|---|---|
| Weight | 3.000000 |
| Manufacturer | ROBROY |
