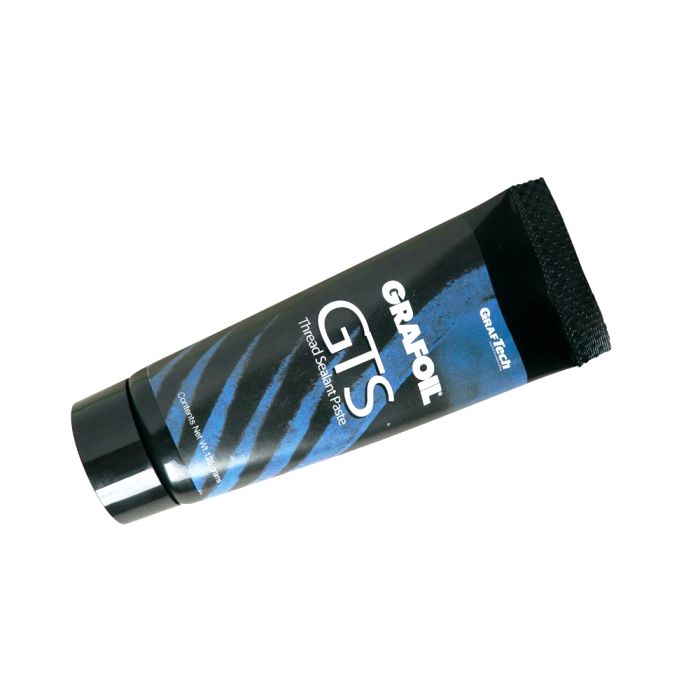

PASTE GTS 4.4OZ TUBE GRAFOIL
PRODUCT FEATURES:
High‐purity paste composed of nuclear grade graphite and a petroleum-based carrier, designed for long-life sealing performance even under very severe conditions.
Meet General Electric nonmetallic material specification D50YP12 Rev 2.
Critical Service application with continuous operating temperature up to 635°C and 16 MPa (2300 psi)
Prevent galling and seizing of threaded connections
Does not hardened or cure with time or temperature.
Outperformed conventional and similar lubricants under severe conditions
In stock
Only 5 left
SKU
GRAF-GTSPASTE44
TTD4,139.00
PRODUCT DESCRIPTION:
The Grafoil GTS Graphite Thread Sealant Paste is a specialist industrial-grade sealing compound meant for critical applications where high temperature, high pressure, and longevity are required. Its graphite-rich formulation offers superior stability under extreme heat, excellent lubricity, and maintains sealing integrity without hardening or becoming brittle. It’s particularly suitable for close-fitting threaded pipe joints of small diameter under demanding service conditions, and also doubles as an effective lubricant or anti-seize for bolt and threaded connections.
TYPICAL PROPERTIES:
Total Halogen ( as Cl): <25 ppm
Leachable Chloride: <10 ppm
Total Chlorine: <10 ppm
Total Fluorine: <25 ppm
Total Nitrite: <1 ppm
Total Nitrate: <10 ppm
Total Sulfur: <150 ppm
Embritting Metals: <250 ppm
APPLICATIONS:
Seal small diameter
Close tolerance threaded pipe joints in critical service
DIRECTIONS FOR USE:
Thoroughly clean threaded surfaces prior to application.
Knead tube well (for best results, remove cap, squeeze out air, place cap back on tightly, then knead well).
Apply paste evenly and fill threads completely. Carefully assemble and tighten the threaded joint.
Close cap tightly after use.
Joint is ready for immediate use
TECHNICAL SPECIFICATIONS:
Brand: Granfoil GTS
Item Model Number: GTSPASTE44
Product Type: Thread Sealant Paste
Form: Paste
Color: Black (Graphite paste)
Service Tempreature Rating: Up to 635 °C / 1175 °F
Service Pressure Rating: Up to 16 MPa (2300 psi)
Storage Temperature: ≤ 38 °C (100 °F)
Typical / Relative Density: 1.5-1.7 (at 21 °C/70 °F)
Shipping Weight: 1 lbs
| SKU | GRAF-GTSPASTE44 |
|---|---|
| Weight | 1.000000 |
