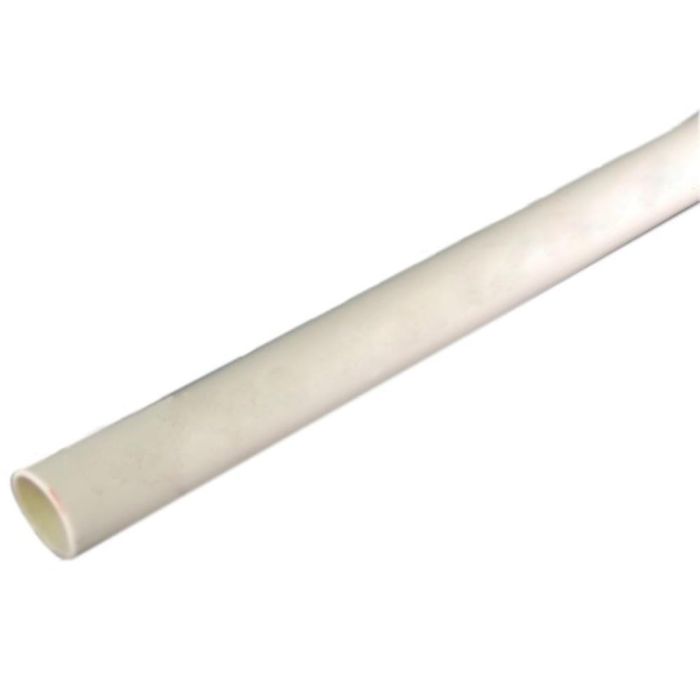

PIPE PVC 1/2 SDR 13.5
PRODUCT FEATURE
PR315 / SDR 13.5 that is used for Pressure applications
Intended for pressure use
For use where systems will not exceed 140° F
Inert to attack by many chemicals
Require no special tools for cutting and to be installed with solvent cement
Conforms to Standards: ASTM D 1784, ASTM D 2241 and NSF 14 and 61
PR315 / SDR 13.5 that is used for Pressure applications
Intended for pressure use
For use where systems will not exceed 140° F
Inert to attack by many chemicals
Require no special tools for cutting and to be installed with solvent cement
Conforms to Standards: ASTM D 1784, ASTM D 2241 and NSF 14 and 61
In stock
Only 86 left
SKU
PVC-P-101006
TTD24.50
INCLUDES
(1) PVC pipe 1/2" x 5.8m SDR 13.5
PRODUCT DESCRIPTION
First and foremost, the use of PVC within water plumbing and pipes is collectively considered to be the largest PVC application by quantity and weight mass. Using PVC for handling water was also one of the first scenarios that implemented PVC into modern society and infrastructure after its discovery. PVC resin can be extrusion molded into various size diameter and length pipes that are intended to convey water supplies to buildings, facilities and equipment. The production and modification of PVC water pipes is a strictly regulated process that is overseen by governmental and independent authorities in North America. Standards set forth by the FDA, ANSI, NSF and the ASTM dictate what materials and/or additives are acceptable for PVC when used in water handling scenarios. Due to regulations, PVC is considered a non toxic, long term safe material option that is suited for potable water, non potable water and process water scenarios. Other service and plumbing codes can control the suitability of PVC pipe for specific water installations. This overall application of PVC is recommended for unheated water delivery only due to the material’s fairly low temperature threshold.
TECHNICAL SPECIFICATIONS
Actual Length: 20 foot
Actual Inner Diameter: 1/2 inch
Actual Outer Diameter: 0.84 inch
Maximum Working Pressure: 200 PSI
Maximum Working Temperature: 140 degrees Fahrenheit
Minimum Working Temperature: 32 degrees Fahrenheit
End Type: Plain
Material: PVC
Wall Thickness: 0.062 inch
Size Diameter Ratio: 13.5
Schedule: SDR 13.5
Nominal Size: 1/2 inch
For Use With: Irrigation, Pressure applications
Listing Agency Standards: NSF 61, ASTM D2241, NSF 14, ASTM D1784
Product Type: PVC Solid Core Pipe
Item Weight: 5.68lbs
Shipping Dimensions: 120.00 H x 0.63 W x 0.63 D
Shipping Weight: 6lbs
(1) PVC pipe 1/2" x 5.8m SDR 13.5
PRODUCT DESCRIPTION
First and foremost, the use of PVC within water plumbing and pipes is collectively considered to be the largest PVC application by quantity and weight mass. Using PVC for handling water was also one of the first scenarios that implemented PVC into modern society and infrastructure after its discovery. PVC resin can be extrusion molded into various size diameter and length pipes that are intended to convey water supplies to buildings, facilities and equipment. The production and modification of PVC water pipes is a strictly regulated process that is overseen by governmental and independent authorities in North America. Standards set forth by the FDA, ANSI, NSF and the ASTM dictate what materials and/or additives are acceptable for PVC when used in water handling scenarios. Due to regulations, PVC is considered a non toxic, long term safe material option that is suited for potable water, non potable water and process water scenarios. Other service and plumbing codes can control the suitability of PVC pipe for specific water installations. This overall application of PVC is recommended for unheated water delivery only due to the material’s fairly low temperature threshold.
TECHNICAL SPECIFICATIONS
Actual Length: 20 foot
Actual Inner Diameter: 1/2 inch
Actual Outer Diameter: 0.84 inch
Maximum Working Pressure: 200 PSI
Maximum Working Temperature: 140 degrees Fahrenheit
Minimum Working Temperature: 32 degrees Fahrenheit
End Type: Plain
Material: PVC
Wall Thickness: 0.062 inch
Size Diameter Ratio: 13.5
Schedule: SDR 13.5
Nominal Size: 1/2 inch
For Use With: Irrigation, Pressure applications
Listing Agency Standards: NSF 61, ASTM D2241, NSF 14, ASTM D1784
Product Type: PVC Solid Core Pipe
Item Weight: 5.68lbs
Shipping Dimensions: 120.00 H x 0.63 W x 0.63 D
Shipping Weight: 6lbs
